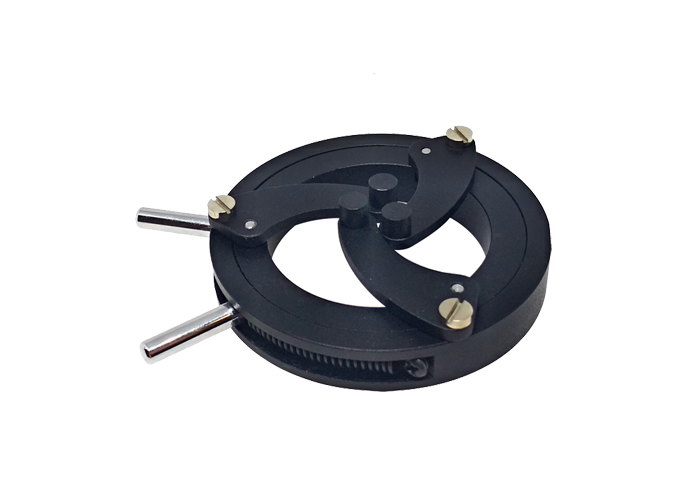

Coaxial frames: PX01 - (50-120)
S characteristics:
S three bracket continuous open at the same time, apply to different diameter of the lens
S change when lens, lens center remains the same
S spring automatic reset, it is suitable for lighter weight of the lens
| model | PX01 | |||
| A | MIN | 5 mm | 5 mm | 5 mm |
| MAX | 50 mm | 76 mm | 102 mm | |
| B | 46 mm | 72 mm | 100 mm | |
| C | 70 mm | 102 mm | 140 mm | |
| D | 90 mm | 126 mm | 160 mm | |
| E | 11 mm | 16 mm | 16 mm | |
| F | 19 mm | 30 mm | 30 mm | |
| self-respect | 0.15 kg | 0.2 kg | 0.3 kg | |
The Price
| model | Price US $ |
| PX01 -50 | 46 |
| PX01 -76 | 55 |
| PX01 -102 | 72.7 |
| PX01 -120 | 81.6 |
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.
It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.
If our standard doesn't meet your needs, you can customize it.
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
