Worm and worm wheel has adopted durable to friction material ,high reliable accuracy of rotation .
High precision ,ultra steel axises of importing ,achieve high precision, high load stable motion.Outer circle has scale, interface , convenience for signal’s output.

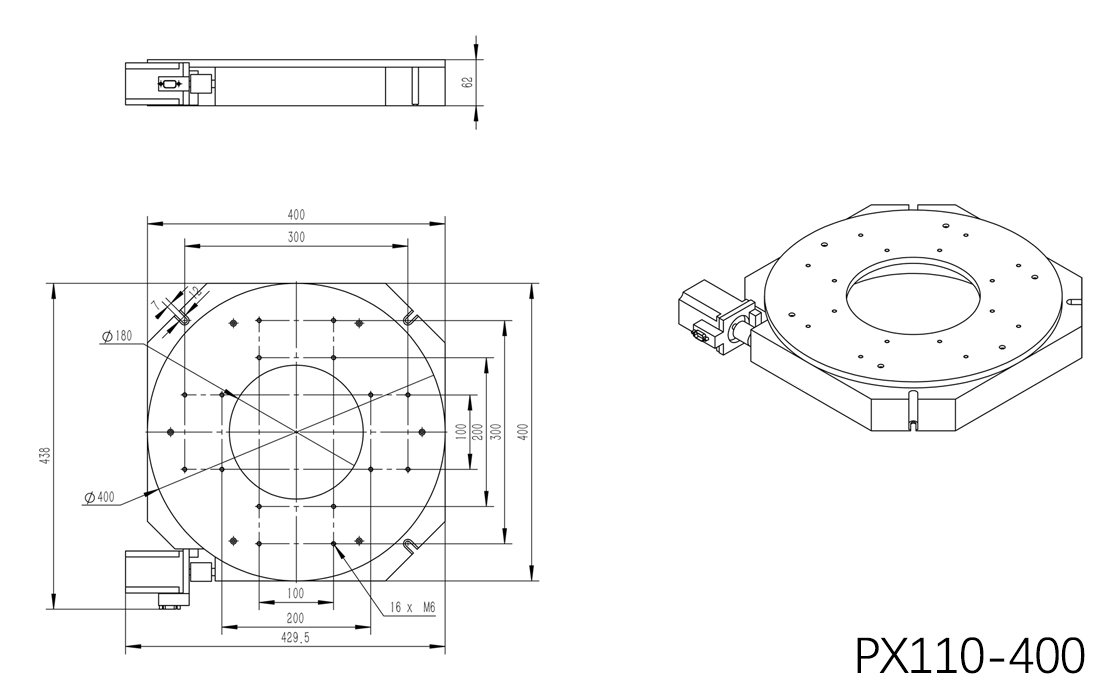

1 Item Number: PX110-400
2 Rotation Range: 360° of Continuous Rotation
3 Diameter of Platform: Ø400mm
4 Drive Mechanism: Worm Gear
5 Worm Gear Ratio: 360 : 1
6 Stepper Motor (1.8°): 57BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle
7 Material – Finish: Aluminum Alloy - Black-Anodized
8 Load Capacity: 75Kgs
9 Weight: 21kgs
Accuracy Specifications
1 Design Resolution: 0.0025°=9″, Non-MS Driver; 0.000125°=0.45″, 20MS Driver
2 Rotational Velocity (Max): 5°/sec
3 Repeatability: 0.002°=7.2”
4 Absolute On-Axis Accuracy: 0.005°=18”
5 Run-Out of Top Plate: 20μm
6 Backlash: 0.005°=18”
7 Eccentricity: 30μm
8 Lost Motion: 0.005°=18″
9 Parallelization: 120μm
