Product Specifications:
| Model | PT-ZS105 |
| Optional version | .NM，The completely non-magnetic version； .HV，High vacuum version； .UHV，Ultra-high vacuum version； |
| Dimensions of the shape | 105×135×23mm |
| Main material | Standard version / .NM aluminum alloy: 800g; HV / .UHV titanium alloy: 1kg |
| Movement distance | 360° |
| Speed range | Default: 1.3°/s to 360°/s; For HV & UHV versions: It is recommended to use 36°/s |
| Maximum load | 5 kg |
| Rated torque | 0.4 N·m |
| Maximum torque | 0.6N·m |
| Holding torque | 0.6 N.m |
| Minimum step size | 0.75 μrad |
| Position sensor type | Optical position sensor |
| Position sensor resolution | 1 urad |
| Cable & connector | Default: Shielded cable D-Sub15; UHV version: Kapton insulated wire, D-Sub15 (PEEK) |

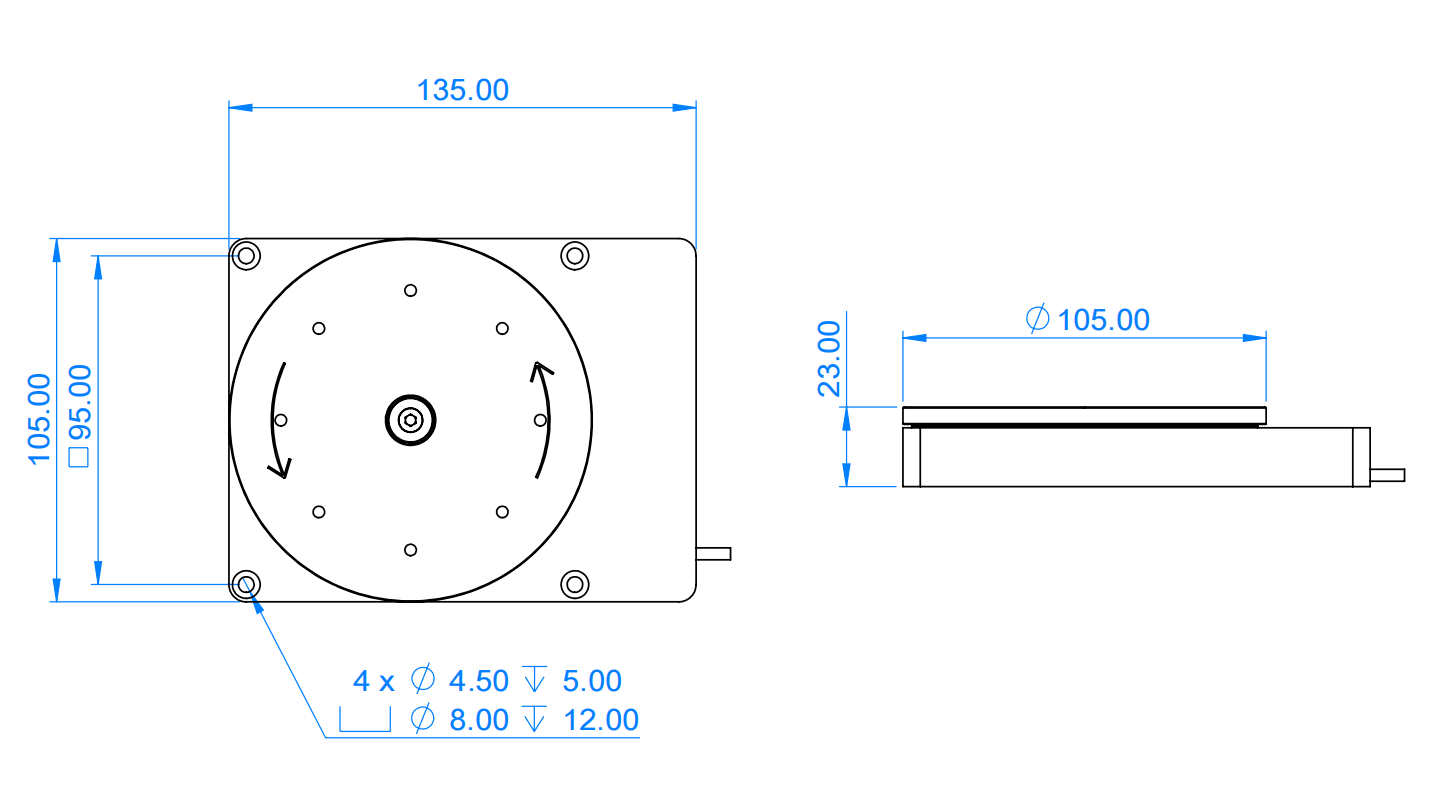

Product size:
