Product Name: PT-YH60 linear slide one-dimensional fine adjustment slide welding manual slide argon arc two protection welding gun adjustment gun holder

Share
Specification:

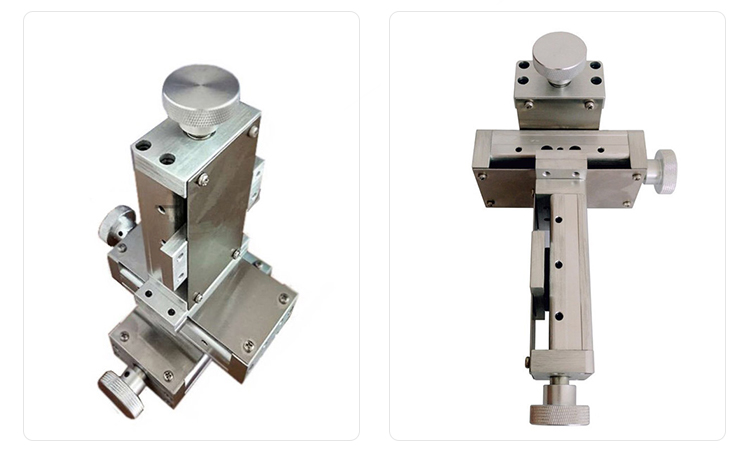

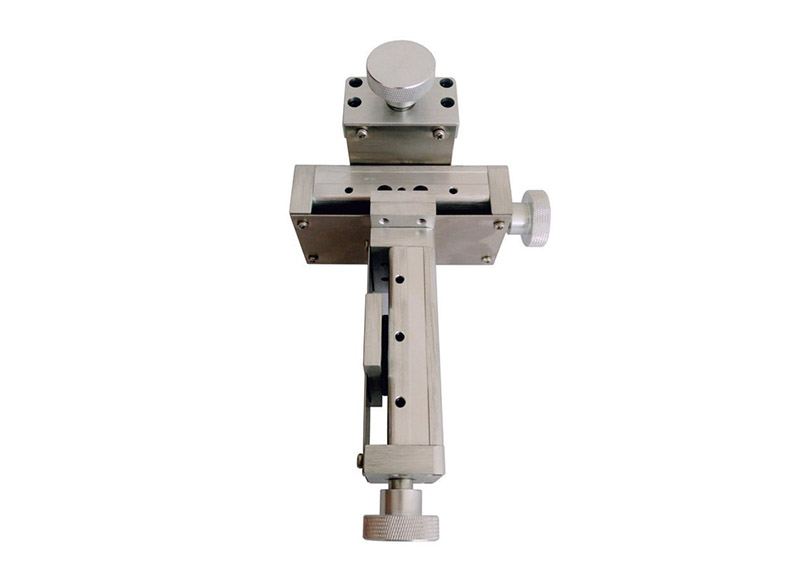

Manual precision slide is specially designed for manual fine adjustment of welding gun in automatic welding machine. It has the advantages of reasonable and compact structure, accurate positioning of multiple degrees of freedom, comfortable adjustment, convenient installation, beautiful appearance and so on. The aluminum alloy structural parts can be combined with two-dimensional and three-dimensional adjustment to realize the x-y-z full position adjustment of the welding gun, with an accuracy of 0.1. It is suitable for the clamping of MIG / MAG, TIG, plasma, submerged arc welding torch and NC cutting torch.

PT-YH60 linear slide one-dimensional fine adjustment slide welding manual slide argon arc two protection welding gun adjustment gun holder

PT-YH60 linear slide one-dimensional fine adjustment slide welding manual slide argon arc two protection welding gun adjustment gun holder

PT-YH60 linear slide one-dimensional fine adjustment slide welding manual slide argon arc two protection welding gun adjustment gun holder

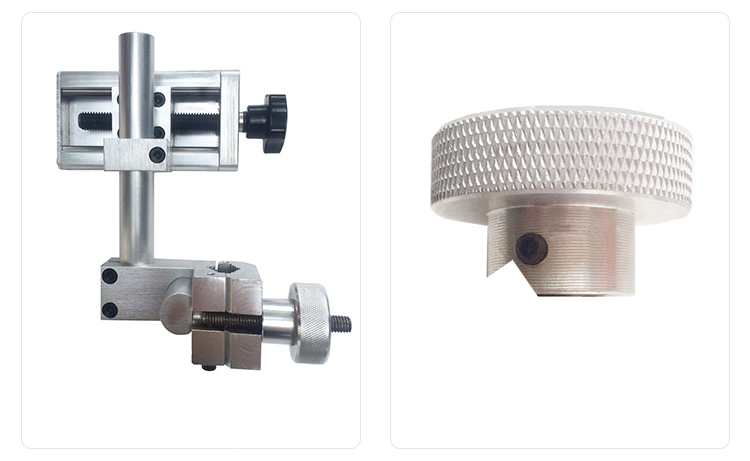

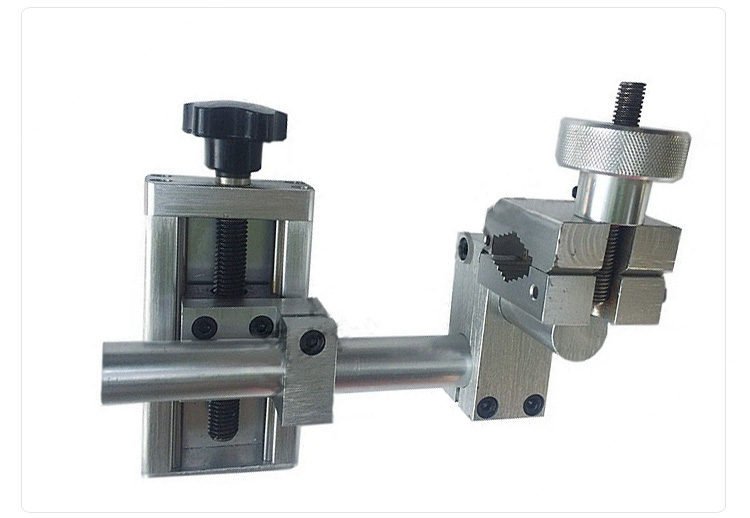

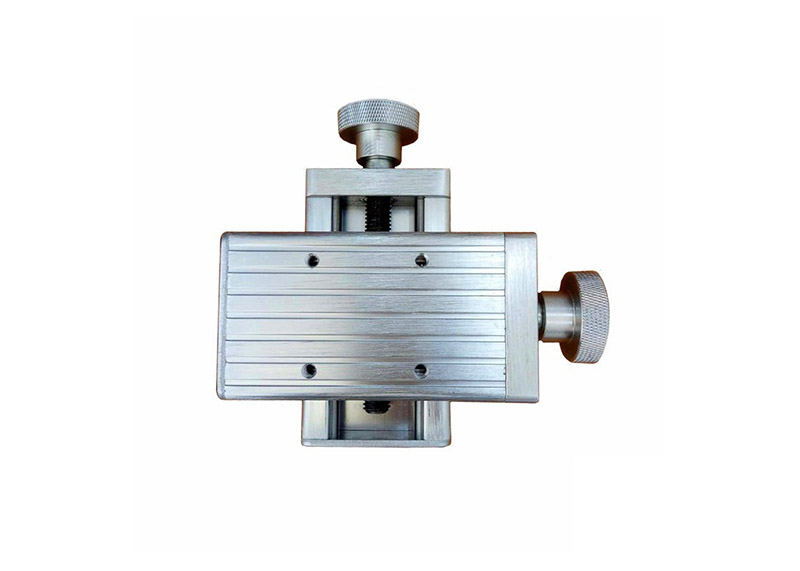

The trimming platform is widely used in automatic welding trolley and automatic welding equipment for manual trimming of welding gun. It has the advantages of high precision, reasonable and compact structure, multiple degrees of freedom, accurate positioning, comfortable adjustment, convenient installation, beautiful appearance and so on! Aluminum alloy structural parts, guide post guidance and screw nut transmission are combined into multi-dimensional adjustment to realize the up, down, left and right position adjustment of welding gun.

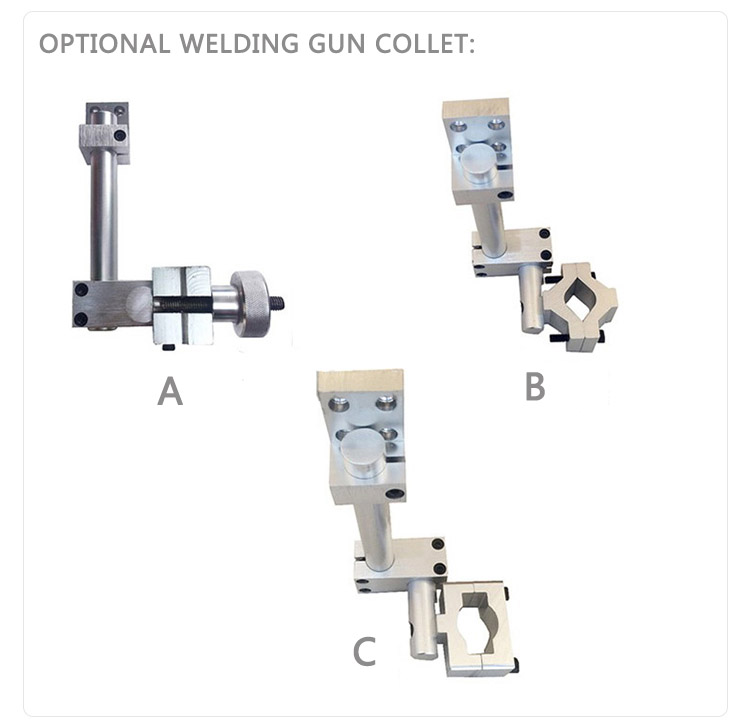

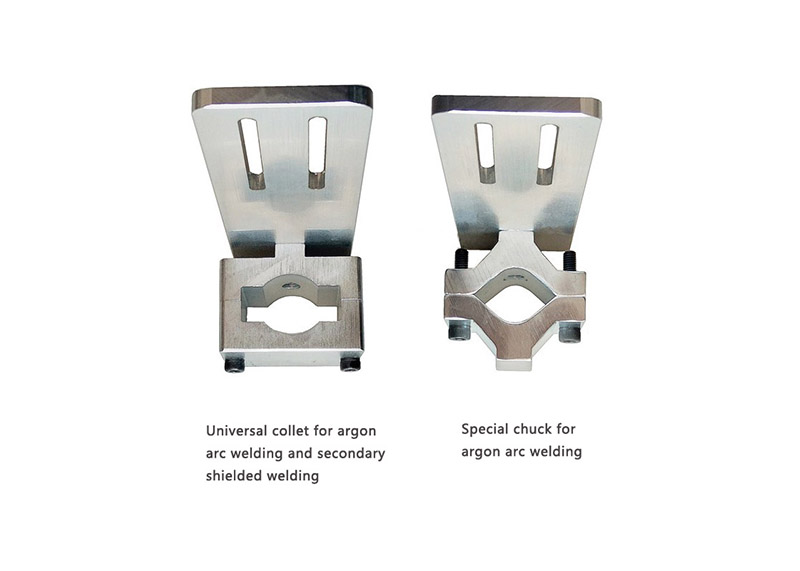

Welding gun collet can be selected: two argon arc welding general collet and argon arc welding collet.

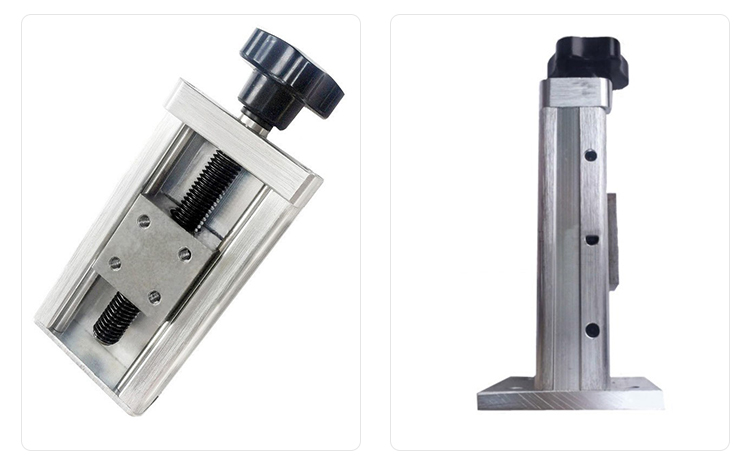

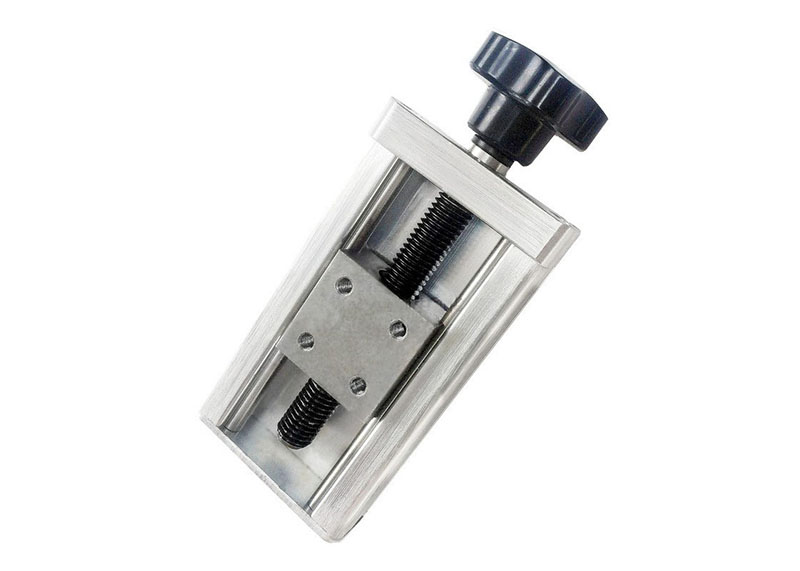

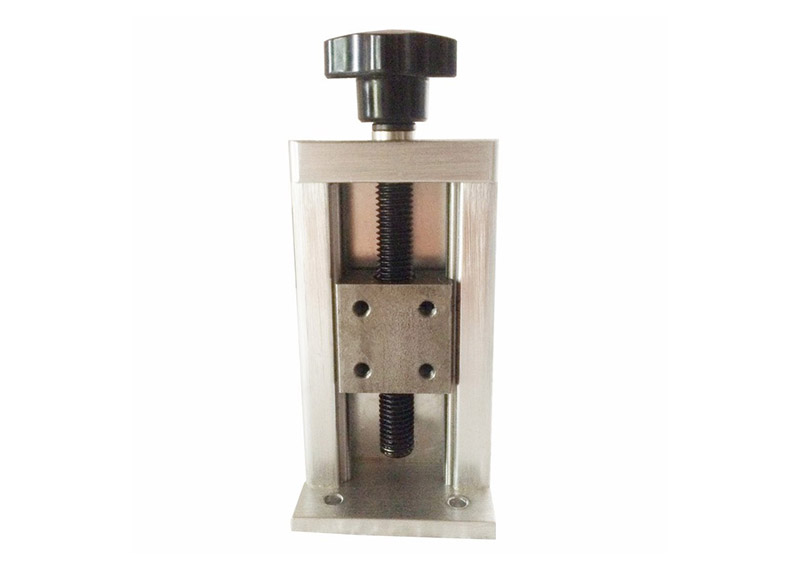

One dimensional slide, with an effective adjustment stroke of 60mm, appearance size: 145mm long * 62mm wide * 25MM high, front mounting hole: 20mm * 20MM, rear mounting hole: 40mm * 40MM.


One dimensional adjusting frame: with a load of 10kg, the screws and nuts are hardened by heat treatment, which is durable, and the linear stroke accuracy is very high. The micro adjusting frame can be used in the connection of argon arc welding gun of automation equipment, worktable, small bench drill, positioner and other fields.


Warm tip: because there are many kinds of gun clamping devices, if necessary, please take a picture of the appropriate gun clamping device according to your own needs.

PT-YH60 linear slide one-dimensional fine adjustment slide welding manual slide argon arc two protection welding gun adjustment gun holder

PT-YH60 linear slide one-dimensional fine adjustment slide welding manual slide argon arc two protection welding gun adjustment gun holder
