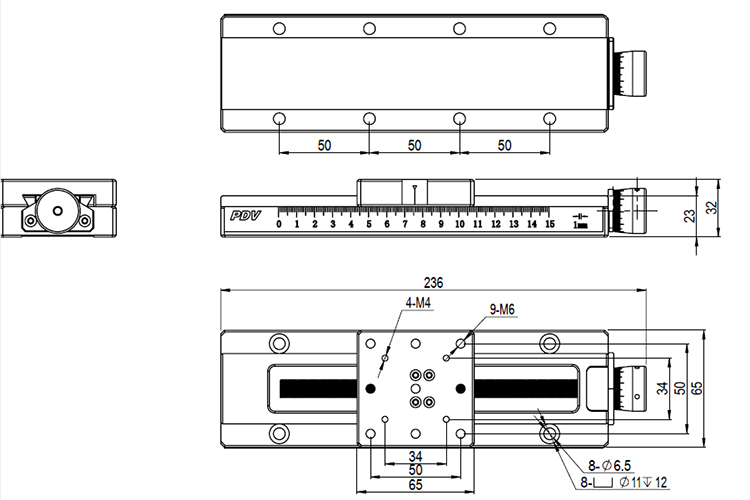

| Model Number(Direction: X) | PT48-75G | PT76-150G |
| Platform size (mm) | 48×48 | 76×76 |
| Travel (mm) | 75 | 150 |
| Screw pitch (mm) | 1 | 1 |
| Resolving power (mm) | 0.002 | |
| * Small reading (mm) | 0.01 | 0.01 |
| Motion straightness (um)(Move left and right while moving) | ±8 | ±10 |
| Motion parallelism (um)(Up and down during exercise) | ±15 | ±20 |
| Mesa flatness (um) | ±8 | ±15 |
| Loading capacity (kg) | 4 | 5 |
| Slide rail | Dovetail guide | |
| Net weight (kg) | 0.5 | 1.1 |
we will provide excellent service and competitive price for you, we are expecting become your long-term partner in China.
Product features
Using precision screw thread drive, hand wheel rotation operation. The translation platform itself has self-locking performance.

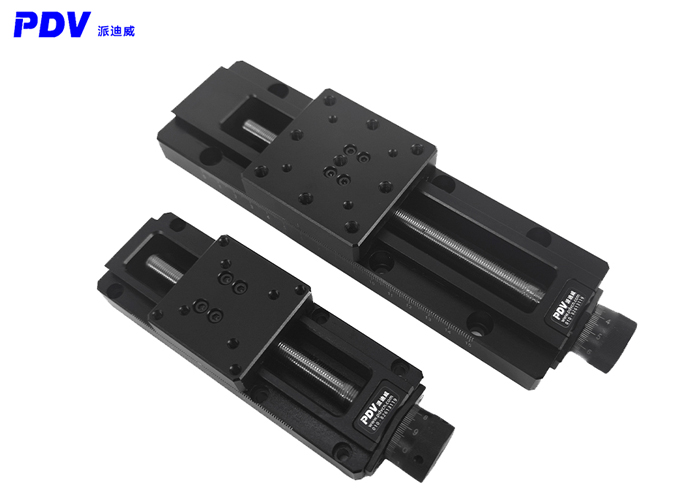

The translation platform is divided into two types of heavy and light load, the light load platform adopts dovetail guide rail structure, suitable for light load and mobile parallelism of less demanding occasions; cross roller guide rail structure with heavy platform, large carrying capacity, stability and better mobile.
The translation table is driven by a precision threaded screw rod. The thread has 0.5, 1, 2, three pitch specifications. The smaller the pitch, the higher the resolution and the slower the adjustment speed.

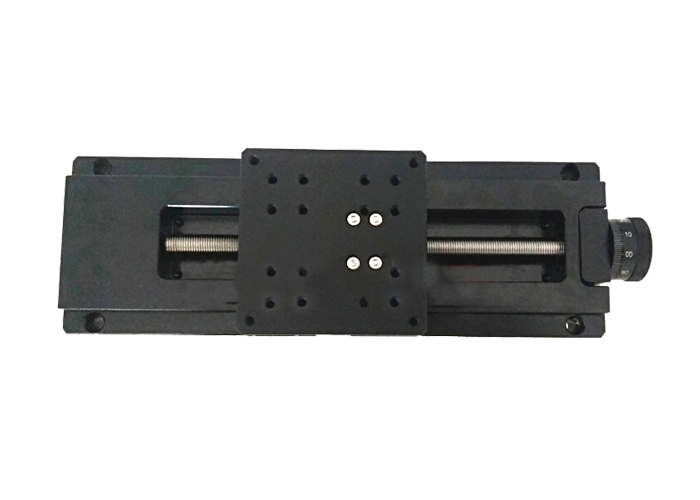

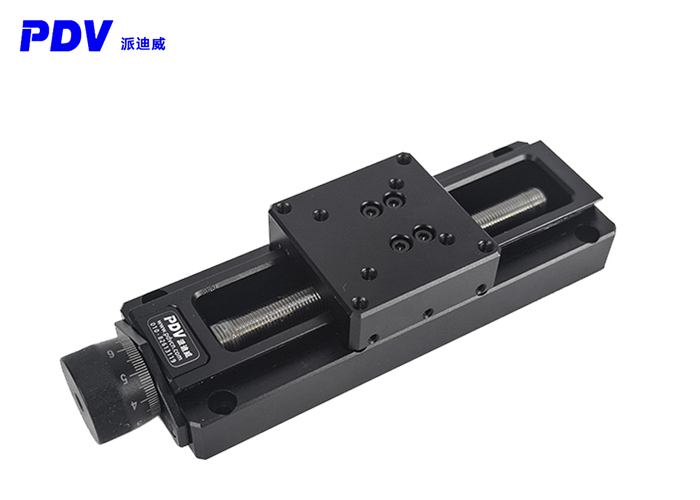

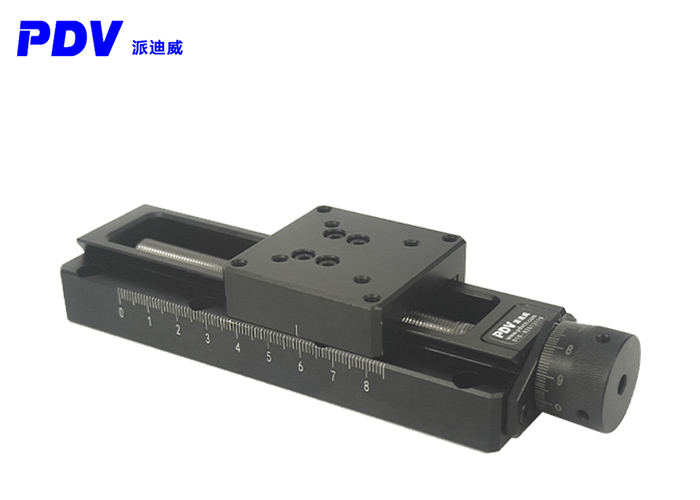

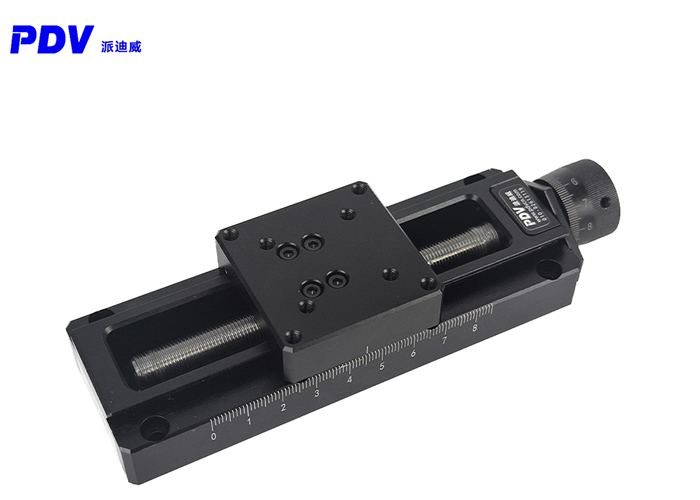

The following is PT48-75G Light Load Type Micrometer Drum Translation Platform with a large micrometer drum to achieve fine reading. Small readings up to 0.01mm
We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.
Have the industry leading level of the designer, can strictly grasp the product design and processing precision.
We have experienced and skilled assembly master.
Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.
If our standard products do not meet your requirements, we can customize them according to your requirements.
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.
If our standard doesn't meet your needs, you can customize it.
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
