|Platform||90mm x 90mm||90mm x 110mm||90mm x 110mm|
|Bearing Construction||Grinding Lead Screw (1mm of leading)|
|Travel Guide||Crossed Roller Bearing|
|Stepper Motor (1.8°)||42BYG (Stepping Motor with 2-Phases & 1.8° of Step Angle)|
|Material||Aluminum Alloy - Black-Anodized|
|Accuracy||Design Resolution||5μm/Pulse, Non-MS Driver 0.25μm/Pulse, 20MS Driver|
|Others||Optional Accessories||Brake Function (-Z), Grating Scales (-G), Servo Motor (-D)|

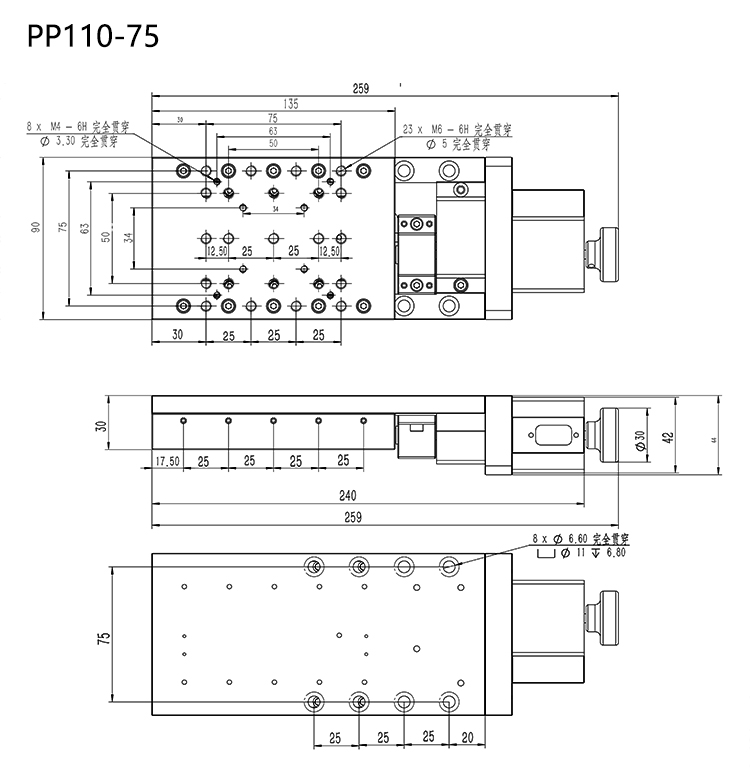

High Precision Motorized Linear Stages:PP110-30 PP110-50 PP110-75
1, The stepper motor with 2-phase and 1.8° step angle will be sued in this model
2, Low-profile, high-accuracy and apply to low bearing capacity, low speed.
3, The structure of crossed-roller bearing requires the precise movement.
4,Original position and limit switches are at both ends which can supply the precision positioning and protection.
5, Applies to use in single axis or assemble into multi-axis stage
Rotation with super grinding ,slide with v-shapped rail ,elastic couplings have adopted high quality high-quality products,supply quality assurance .The design of the limited switches and zero switch and standard interface are converient for output of DB9 ;Equipped with handwheel in the back of motor ,achieve manual adjustment;Standard hole is convenient for combined-dimensional . Application for little height of space,little travel,high resolution fields.
The design of limited switches and zero switch protect products and supply convenience;
Standard interface is convenient for singal’s output.
The back of motorized stages has handwheel , it is for convenience for adjustment;
Standard hole is so easy for combine with other units, ensure convenience for multi-dimensional system;
standard stepper motor and DB9 interface, choose to any controller according to requirement
