  • PT-GD102PPrecise Electric Translating Platform
  • PT-GD102PPrecise Electric Translating Platform

Product Name: PT-GD102PPrecise Electric Translating Platform

Share
Specification:
ModelPT-GD102P(15)PT-GD102P(30)PT-GD102P(50)PT-GD102P(75)
Structure
  Description
Travel Range15 mm30 mm50 mm75 mm

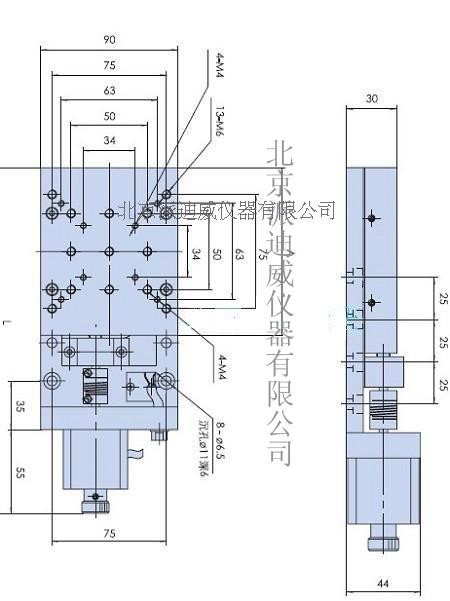

Table   Size65×65mm90×90 mm90×110mm90×135mm
Screw Spec.Grinding   Screw
   (Travel Range 0.5 mm)
Grinding   Screw (Travel Range 1 mm)
Travel   GuideHigh   Precise V-groove & Crossed Rollers
Stepper   Motor(1.8°)STP-42D3016
Base   MaterialAluminum   Alloy
Surface   TreatmentBlack-anodized
Load   Capacity10kg15kg20 kg
Weight1.2kg1.25kg1.4kg1.7kg
AccuracyDescriptionResolution2.5μ/Pulse   (non MicroStep)
  0.125μ/Pulse (20MicroStep Driver in use)
5μ/Pulse   (non MicroStep)0.25μ/Pulse   (20 MicroStep Driver in use)
Maximum   Speed5mm /sec10mm /sec
Repeatability
Positional   Accuracy10μ
Straightness12µ
Driving   Parallelism10µ15µ
Pitching25″
Yawing20″
Backlash
Lost   Motion
Accessories
  Description
Limit   Switch & Origin Sensor
Grating   (G)
Servo   Motor (D)


PT - GD102P (15-75)

Travel Range:15-75mm

Resolution Ratio:0.125μm

Parallelism:< 5μm

Pitching:10" (50μrad)

Repeat positioning accuracy:< 1μm

Driving Straightness:< 2μm

Yawing:10 "50 mu (rad)

The highest speed:5 mm/sec

Load Capacity:0~15 kg

Weight:1.3~3 kg

PT-GD102PPrecise Electric Translating Platform


Product details:
Advantage:



We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.
