  • Beam Turning Beam Steering PZQ301 - (20-30)

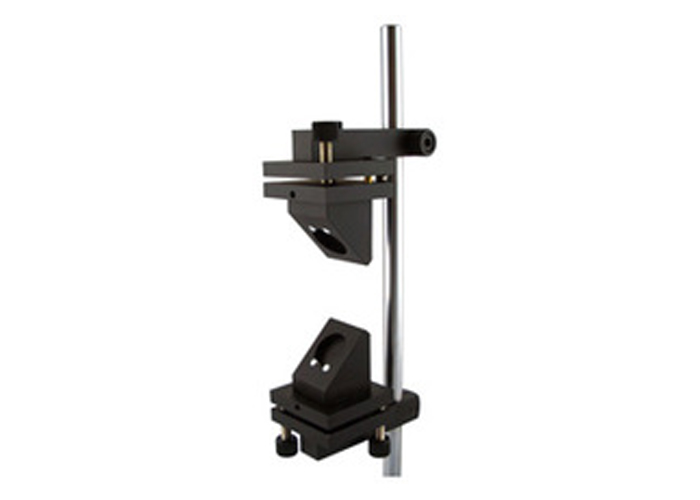

Product Name: Beam Turning Beam Steering PZQ301 - (20-30)

Share
Specification:

Turning frame beam can change direction of the beams or height, but holding a variety of the diameter of the mirror and prism, the beam that is adapted to different diameter can be 360 ° rotating mirror, and can be plus or minus 4 ° inclination adjustment, adjusting mechanism adopts M6x0. 25 mm super fine screw driver, disc spring reset, high precision and stability is very high, scaffold pole with a standard diameter stainless steel, easy installation, beautiful and applicable, applicable card smaller diameter circular lenses.

Beam twist: PZQ301 - (20-30)

S characteristics:

S WN01BS series beam turning device can change direction of the beams or height, but holding a variety of the diameter of the reflector and prism

S to adapt to the different diameter of beam, a lens seat can rotate 360 °, and can be plus or minus 4 ° inclination adjustment

S adjusting mechanism adopts M6x0. 25 superfine screw drive, disc spring return, high precision and stability is very high

S support rod with a standard diameter stainless steel, easy installation, beautiful and applicable

S card smaller diameter circular lenses





modelPZQ301-(20-30)
A(the lens diameter)20 mm25 mm30 mm
B32 mm32 mm36 mm
Beam hoisting height180 mm
Tilt adjustment Angle±4°
self-respect0.8 kg



Beam Turning Beam Steering PZQ301 - (20-30)


Product details:
Advantage:

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage.   They can be any combination, building block structure, can satisfy any scene usage requirement.

It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.

If our standard doesn't meet your needs, you can customize it.


Service:
Beam Turning Beam Steering PZQ301 - (20-30)
  • Beam Turning Beam Steering PZQ301 - (20-30)
  • Beam Turning Beam Steering PZQ301 - (20-30)
  • Beam Turning Beam Steering PZQ301 - (20-30)
  • Beam Turning Beam Steering PZQ301 - (20-30)
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Beam Turning Beam Steering PZQ301 - (20-30)
Beam Turning Beam Steering PZQ301 - (20-30)
FAQ:
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
