Observation position is always in real time focus, and Manual focus is not required. Providing 1080P HD image.
High resolution 1080P
High speed 60FPS

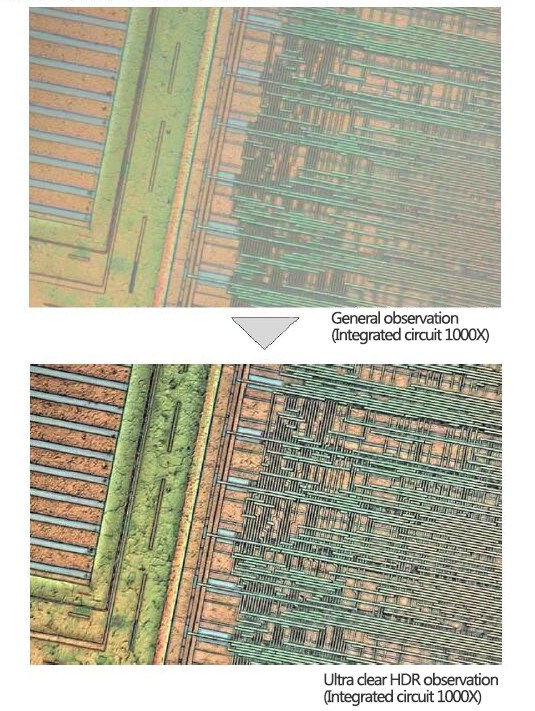

Ultra clear HDR
| Model Number | HDMI-200ZD |
| Sensor Type | CMOS Colour |
| Effective Pixels | 2 Million |
| Pixel Size | 1/2.8” (5.38x3.02mm) |
| Display Frame Rate | 1080P60Hz/1080P50Hz |
| Scanning Mode | Progressive Scanning |
| Shutter Speed | 1/50s(1/60s) ~ 1/10000s |
| Signal-to-noise Ratio | >50DB |
| White Balance | Manual/Auto/Onekey White Balance |
| Exposure Mode | Auto/Manual |
| Line Control Function | Yes |
| Lens Interface | C/CS |
| Power Supply DC | DC5V |
| Output Mode | HDMI |
| Working Temperature | 0~50 Centigrade |
| Size | 66mm x 66mm x 80mm |
| Weight | 420g |
| Optical Magnification | Video Magnification | Focus Clear Range |
| 1X | 88X | 13.0mm |
| 2X | 177X | 3.5mm |
| 3X | 265X | 1.0mm |
| 4X | 354X | 0.8mm |
| 5X | 442X | 0.5mm |
| The video magnification is the magnification when 21.5 inch display is working.Because of different optical lenses, the focus clear range will be a slight different. | ||
Product List:
We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.
Have the industry leading level of the designer, can strictly grasp the product design and processing precision.
We have experienced and skilled assembly master.
Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.
If our standard products do not meet your requirements, we can customize them according to your requirements.
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
