Product Name: Infinity Corrected Long Working distance Objective CCW-2X/5X/10X/20X/50X/100X/20XD/50XD

Share
Specification:
Metallurgical ObjectiveNotes2X.5X.10X.20X 50x 100x Infinity Super-Long Working Distance Plan Apochromatic Metallurgical Objective
2X Infinity Corrected Long Working Distance  ObjectiveObjective Optical SystemInfinite
Objective Optical Magnification2X
Objective TypePlan Apochromatic Objective
Objective Parfocal Distance 95mm
Objective Focal Length100mm
Objectie Working Distance34.6mm
Numerical Aperture(N.A)N.A.0.055
depth of focus91μm
Objective Resolution5μm
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreasM26X1/36"
Objective Outer Dia.Φ32.2mm
Surface Treatment Electroplating Black
MaterialAluminum
ColorBlack
Net Weight0.12kg(0.26bs)
5X Infinity Long Working Distance Plan Achromatic Dark Field Metallurgical ObjectiveObjective Optical SystemInfinite
Objective Optical Magnification5X
Objective TypePlan Apochromatic Objective
Objective Parfocal Distance 95mm
Objective Focal Length40mm
Objectie Working Distance44.5mm
Numerical Aperture(N.A)N.A.0.13
depth of focus14μm
Objective Resolution2μm
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreasM26X1/36"
Objective Outer Dia.Φ32.2mm
Surface Treatment Electroplating Black
MaterialAluminum
ColorBlack
Net Weight0.18kg(0.40bs)

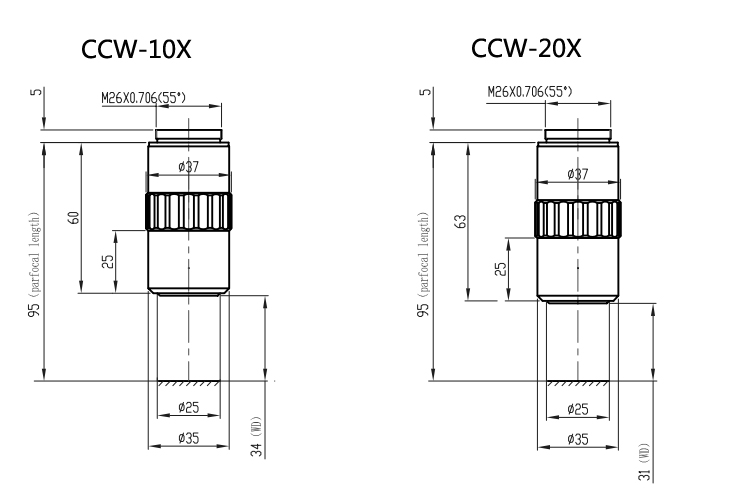

10X Infinity Long Working Distance Plan Achromatic Dark Field Metallurgical ObjectiveObjective Optical SystemInfinite
Objective Optical Magnification10X
Objective TypePlan Apochromatic Objective
Objective Parfocal Distance 95mm
Objective Focal Length21mm
Objectie Working Distance34mm
Numerical Aperture(N.A)N.A.0.28
depth of focus3.5μm
Objective Resolution1μm
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreasM26X1/36"
Objective Outer Dia.Φ35mm
Surface Treatment Electroplating Black
MaterialAluminum
ColorBlack
Net Weight0.19kg(0.42bs)
20X Infinity Long Working Distance Plan Achromatic DObjective Optical SystemInfinite
Objective Optical Magnification20X
Objective TypePlan Apochromatic Objective
Objective Parfocal Distance 95mm
Objective Focal Length10mm
Objectie Working Distance31mm
Numerical Aperture(N.A)N.A.0.29
depth of focus3.5μm
Objective Resolution1μm
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreasM26X1/36"
Objective Outer Dia.Φ35mm
Surface Treatment Electroplating Black
MaterialAluminum
ColorBlack
Net Weight0.22kg(0.49bs)
50X Infinity Long Working Distance Plan Achromatic DObjective Optical SystemInfinite
Objective Optical Magnification50X
Objective TypePlan Apochromatic Objective
Objective Parfocal Distance 95mm
Objective Focal Length4mm
Objectie Working Distance20.5mm
Numerical Aperture(N.A)N.A.0.42
depth of focus1.6μm
Objective Resolution0.7μm
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreasM26X1/36"
Objective Outer Dia.Φ35mm
Surface Treatment Electroplating Black
MaterialAluminum
ColorBlack
Net Weight0.92kg(0.64bs)

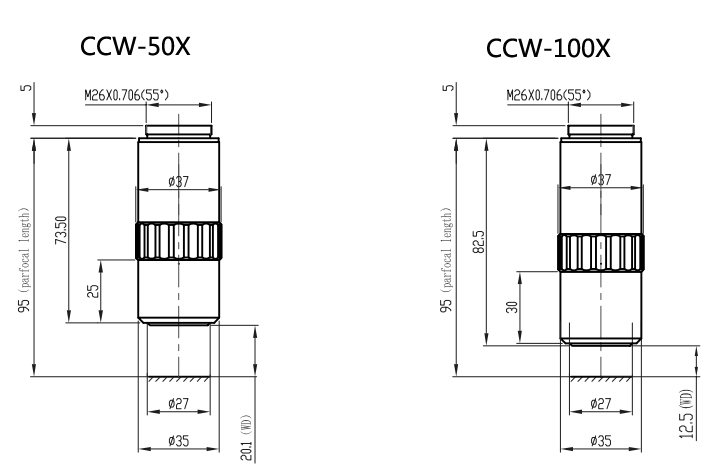

100X Infinity Long Working Distance Plan Achromatic DObjective Optical SystemInfinite
Objective Optical Magnification100X
Objective TypePlan Apochromatic Objective
Objective Parfocal Distance 95mm
Objective Focal Length2mm
Objectie Working Distance12.5mm
Numerical Aperture(N.A)N.A.0.55
depth of focus0.9μm
Objective Resolution0.5μm
Objective Cover Glass Thickness/0
Objective Immersion MediaDry Objective
Objective Screw ThreasM26X1/36"
Objective Outer Dia.Φ35mm
Surface Treatment Electroplating Black
MaterialAluminum
ColorBlack
Net Weight0.12kg(0.86bs)


item no.Product nameSpecification
CCW-20XD20X Large N.A Objective20X Plan achromatic objective,Parfocal distance 95mm,W.D.20.68mm,focal Length 10mm,N.A 0.42 depth of focus 1.6μm,resolutions 0.7μm,FOVφ1.2mm(φ24Eyepiece),focal depth 3.3μm
CCW-50XD50X Large N.A Objective20X Plan achromatic objective,Parfocal distance 95mm,W.D.20.68mm,focal Length 10mm,N.A 0.42 depth of focus 1.6μm,resolutions 0.7μm,FOVφ1.2mm(φ24Eyepiece),focal depth 3.3μm


CCW-2X/5X/10X/20X/50X/100X/20XD/50XD Infinity Corrected Long Working distance Objective

CCW-2X/5X/10X/20X/50X/100X/20XD/50XD Infinity Corrected Long Working distance Objective

CCW-2X/5X/10X/20X/50X/100X/20XD/50XD Infinity Corrected Long Working distance Objective


Product details:
Advantage:
 PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage.   They can be any combination, building block structure, can satisfy any scene usage requirement.
It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.
