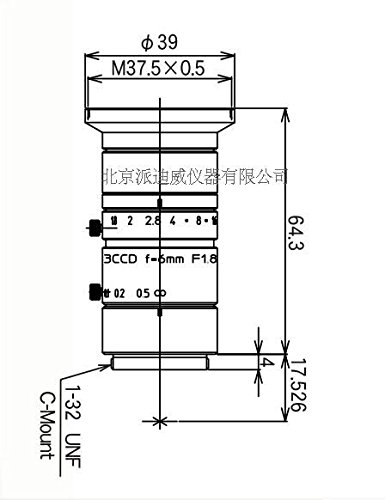

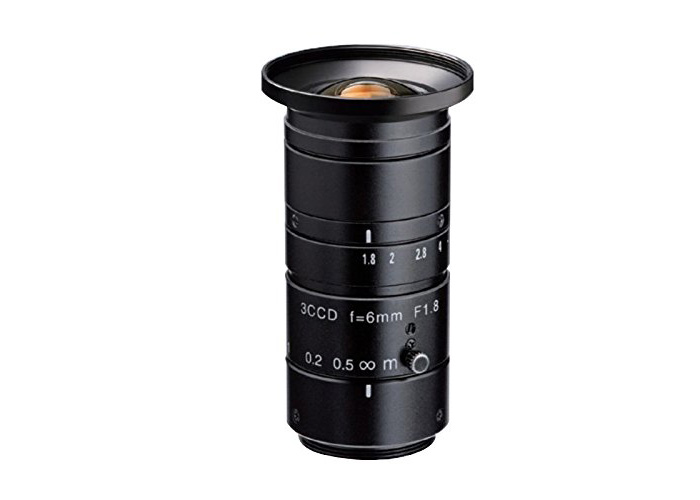

| Model | LM6NC3 | LM12NC3 | LM25NC3 | LM50NC3 | |||
| Focal length（mm） | 6 | 12 | 25 | 50 | |||
| Image size（mm） | 1/2"（Φ8） | 1/2"（Φ8） | 1/2"（Φ8） | 1/2"（Φ8） | |||
| Iris range（F-stop） | F1.8〜F16 | F1.8〜F16 | F1.8〜F16 | F1.8〜F16 | |||
| Focusing range（m） | 0.1〜∞ | 0.15〜∞ | 0.2〜∞ | 0.3〜∞ | |||
| Control | Iris | Manual | Manual | Manual | Manual | ||
| Focus | Manual | Manual | Manual | Manual | |||
| Shooting range at M.O.D. | 117（H）×95（V） | 89（H）×66（V） | 56（H）×42（V） | 39（H）×29（V） | |||
| Angle of | 1/2 inch | 58.8×44.9 | 30.4×22.8 | 14.6×11.0 | 7.0×5.3 | ||
| View （degree） | 1/3 inch | 44.9×34.0 | 22.8×17.2 | 11.0×8.2 | 5.3×4.0 | ||
| Resolution（Center, Corner） | 120lp/mm，100lp/mm | 120lp/mm，100lp/mm | 120lp/mm，100lp/mm | 120lp/mm，100lp/mm | |||
| Distortion（TV） | −2.1% | −0.90% | −0.17% | 0.01% | |||
| Back focus in air（mm） | 15.2 | 15.2 | 15.0 | 21.2 | |||
| Mount | C-mount | C-mount | C-mount | C-mount | |||
| Filter thread（mm） | M37.5×P0.5(Option) | M27×P0.5 | M27×P0.5 | M35.5×P0.5 | |||
| Size（mm） | Φ39×64.3 | Φ30×58.5 | Φ30×47 | Φ40×66 | |||
| Weight（g） | 99 | 90 | 75 | 50 | |||
| Temperature range | −10℃〜＋45℃ | −10℃〜＋45℃ | −10℃〜＋45℃ | −10℃〜＋45℃ | |||
Specifications are subject to change without notice.
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.
Service:
It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Note:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
