Product Name: SM2 Internal Thread Diameter 2 Inch Lens Sleeve

Share
Specification:

Model Number

Height

Diameter

screw thread

Net Weight

TG7-01

Sleeve depth 0.5 inches (12.7mm)

φ55.9mm, compatible φ 2-inch lens

SM2(2/035”-40)

12.7g

TG7-02

Sleeve depth 1 inch (25.4mm)

25.6g

TG7-03

Sleeve depth 1.5 inches (38.1mm)

38.4g

TG7-04

Sleeve depth 2 inches (50.8mm)

51.5g

SM2 Internal Thread Diameter 2 Inch Lens Sleeve

Product details:

Ø 2 Inch Lens Sleeve


Product characteristics

1. SM2 (2.035 "-40) threaded hole for installing φ2-inch (φ50.8 mm) optical components;

2. Optical components can be operated from both ends;

3. Stacking multiple lens sleeves using lens sleeve connectors;

4. Coupling components with two SM2 external threads;

5. Can be used as a sleeve shading component, shielding the light path, and providing an opaque solution.


Multiple sizes are available, with thread depths ranging from 0.5 inches (12.7mm) to 2 inches (50.8mm).


SM2 Internal Thread Diameter 2 Inch Lens Sleeve

The lens sleeve is ideal for building compact optical components. The φ2-inch lens sleeve is used for mounting one or more optical components. The optical elements are separated and fixed by clasp rings, which are positioned at the depth required in the lens sleeve (2 clasp rings are included, if more clasp rings are needed, additional clasp rings need to be purchased separately);


SM2 Internal Thread Diameter 2 Inch Lens Sleeve


These φ2-inch stacked lens sleeves provide a quick and easy way to build compact optical components. One end of the internally threaded lens sleeve has no lip so that the optics mounted within can be operated from both ends. To connect these lens bushings end to end, the lens bushings connector can be used to engage the SM2(2.035"-40) threaded assembly, allowing the flexibility to construct complex opto-mechanical components.


SM2 Internal Thread Diameter 2 Inch Lens Sleeve

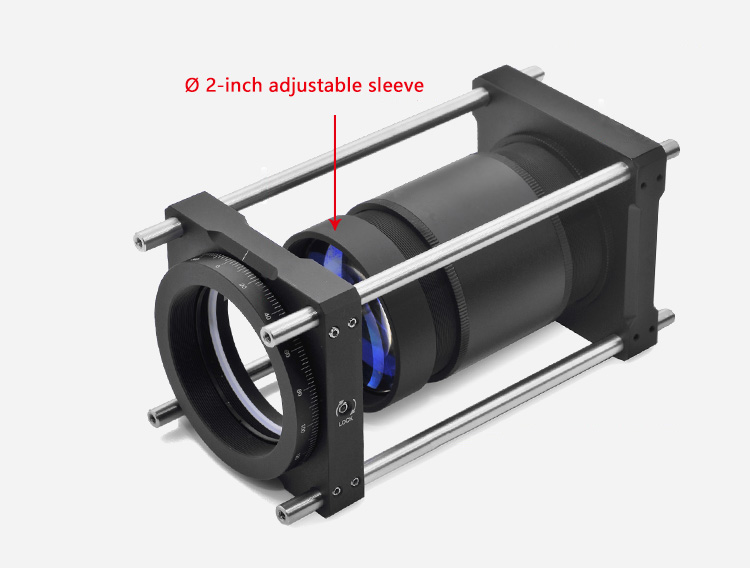

In the cage system, the lens sleeve can be made to block light elements, shielding light path, to provide opaque solutions.

SM2 Internal Thread Diameter 2 Inch Lens Sleeve
