Driven by worm gear and worm structure, high-resolution precise angle adjustment can be carried out by rotating the hand wheel. It is easy to operate and has good bearing capacity. It is suitable for the occasions requiring precise arc swing angle. Heavy duty angle table, with arc cross guide rail, has better bearing capacity and stability.
The ordinary manual angle table is driven by worm wheel and worm structure. It can adjust the precise angle with high resolution by rotating the hand wheel. It is easy to operate and has good bearing capacity. It is suitable for the occasions requiring precise arc swing angle. The heavy-duty rotary table adopts the cross circular arc guide rail structure, which has greater bearing capacity and better swing stability.
There are mounting screw holes at the bottom of the product, which can be directly connected with other countertops for assembly.

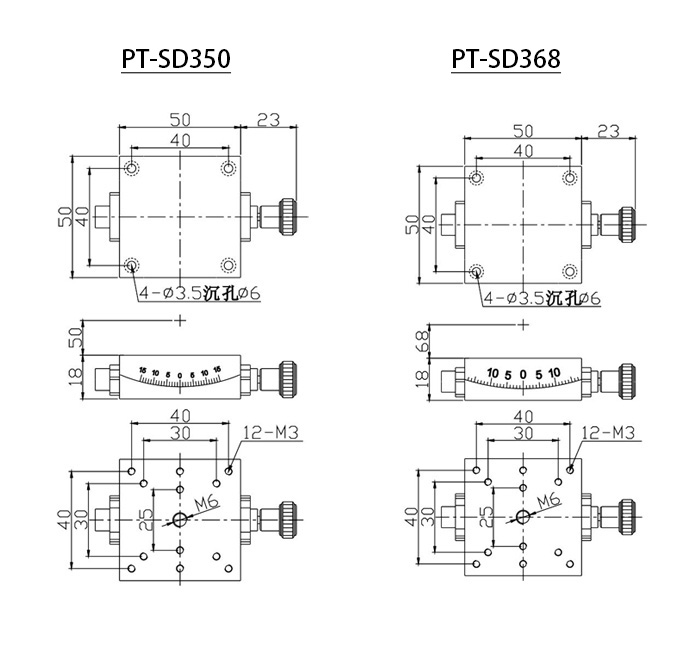

Model | PT-SD350 | PT-SD368 | PT-SD386 | PT-SD370 | PT-SD396 | PT-SD3122 | PT-SD395 | PT-SD3134 | PT-SD3144 |
Platform Size(mm) | 50×50 | 70×70 | 100×100 | 125×125 | |||||
Table top to center position (mm) | 50 | 68 | 86 | 70 | 96 | 122 | 95 | 134 | 144 |
Adjustment range (°) | ±15° | ±10° | ±10° | ±10° | ±10° | ±8° | ±10° | ±10° | ±12° |
reading (°) | 1° | ||||||||
resolving power (°) | 0.01° | 0.005° | |||||||
load bearing (kg) | 10 | 15 | 20 | 20 | |||||
Guide rail structure | Crossed ball arc rail | ||||||||
Weigth(kg) | 0.4 | 0.6 | 1.5 | 2.1 | |||||
