Model Number | PT-SD415 |
Platform Size | 101.6*76.2mm |
Platform Height | 21.3mm~46.8mm |
Travel Range | 25mm |
Load Capacity | 55.1 lbs (25kg) |
Weight | 425.2g |
Material | 7075 Aluminum Alloy |
Product features:
1. The Z-axis height adjustment range is 25mm, and the table height is from 21.3mm to 46.8mm;
2. Mounting table: 101.6 * 76.2mm;
3. Vertical load capacity 55.1lbs (25kg);
4. The top and bottom are provided with multi specification threaded holes and installation grooves.
Dimension drawing:

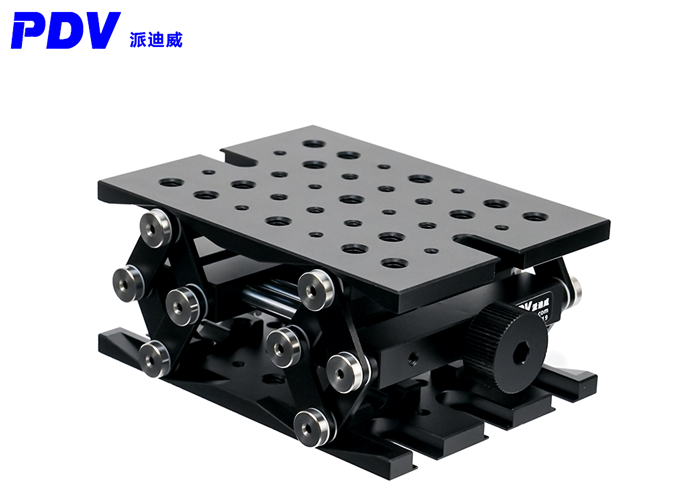

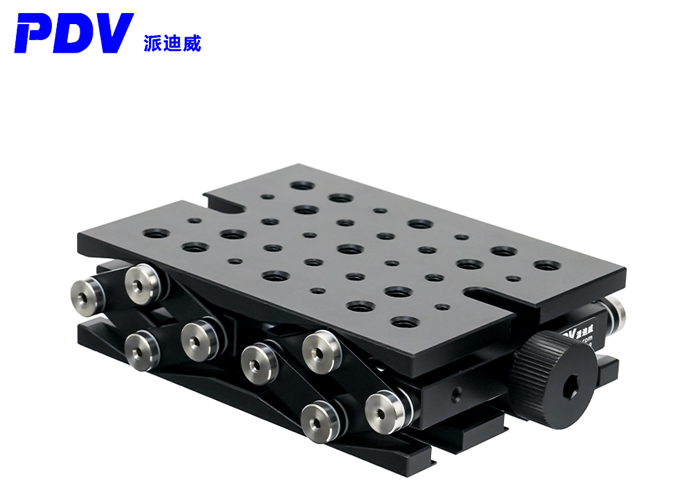

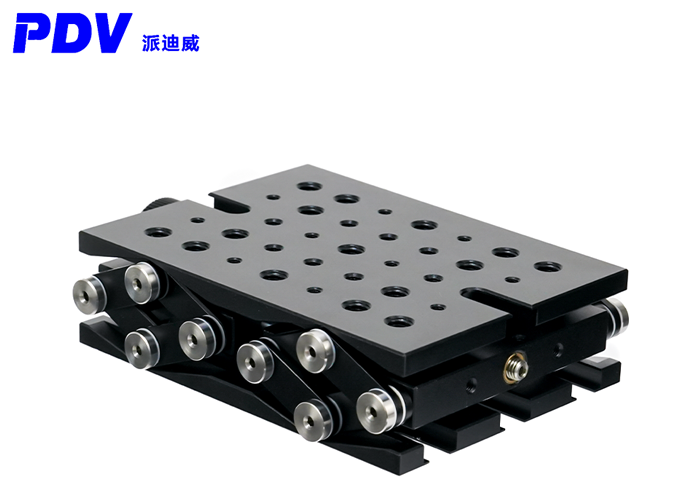

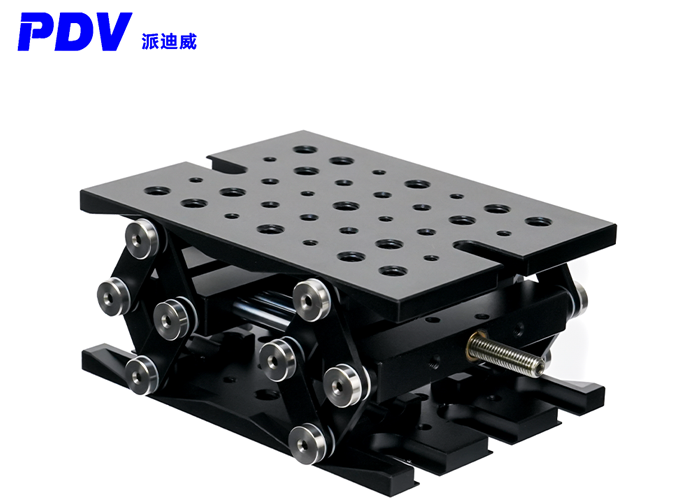

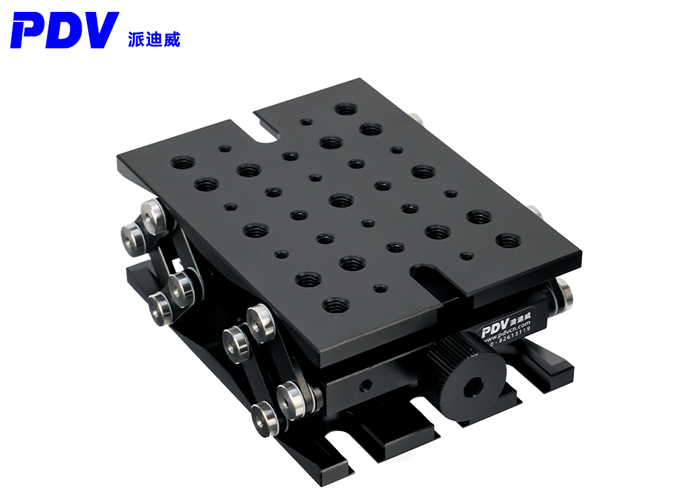

PT-SD415 manual lab jack is very suitable for installing opto mechanical sub assemblies that need height adjustment. It has a rigid scissor design, high stability and good parallelism. The adjusting device uses a lead screw to drive the vertical movement. The lead screw movement is 0.8mm per revolution, which can provide 25mm height lifting adjustment, and can support a vertical load of up to 50lbs.
The installation table top is 101 * 76.2mm, and the top plate and bottom plate table top are arranged with a variety of threaded holes, with installation slots.
Top plate mounting holes: 10 M3, 8 M4, 15 M6, 2 6.7 * 19.2mm;
Bottom plate mounting holes: 10 M3, 8 M4, 11 M6, 6 6.7 * 19.2mm;
