Rough Adjustment Travel
360°, scale 2°
Vertical adjustment 26.0mm, scale 0.01mm
M4(9 places) and M6(4 places)
7075 Aluminum Alloy
1. High stability, lockable vertical and rotary motion lifting platform;
2. The top platform can be rotated 360 ° to roughly adjust and lock the position;
3. The vertical adjustment range is 26mm, from 50.8mm to 76.8mm;
4. Mounting surface Φ 67.0mm；
5. Static and dynamic load capacity 50kg (110.2lbs);
6. A variety of thread array worktops can be selected to meet different experimental needs.
Product size drawing：

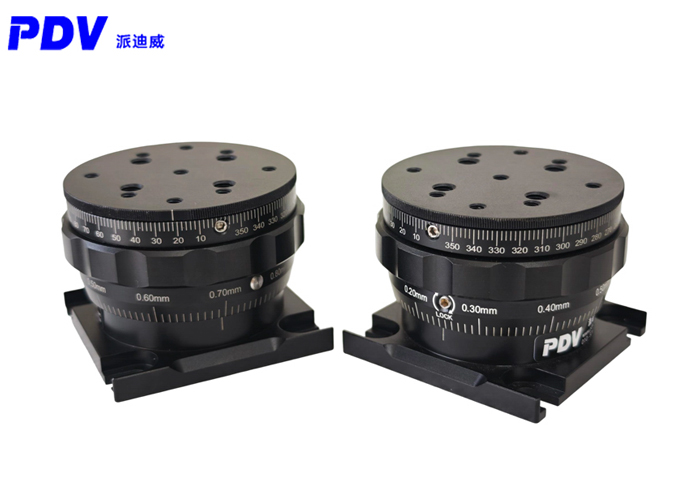

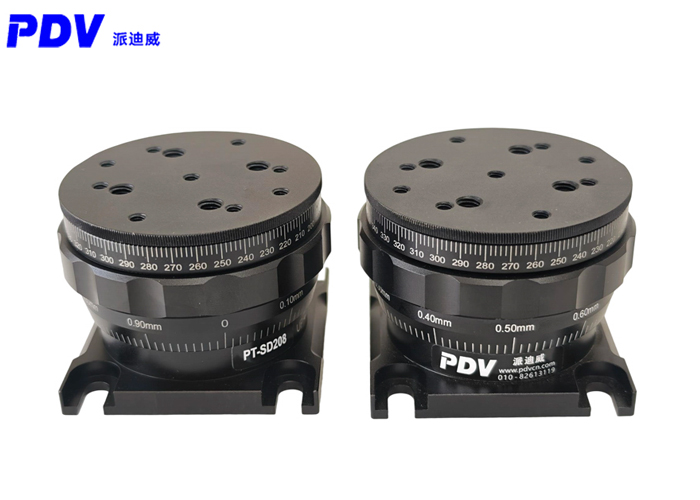

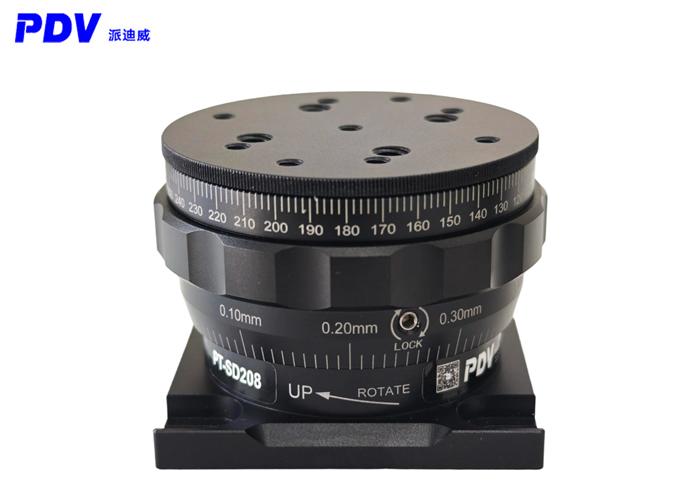

The height adjustable rotary table is a compact installation platform, whose motion range can be locked, and the optical elements can be firmly and stably installed at any height without swinging. The sector adjusting ring can provide 26mm non rotating vertical travel with a scale of 0.01mm. And lock the position with the set screw on the side. The rotary platform is provided with a knurled wheel for rough adjustment, and the scale interval of the knurled wheel is 2 °. The platform can be rotated 360 ° to roughly adjust and lock the position.
M4 and M6 mounting holes are provided on the top platform for connecting other components. It is used together with the pressure arm to provide the pressure holding force for the adjustment frame/mounting base of the platform, and can easily and safely fix the prism and cube beam splitter through the screw hole screwed into the top of the platform.
There are 4 countersunk holes at the bottom, and the base is firmly fixed at the required position with M6 cap screws to prevent accidental adjustment.
