Export PDV PT36-40/60/80/100/125 XY Manual Multidimensional Combination Platform - Manual Multi-axis Stage, Two-Axis High Load Tilt Platform, Manual Multi-axis Stage For Sale

Specification:

Model	PT36-40	PT36-60	PT36-80	PT36-100	PT36-125
Turntable diameter	Φ40	Φ60	Φ80	Φ100	Φ125
XY countertops	40*40mm	60*60mm	80*80mm	100*100mm	125*125mm
The reading	1′26″/circle	55″/circle	45″/circle	34″/circle	32″/circle
XY trip	±6.5mm	±6.5mm	±12.5mm	X shaft：±12.5mm/±11.5mmYshaft12.5mm	Xshaft25mmYshaft25mm
bearing	2kgf(29.4N)	3kgf(29.4N)	4kgf(29.4N)	15kgf(147N)	20kgf(196N)
parallelism	50μm
eccentricity	50μm
Material surface treatement	Aluminum - black anodized

Product details:

Service:

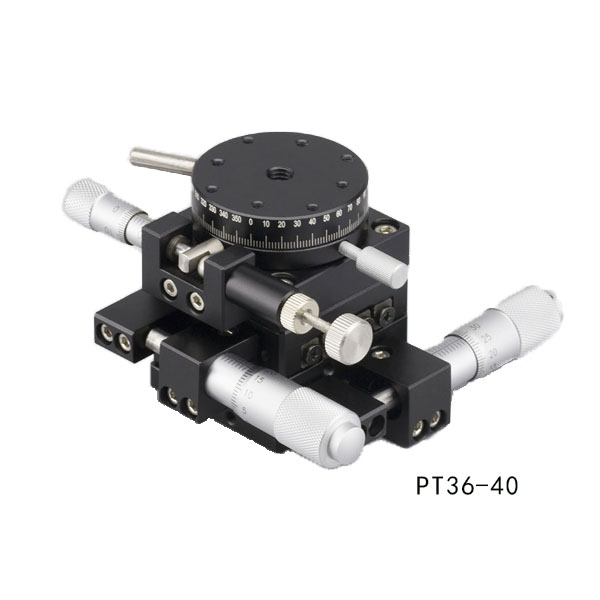

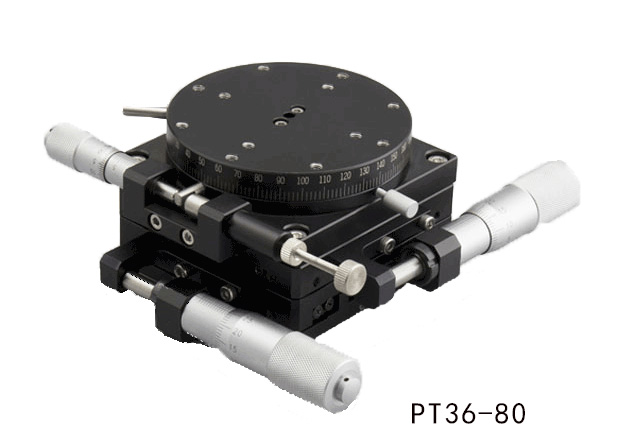

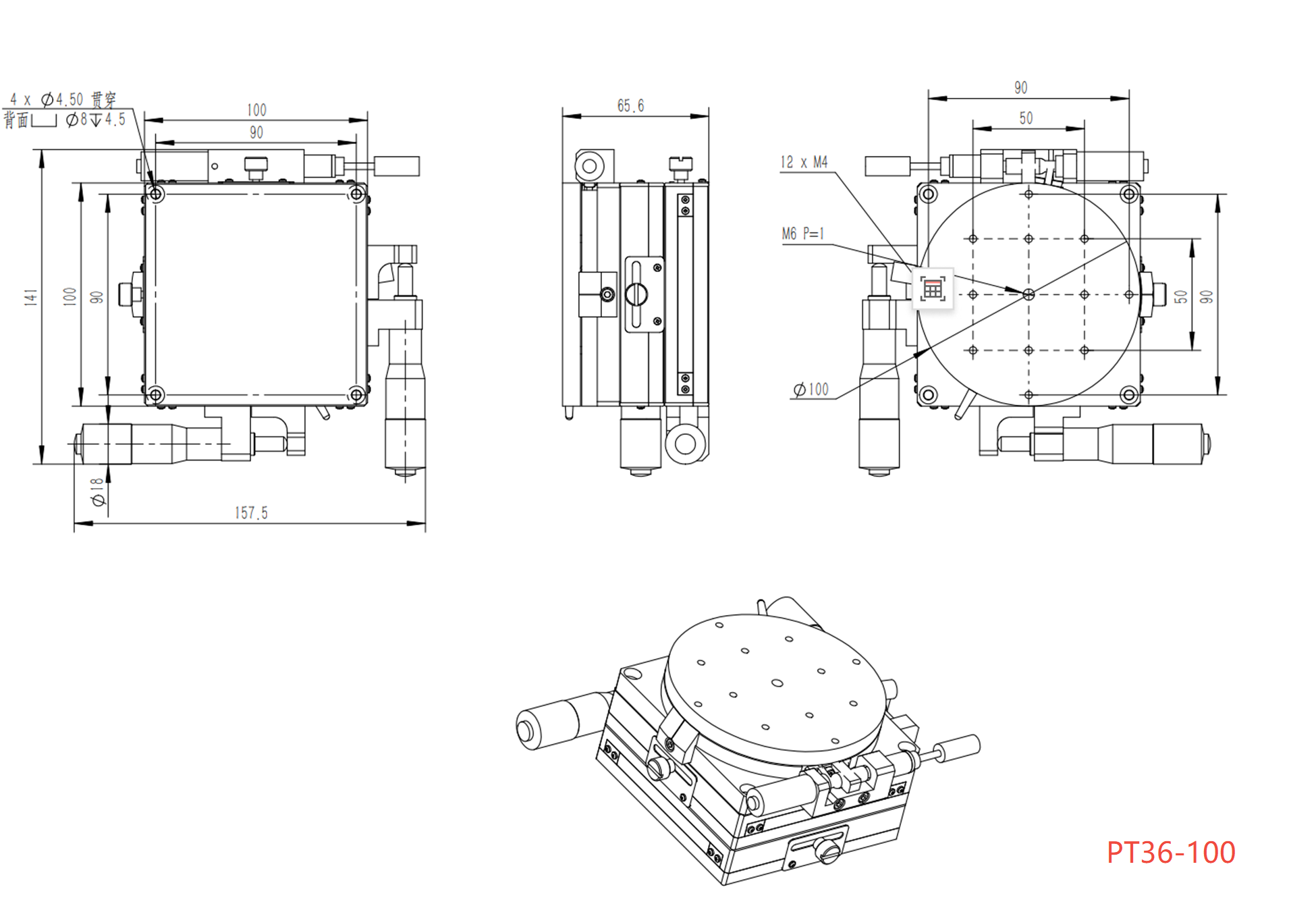

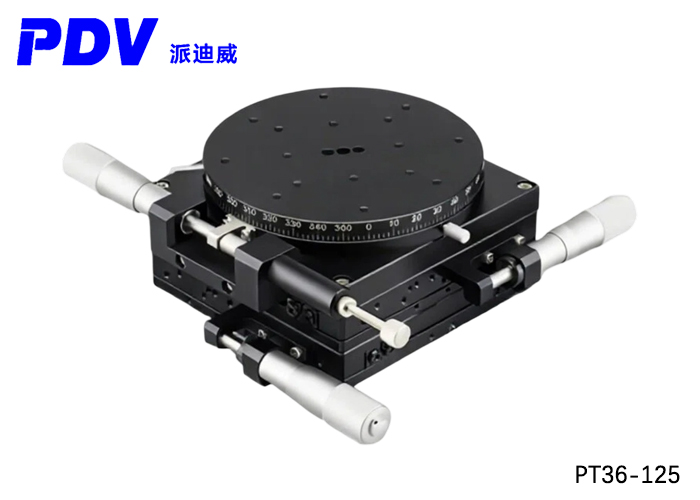

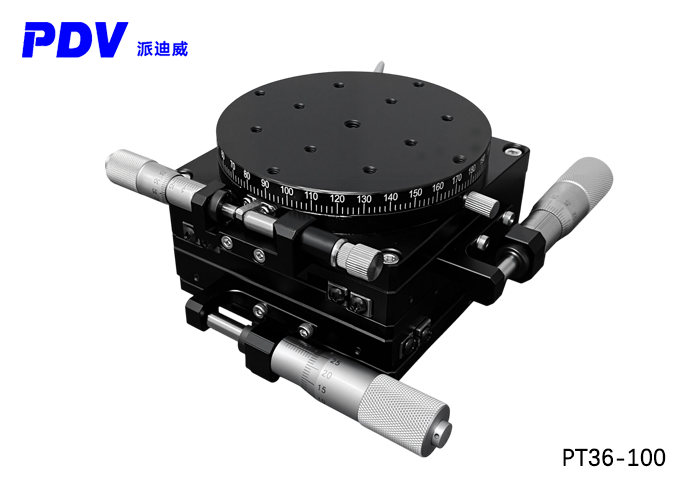

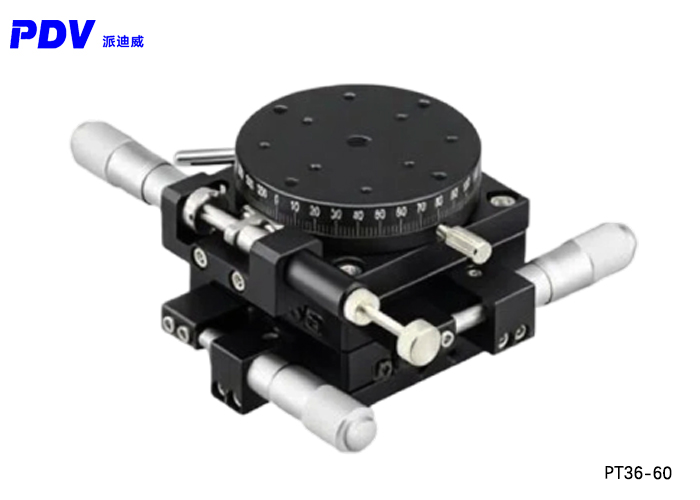

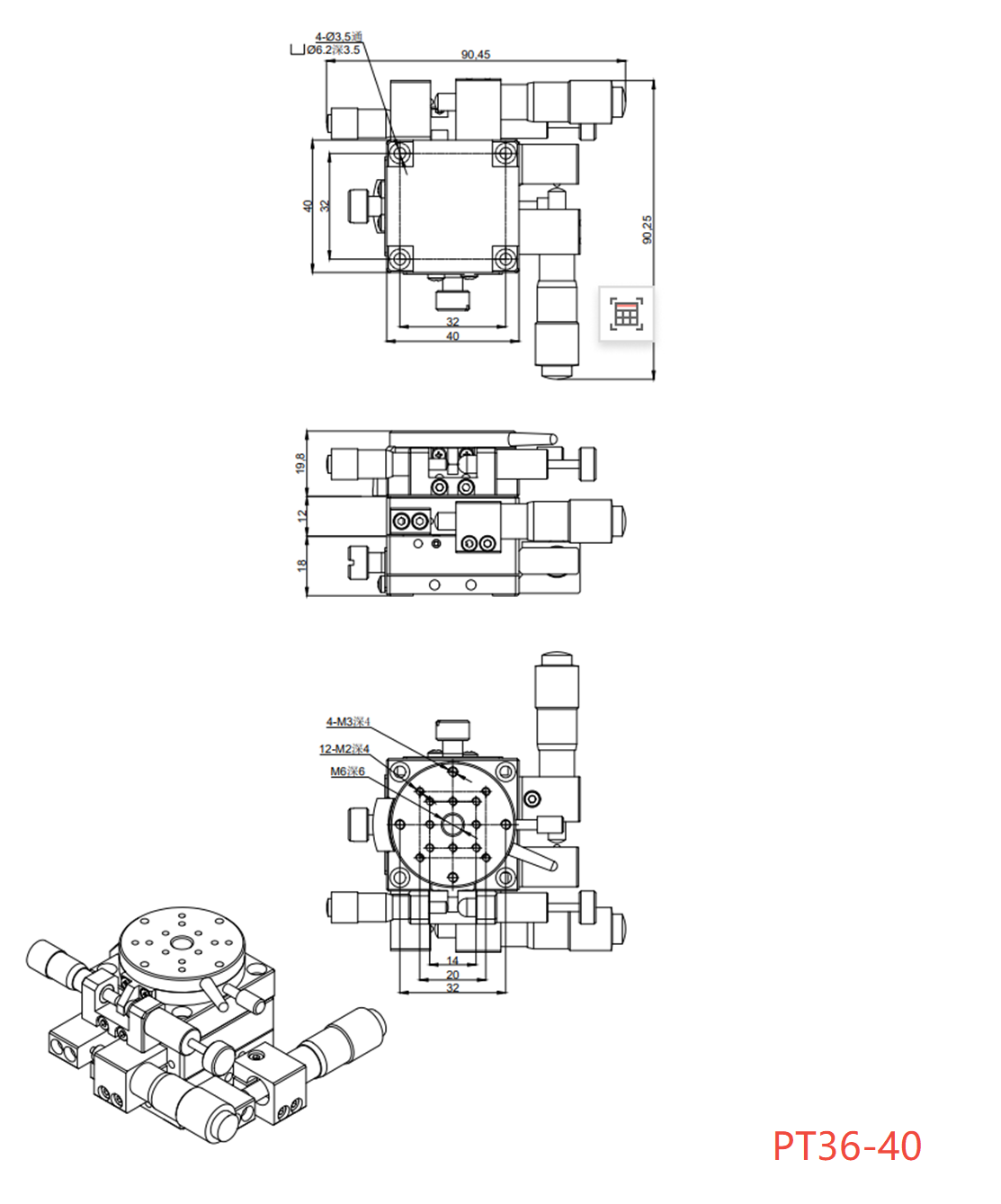

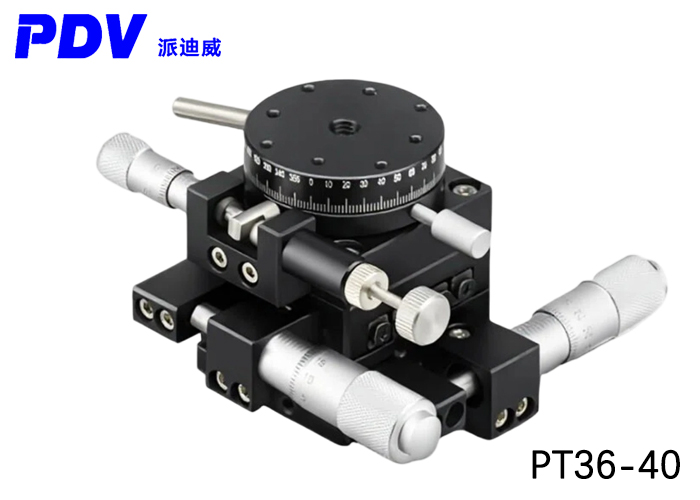

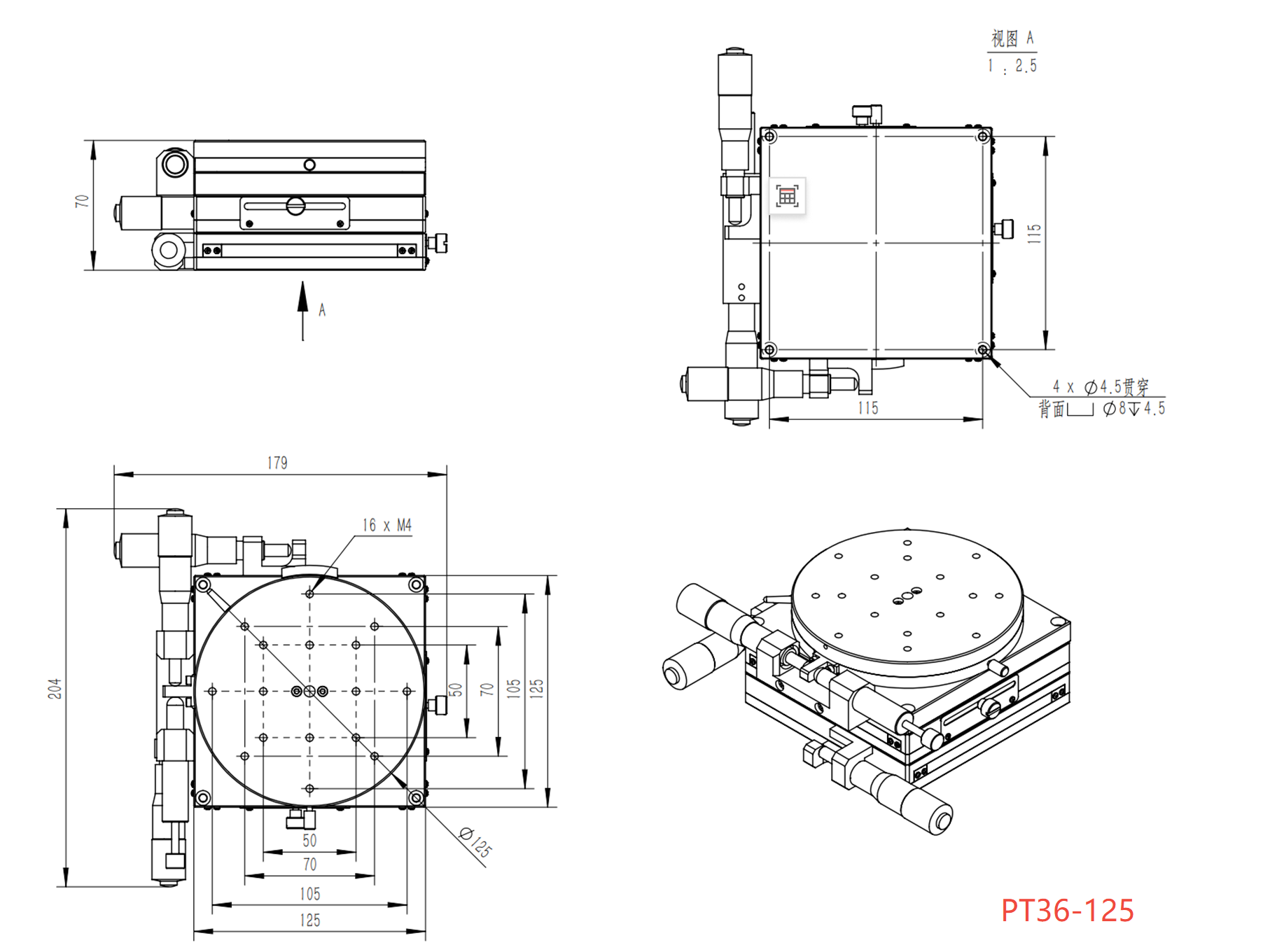

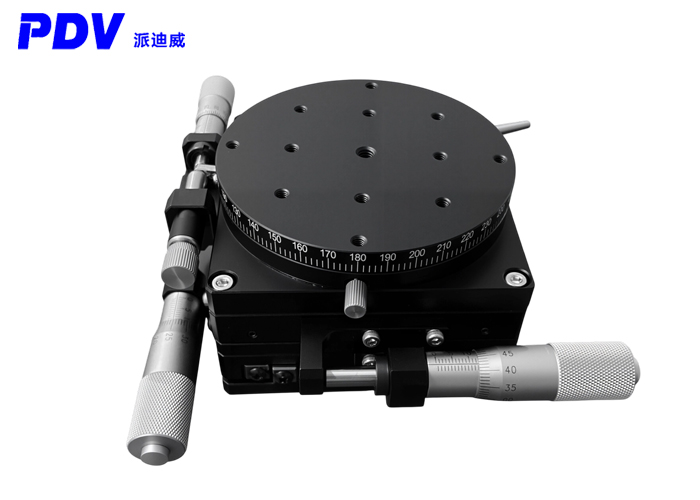

PDV PT36-40/60/80/100/125 XY Manual Multidimensional Combination Platform XY Theta Axis Displacement Platform

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us.As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
