Product Name: Six Dimensional Manual Combination Stage Linear Lifting Rotation Goniometer SDZ-603M

Share
Specification:

SDZ-703M Manual Six Dimensional Combination Stage

Product Composition:

1 manual lab jack PT-SD13M, 2 goniometer stages PT-SD308, 1 XY linear stage PT-XY6, 1 rotary stage PT-SD206.


Product details:

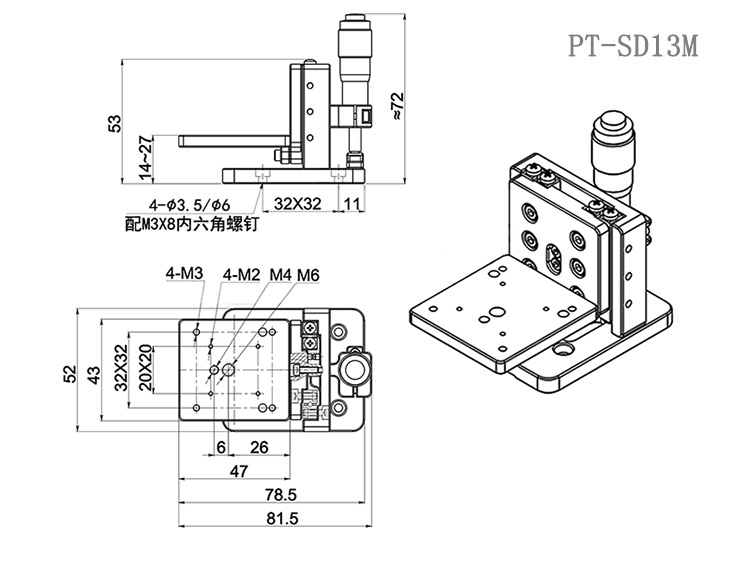

Model

PT-SD13M

Travel

13

Platform Size

43×47

reading(μm)

10

bearing(kgf)

2

dead weight (kg)

0.22

Driving position

vertical

Straightness(μm)

6

guide

Cross roller guide

texture of material

Aluminum alloy (black oxidation treatment)


Six Dimensional Manual Combination Stage Linear Lifting Rotation Goniometer SDZ-603M


Model

PT-SD308

Platform Szie

65mm×65mm

Rotation Range

±15°

Height of Rotation Center

50 mm

Deviation of Rotation Center

φ0.05 mm

Drive Mechanism

Worm Gear

Travel Guide

V-guide + ball

Drive position

Central drive

scale

reading

6′

adjustment

3″/10 subdivision

Yaw

80″

tilt

60″

load bearing

10kg

dead weight

0.52kg

Material

aluminium alloy

surface treatment

Black-Anodized


Six Dimensional Manual Combination Stage Linear Lifting Rotation Goniometer SDZ-603M


Model

PT-XY60-L

Platform Size

60×60mm

Trip

±6.5mm(Customizable 12.5mm)

load

49N(5Kgf)

Material

Aluminum Alloy (Customizable Iron Material)

scale

0.01mm

accuracy

0.01mm

Parallelism

0.06mm

weight

0.48kg


Six Dimensional Manual Combination Stage Linear Lifting Rotation Goniometer SDZ-603M

Model

PT-SD206

Mesa Diameter

φ82mm

Drive Type

Micrometer Head In Side

Adjusting Range

Coarse 360° Fine ±10°

Score

Reading

2′

Adjustment

15″

Load Capacity

5kg

Surface Roundness

60μ

Transversal Deviation

30μ

Parallelism

60μ

Weight

0.5kg

Material

Aluminum Alloy

Surface Treatment

Black-Anodized


Six Dimensional Manual Combination Stage Linear Lifting Rotation Goniometer SDZ-603M

Advantage:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.
