Model Number | PX110-100 |
Diameter of Platform | φ100mm |
Drive Mechanism | Worm Gear |
Adjustment Range | 360° |
Scribe | 2° |
Reading | 12′ |
Adjustment | 36″ |
Load Capacity | 15kg |
End jump | 30μ |
Eccentricity | 15μ |
Parallelism | 30μ |
Weight | 1.2kg |
Material | Duralumin |
Surface Treatment | Black-Anodized |

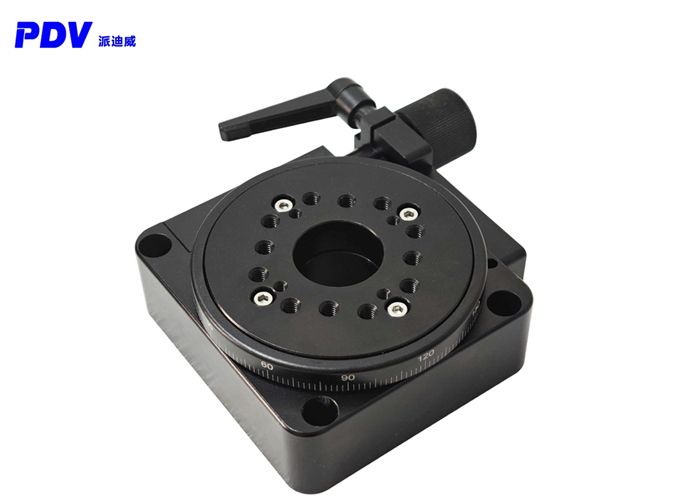

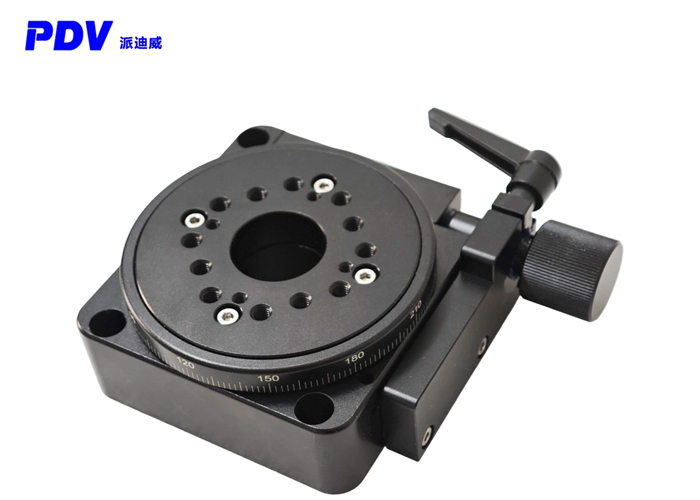

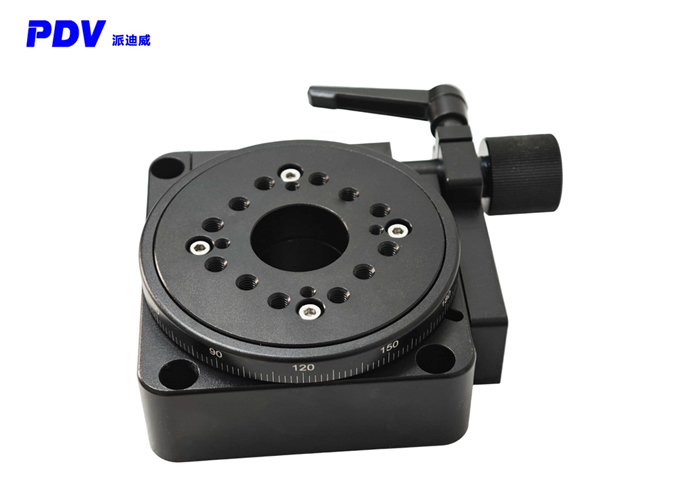

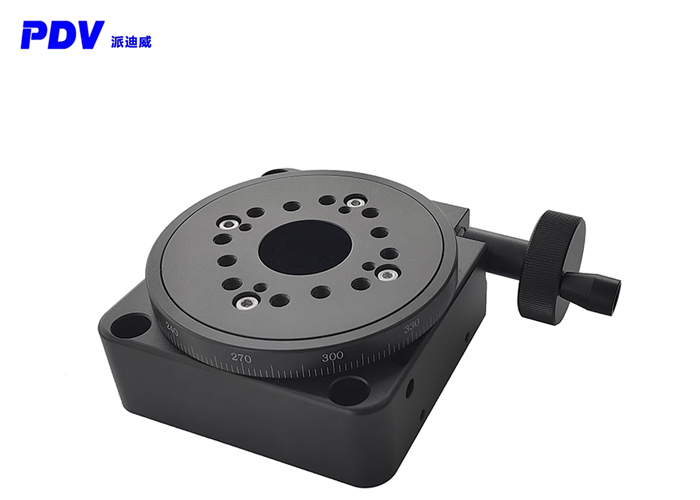

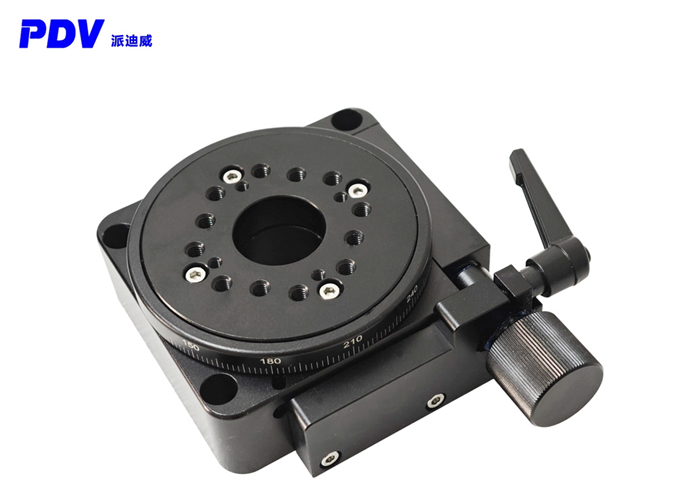

Manual Rotary Stage: PX110-100
Features:
■ the table can be adjusted by 360 ° rotation.
■ 360 ° engraving on the table for easy reading.
■ precision shafting design, adjustable shafting clearance and good stability.
■ finish machining worm gear and worm drive, with large reduction ratio, high precision and large bearing capacity.
■ empty return structure, worm gear and worm fully meshed, reducing the empty return of table movement.
■ there are connecting holes with standard hole spacing at the upper and lower parts, which is convenient to connect with other displacement tables to form a multi-dimensional mobile table.
We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.
Have the industry leading level of the designer, can strictly grasp the product design and processing precision.
We have experienced and skilled assembly master.
Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.
If our standard products do not meet your requirements, we can customize them according to your requirements.
We are glad that you can cooperate with us.As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use.
