Model Number | PT-R160 | PT-R200 |
Table Diameter | 160mm | 200mm |
Table Thickness | 30mm | 35mm |
Differential Head Accuracy | 0.01 | 0.01 |
Movement | 0.05° | 0.05° |
Load Capacity | 78.4N（8.0kgf） | 490N（49kgf） |
Fixed Mode | Locking knob | Locking knob |
Material Surface | Aluminum Alloy (Black-Anodized) | Aluminum Alloy (Black-Anodized) |
Amount Of Movement | Coarse: 360° Fine: ±5° | Coarse: 360° Fine: ±5° |
| Weight（kg） | 1.98 | 2.96 |

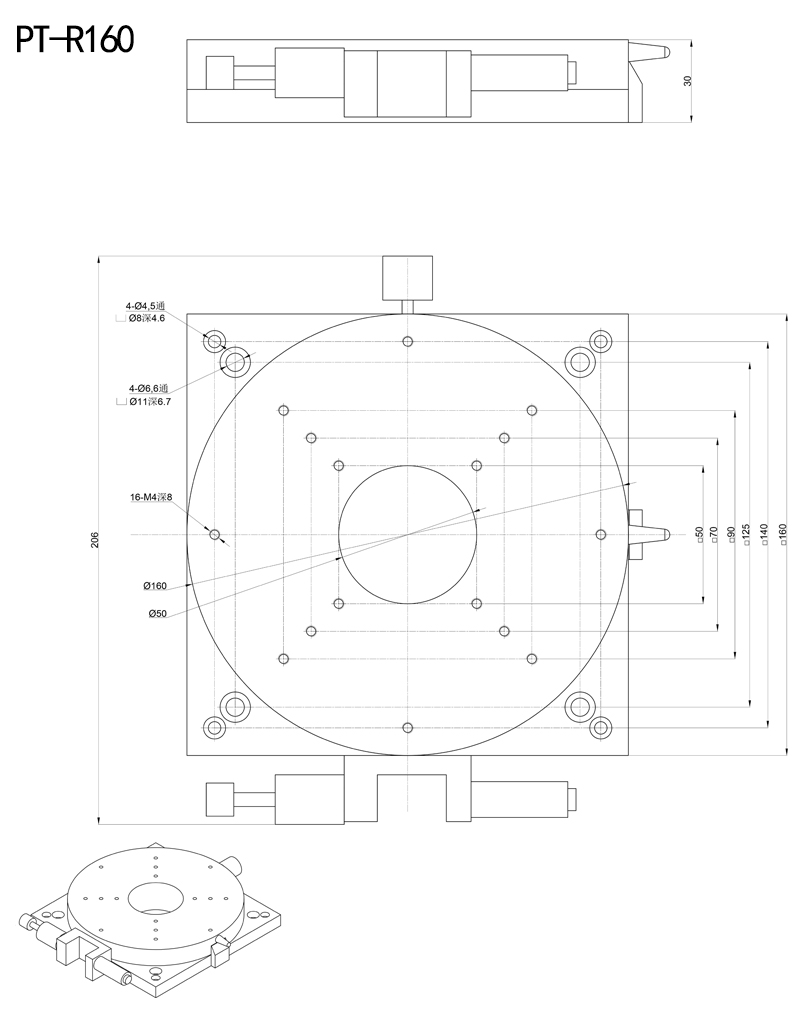

Manual Rotary Stage PT-R160
Manual Rotary Stage PT-R200
1. The main body is made of aluminum alloy, realizing lightweight.
2. 360 degree large angle adjustment is available for LED lighting, sensors and other occasions requiring large angle positioning adjustment.
3. The body surface is treated with black anodizing, which can effectively prevent light reflection, especially in the optical field.
