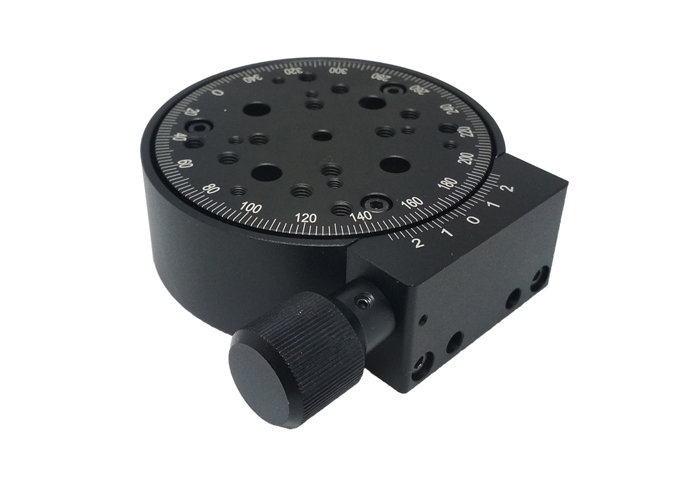

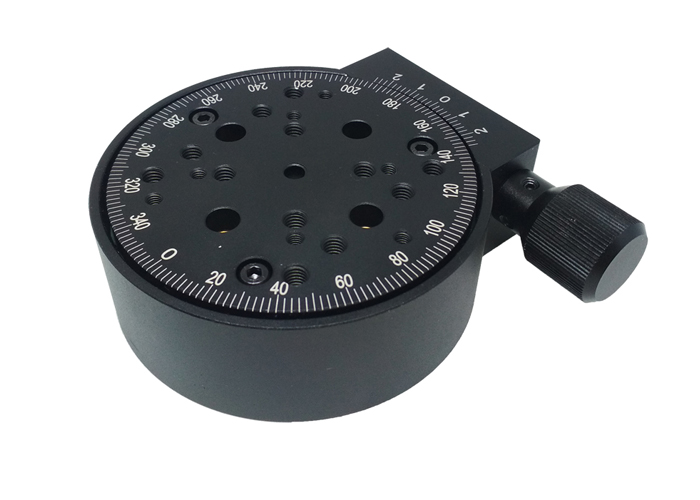

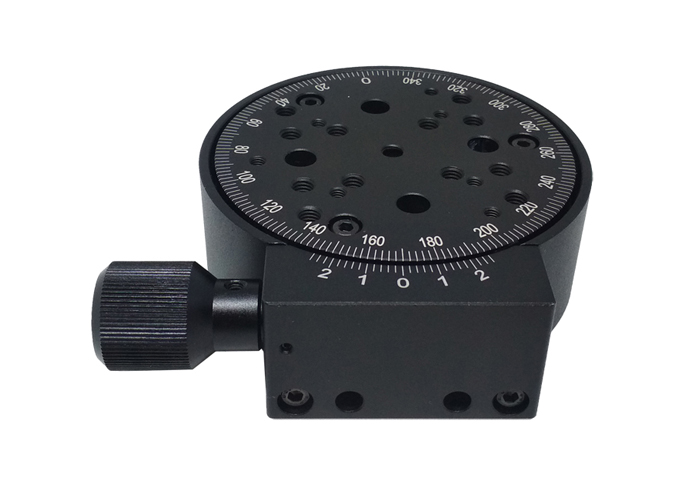

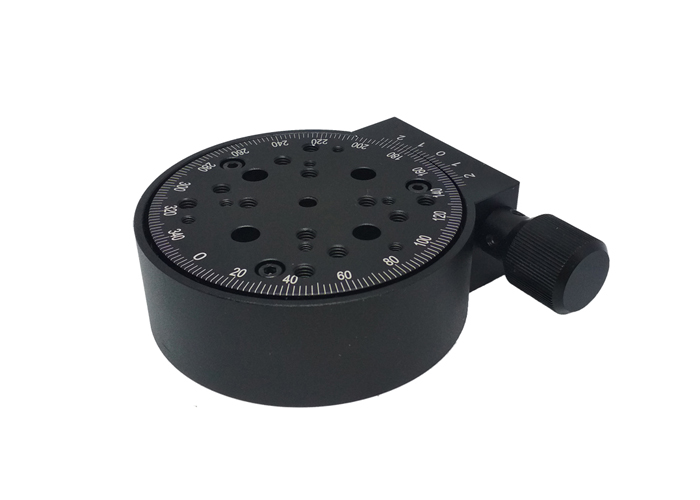

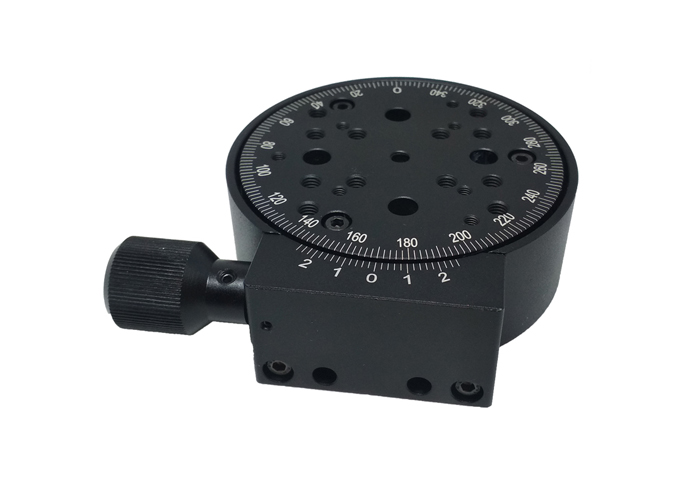

Worm-Driven, 360° Continuous Rotation Stage - Manual Rotation Stage, R Axis Manual Rotation Stage, Manual Rotation Stage Manufacturer

Specification:

◆ Item Number: PT-SD203

◆ Rotation Range: 360°

◆ Diameter of Platform: Ø100mm

◆ Actuator Type: Worm Gear

◆ Graduations: 2°

◆ Readout :12’

◆ Adjust Distance:36"

◆ Surface Roundness:30μm

◆ Transversal Deviation: 15μm

◆ Parallelism: 30μm

◆ Material – Finish: Aluminum Alloy - Black-Anodized

◆ Load Capacity: 45Kgs

◆ Weight: 0.8kgs

R AxisManual Rotation Stages 360 degree rotation stage,Rotary Stage PT-SD203

Product details:

Advantage:

PDV has many different specifications manual translation(linear) stage, including manual stage, linear stage, translation stage ,manual translation stage, Z axis lifting platform、Lab Jack、High-Load Vertical Stages, 360 degree rotation stage、Rotary Stage、Angle adjustment stage and so on .

We stock a large stock.

Service:

R AxisManual Rotation Stages 360 degree rotation stage,Rotary Stage PT-SD203

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
