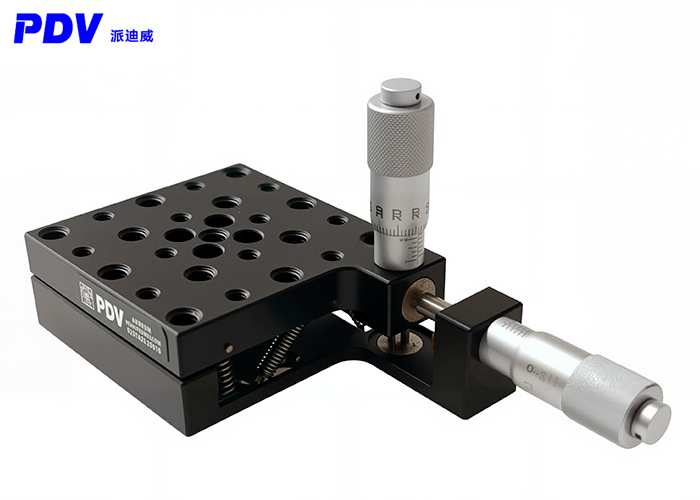

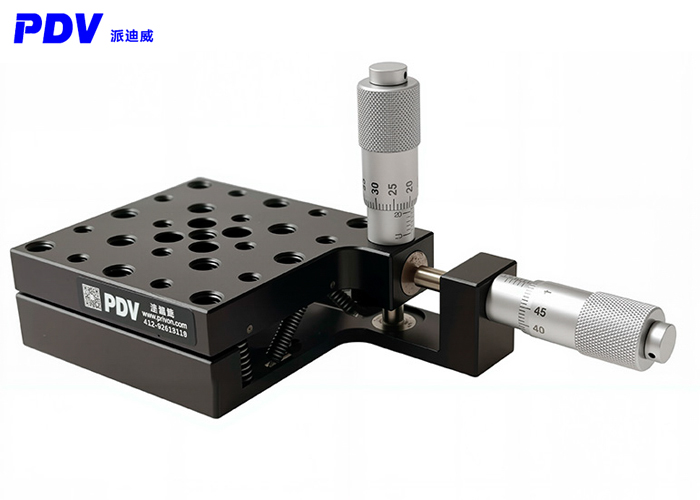

Product Name: Manual Two Axis Tilt Rotary Stage XY Axis Pitch Deflection Platform PT-QX10

Share
Specification:

Model Number

PT-QX10

Displacement Axis

XY-axis

Drive Mode

Micrometer Head

Thread Type

M6M4

Load Capacity

3kg

Platform Size

60mm*60mm

Height

24.5mm

Tilt Angle

±5°(x-axis)

Rotation Angle

±2°(y-axis)

Material

#7075 Aluminium Alloy

Weight

210g


Product details:

Manual Two Axis Tilt Rotary Stage XY Axis Pitch Deflection Platform

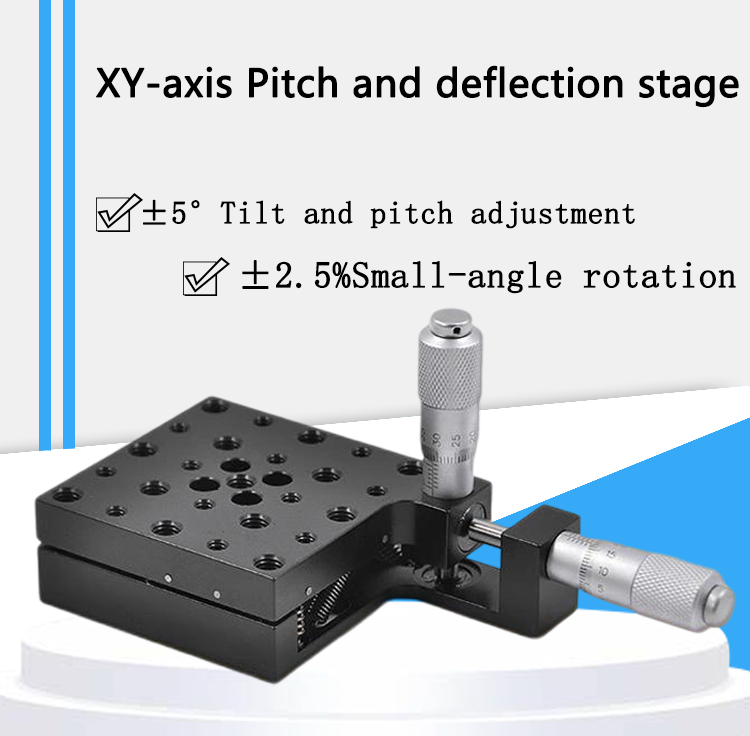

Product characteristics:

1. PT-QX10 has ± 2.5 ° small angle rotation function and ± 5 ° tilt and pitch adjustment;

2. The 6mm-4mm threaded holes on the working face are regularly distributed;

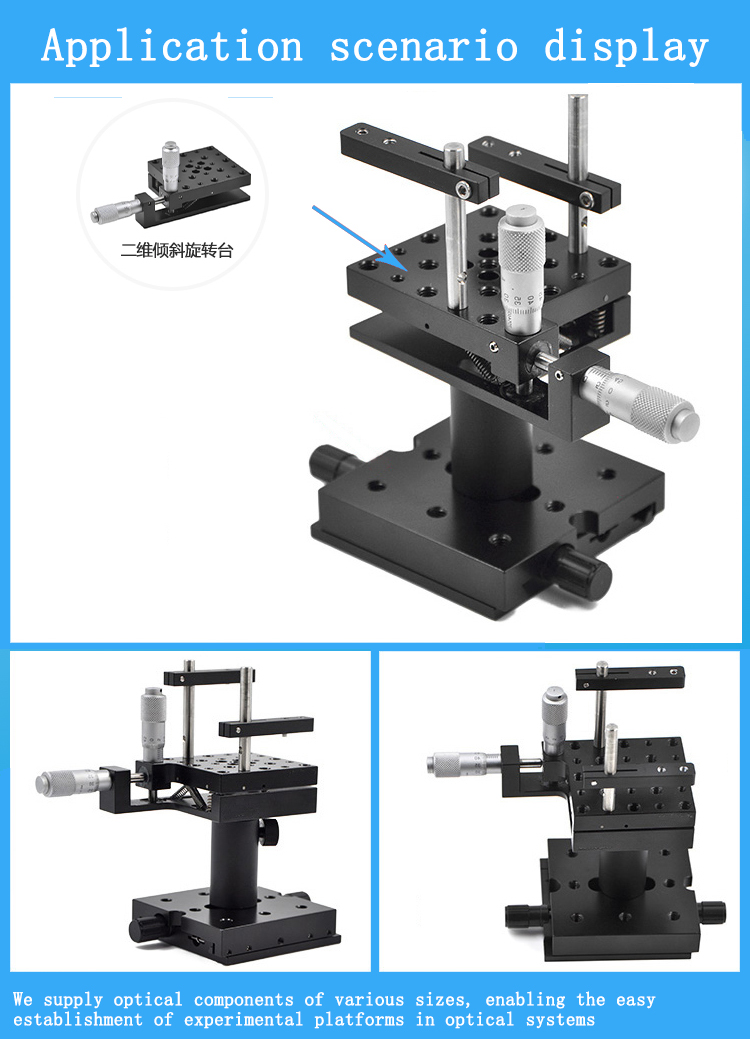

3. Different specifications of laser light sources and optical elements can be integrated and installed;

4. The material adopts industrial grade # 7075 aluminum alloy oxidation and blackening treatment;

5. The differential adjusting shaft can precisely adjust the degree;

6. The use of spring return increases flexibility.

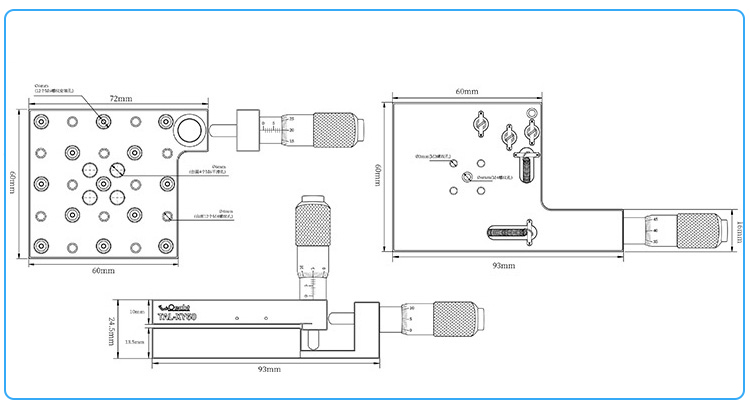

Product dimension drawing:

Manual Two Axis Tilt Rotary Stage XY Axis Pitch Deflection Platform

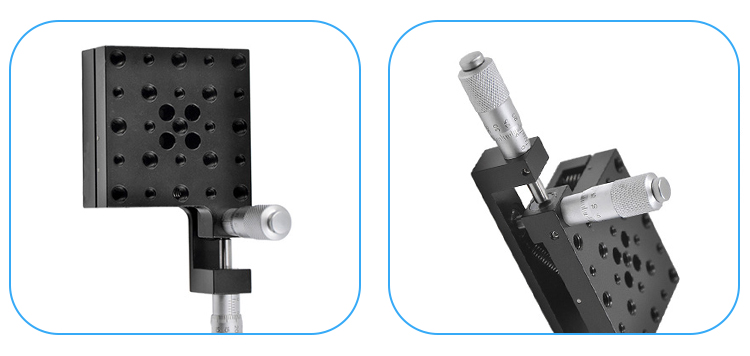

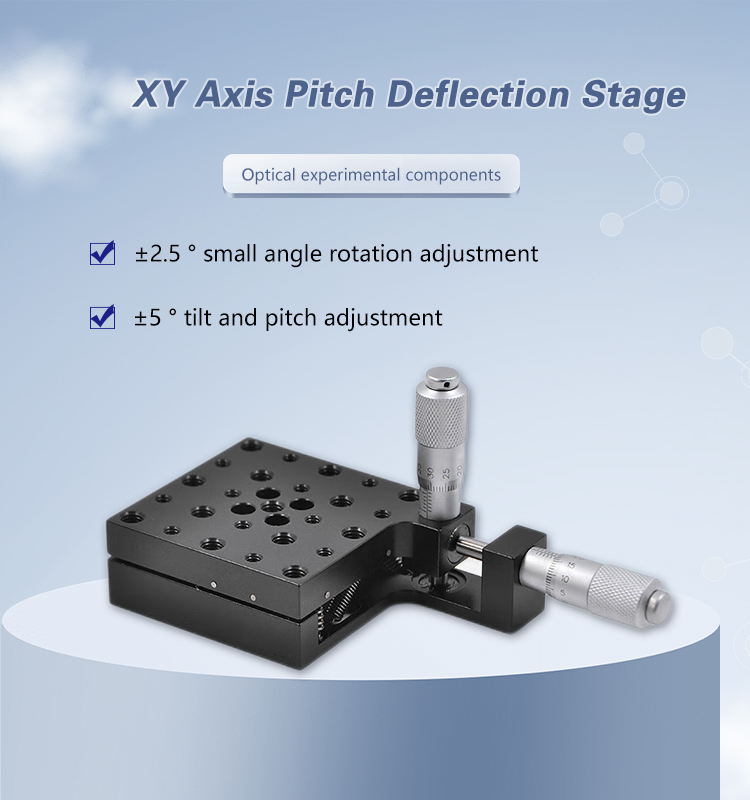

The angle can be adjusted in a small range (x axis: 2.5 ° earth small angle rotation adjustment; y axis: 5 ° earth tilt and pitch adjustment). The differential head is used for operation, which is easy to use.

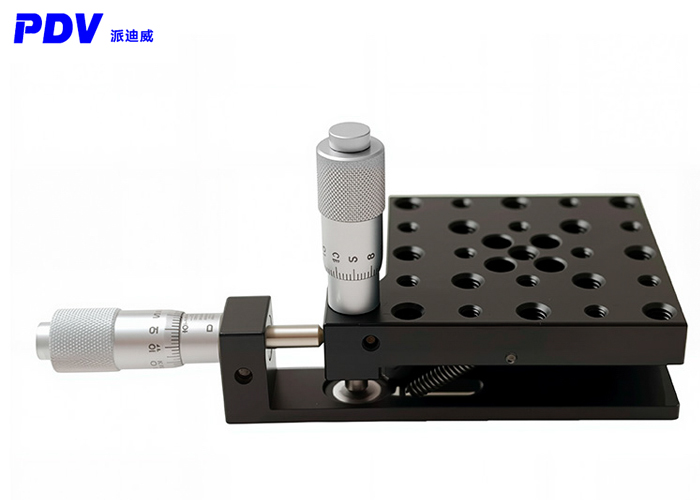

Manual Two Axis Tilt Rotary Stage XY Axis Pitch Deflection Platform

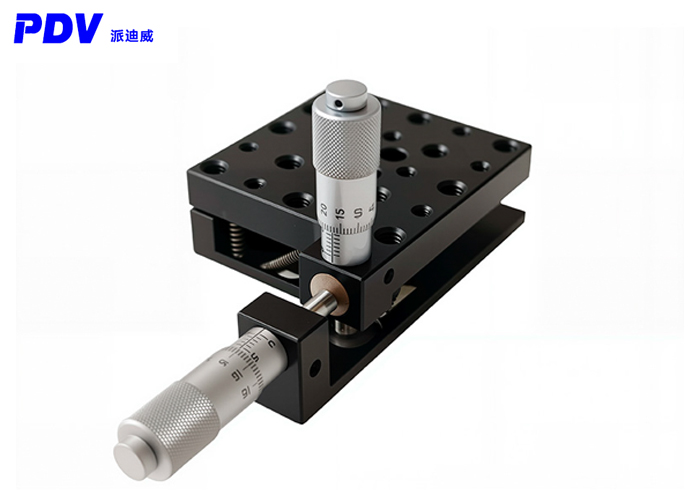

The bottom of the product has a mounting screw hole, which can be directly connected to other worktops; The upper and lower parts are equipped with connection holes with standard hole pitch, which is convenient for combination with other series of products.

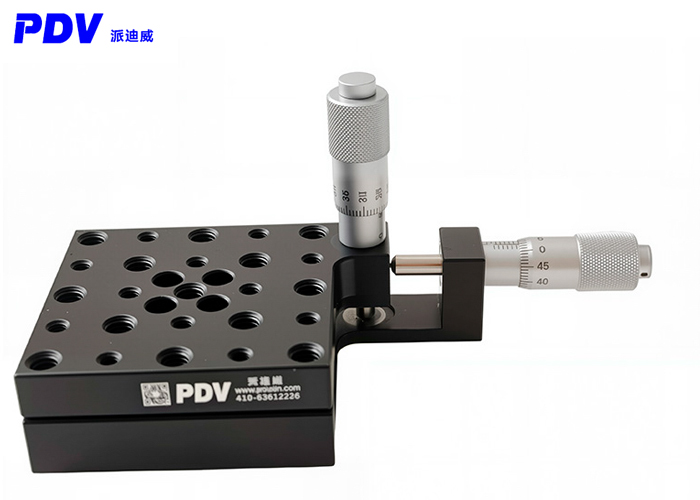

Manual Two Axis Tilt Rotary Stage XY Axis Pitch Deflection Platform
