Model Number | PT-SD76 | PT-SD77 |
Platform Size | 60mm*60mm | 60mm*60mm |
Mobile Mechanism | Hand Screw Type | Hand Screw Type |
Central Hole | Ø15mm/Ø6.2mm | Ø15mm/Ø20mm |
Travel Range | ±2° | About 40′0° per week |
Load | 4kgf | 4kgf |
Weight | 0.161kg | 0.156kg |
Material | 7075 aluminum alloy | 7075 aluminum alloy |

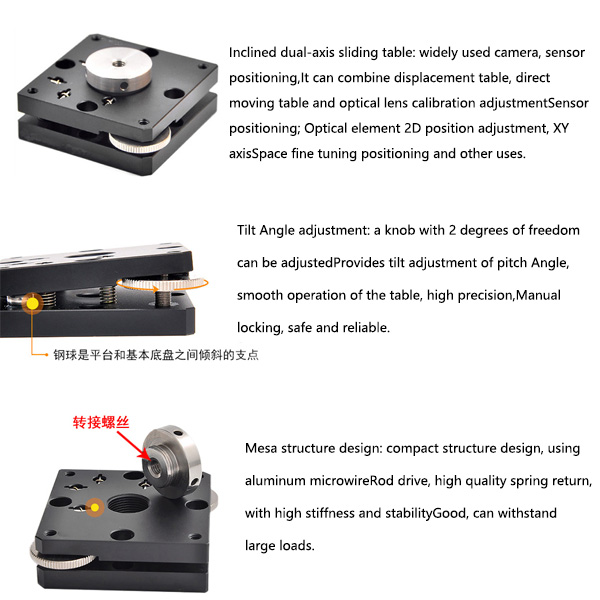

The manual horizontal tilt stage is widely used for positioning with cameras, sensors, etc. It can be combined with displacement tables, direct motion tables, optical lens calibration and adjustment sensors for positioning; Used for two-dimensional position adjustment of optical components, fine adjustment of XY axis spatial positioning, and other purposes.

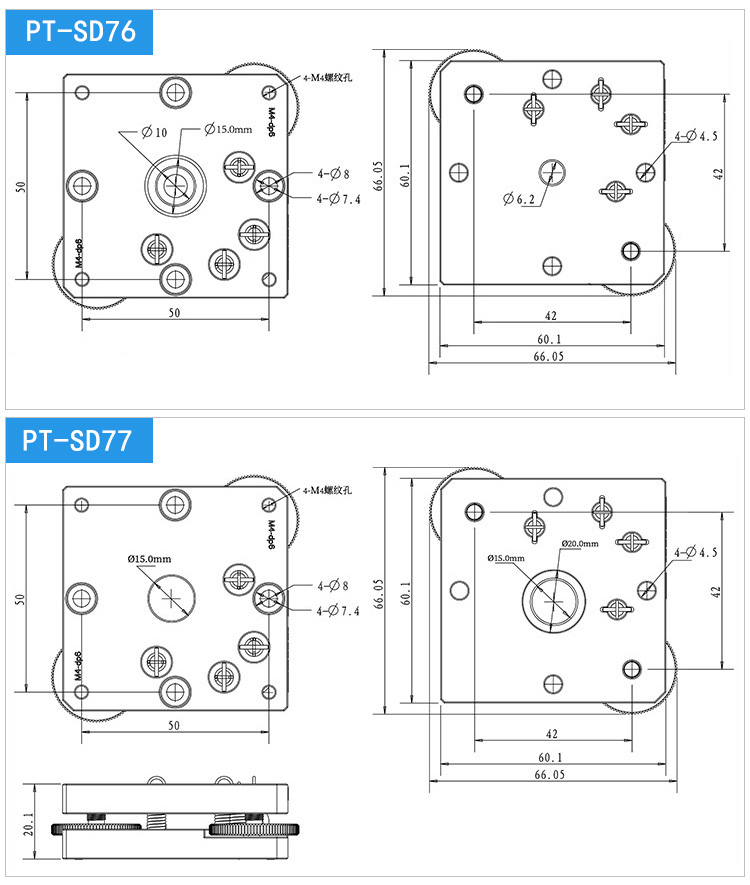

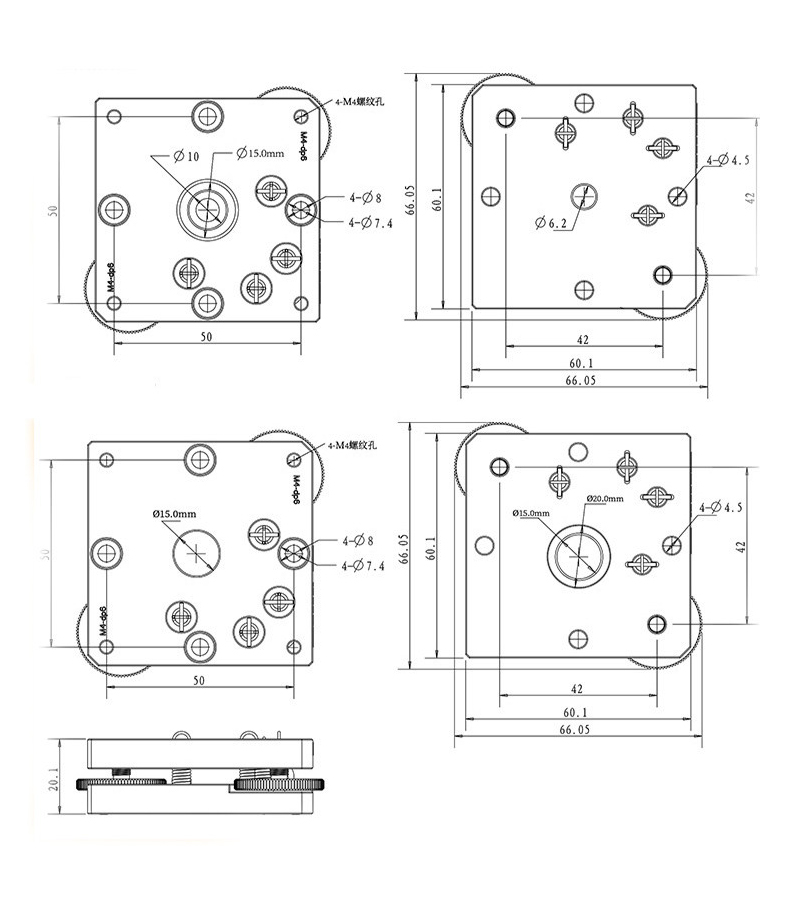

Product Dimensional Drawing:
We are glad that you can cooperate with us. In order to save your time, when selecting products, please check the parameters or communicate with our sales team to avoid delaying your construction period due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
