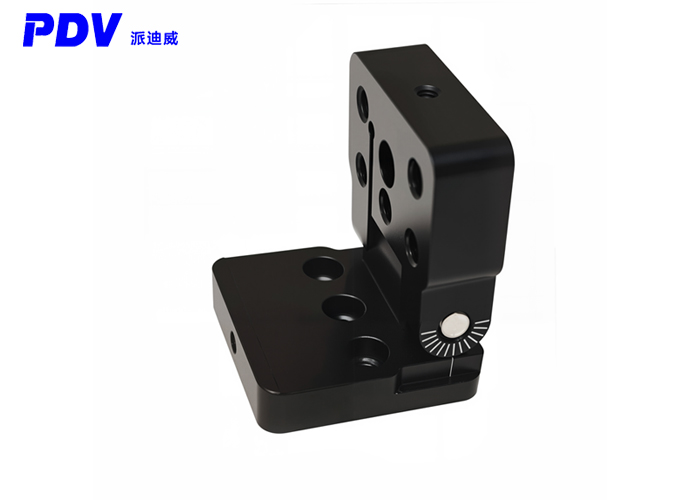

The platform size of this folding frame is 40×40mm, and it can be installed horizontally and vertically. When the M4 countersunk hole or M6 screw hole in the center of the base plate is used, the top plate can be locked at any Angle between 0 and 90° relative to the base plate. The top plate can be locked at any Angle between 0 and 180° relative to the bottom plate when the M4 screw holes on the side of the bottom plate are used. The side of the platform has a scale every 15° for auxiliary reading when Angle adjustment. Depending on the usage scenario, the folding frame can be switched between left/right hand systems. When switching, just remove the locking screw, flip the bottom plate and reassemble it.
Product parameters:
| Model number | PT-QX40 |
| Host material | Aluminium alloy |
| Be self-possessed | 83g |
| Table size | 40×40 |
| Angle adjustment | 0-180° |
| Mounting hole | M4 |
Product Size:
