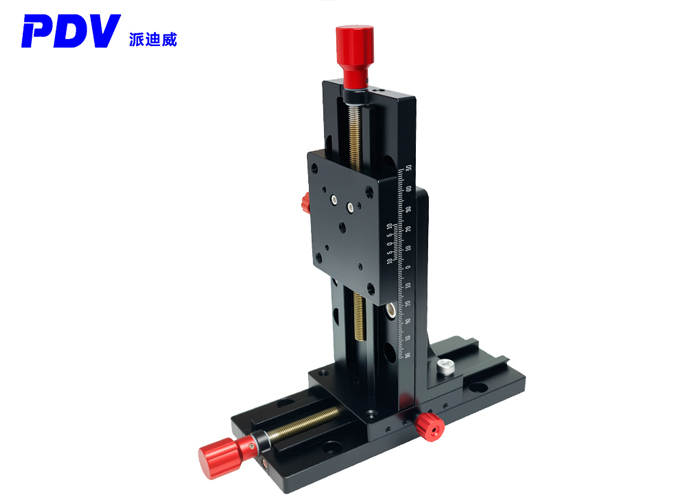

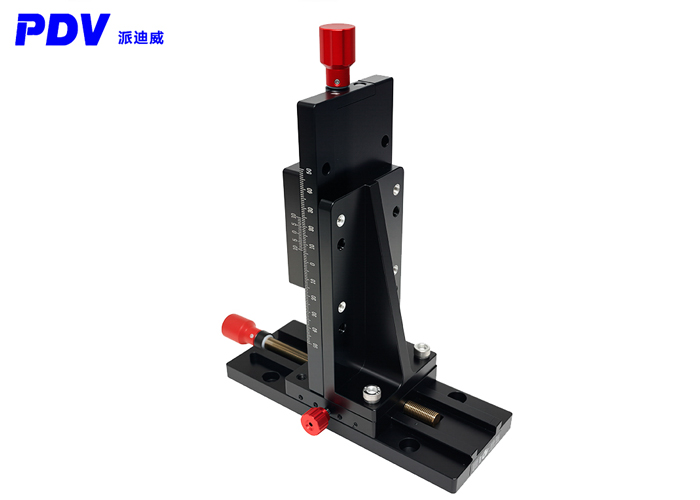

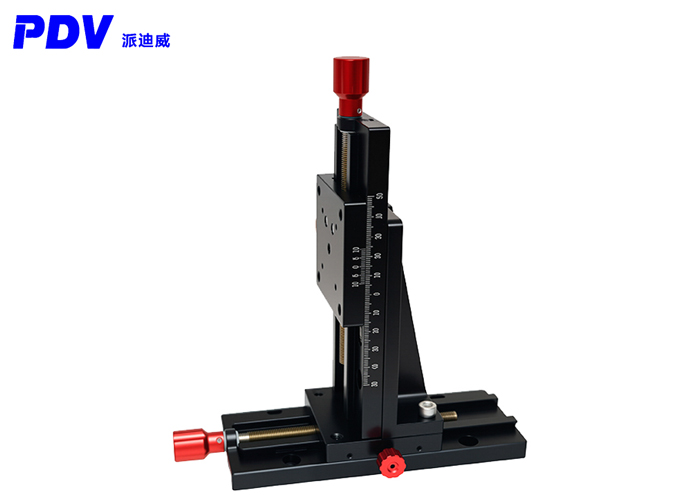

The main material of PT-XZ65 series products is aluminum alloy, the surface is oxidized and blackened, and the dovetail guide rail is used for guidance, which has strong load capacity. Driven by grinding screw, the grinding screw has small pitch, high sensitivity, scale on the side and locking function, complete functions and convenient use.
Product parameter：
| Model | PT-XZ65(25) | PT-XZ65(50) | PT-XZ65(75) | PT-XZ65(100) |
| Travel (mm) | 25 | 50 | 75 | 100 |
| Table size (mm) | 65×65 | |||
| Main body length (mm) | 90 | 115 | 140 | 165 |
| Thickness (mm) | 20 | |||
| Slideway | Dovetail guide rail | |||
| Type of drive | Grinding screw，Ø8×1 | |||
| Driving position | Center drive | |||
| Main material and surface treatment | Aluminum alloy, black anodizing treatment | |||
| Dead weight (kg) | 0.3 | 0.35 | 0.4 | 0.5 |
| Reading (mm) | 0.1 | |||
| Horizontal load (kg) | 10 | |||
| Vertical load (kg) | 5 | |||
product size：
