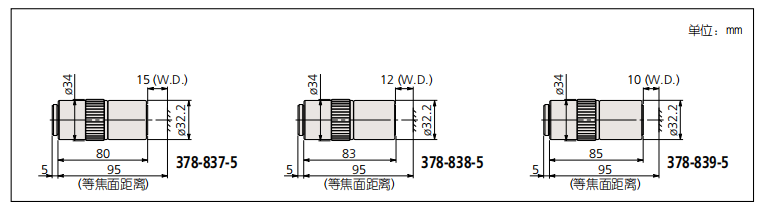

货号 | Mag. | N.A. | W.D. | f | R | D.F. | 视场 1 | 视场 2 | 重量 |
378-837-5 | 20X | 0.36 | 15.0mm | 10mm | 0.8µm | 2.1µm | ø1.2mm | 0.24x0.32mm | 330g |
378-838-5 | 50X | 0.40 | 12.0mm | 4mm | 0.7µm | 1.7µm | ø0.48mm | 0.10x0.13mm | 400g |
378-839-5 | 80X | 0.55 | 10.0mm | 2.5mm | 0.5µm | 0.9µm | ø0.3mm | 0.06x0.08mm | 380g |
注：
这些紫外校正物镜为把工件图像成在景深之内而设计的 (波长在可见光 (波长 =550nm) 和紫外光 (波长 =266nm)范围之间变化时)，所以 M Plan UV 系列适用于使用高频激光束的激光修复。
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.
It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
