The specifications of the electric linear stage are crucial for later use!

Electric linear stage are widely used in scientific research, laser applications, fully automatic measuring and testing equipment, industrial automation, and other fields due to their high accuracy, strong controllability, high practicality, and simple maintenance. The electric linear stage has high motion accuracy, and the positioning accuracy and repeated positioning accuracy can reach the micrometer level.

The main function of the electric linear stage screw is to convert the rotational motion of the motor into linear motion. Electric control linear stage often use ball screws or grinding screws. The rolling friction between the ball screw and the nut is formed by the steel ball, which has smooth movement, high transmission efficiency, and is easy to achieve high-speed operation. The diameter of the steel ball can be changed or double nuts can be used to effectively solve the axial clearance.

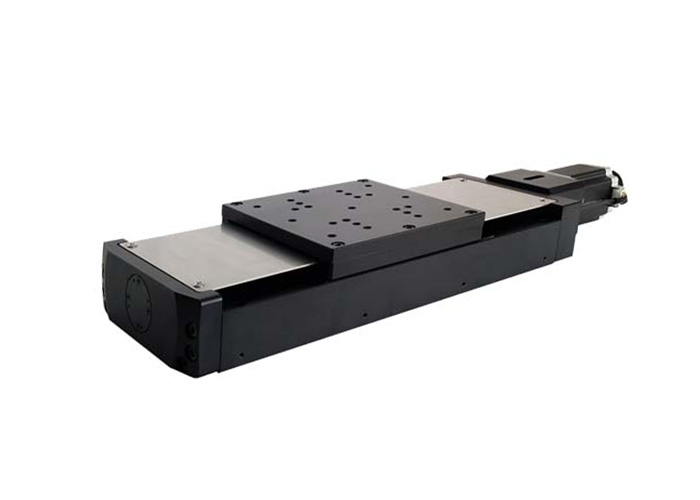

The electric control linear stage adopts ball screws, precision transmission adopts grinding grade ball screws, guide rails adopt linear bearings, elastic couplings, and other imported high-quality products, providing overall quality assurance. The left and right Limit switch and zero position photoelectric switches are set to protect the product and facilitate use. Standard interface for convenient signal transmission. The rear of the motor is equipped with a handwheel for manual adjustment. The standard installation hole position is suitable for forming a multi-dimensional electronic displacement table and is convenient for matching with other series of products of our company. Suitable for users with low load and high precision requirements.

When selecting an electric linear stage, you need to determine the displacement stroke, load size, displacement accuracy, resolution, desired external dimensions, and whether it is quantitative. The electric linear stage controlled by the motor can be subdivided into circuits, with a resolution of up to submicron level. It can also be controlled by a computer to achieve automation purposes. Electric linear stage often use ball screw transmission, with circular linear bearings or linear sliders as guides, so the stroke can be large, the load can reach 50kg (slow speed can also be improved), and the accuracy can reach the micrometer level, but the price is relatively high.
