Operating Instructions For The Rotary Table

Pulished on Jan. 02, 2019

1. Vertical turntable horizontal rotary dial pneumatic indexing plate, the manual valve or solenoid valve inlet port is connected to the intake port of the cylinder, and the manual valve or the return valve of the solenoid valve is connected to the cylinder to the return port. The hydraulic indexing plate connects the inlet port of the manual valve or the solenoid valve to the oil inlet of the oil cylinder, and the oil return pipe of the manual valve or the solenoid valve connects the cylinder to the oil return port.

2, pneumatic indexing plate, open the ventilation source, open the manual valve or solenoid valve, so that the intake pipe is ventilated, the cylinder reaches the locking state before the line, if the magnetic wire is installed, the locking touch line will light up. See the lock state diagram.

Hydraulic indexing plate, open the oil circuit, open the manual valve or solenoid valve, so that the oil inlet pipe is oiled, and the oil cylinder reaches the locking state before moving. If the magnetic wire is installed, the locking wire will light up. See Lock state diagram.

3, pneumatic indexing plate, processing is completed, change the valve intake direction, at this time in the compressed air from the return port into the cylinder, push the cylinder back, such as the magnetic line, at this time; the retreat magnetic induction line will light up.

Oil pressure indexing plate, after processing, change the oil inlet direction of the valve. At this time, the oil pressure enters the oil cylinder from the air return port, and pushes the oil cylinder to retreat. If the magnetic wire is installed, at this time; the magnetic sensor line will light up, see Return to the state diagram.

The Rotation Stage is an additional instrument mounted on the stage of the polarizing microscope. It consists of three, four or five rotating shafts, which sandwich the sheet between a pair of glass hemispheres of the rotating table. By rotating the rotating shafts, the crystals are tilted in space to achieve the desired orientation for precise The optical constants of the crystals were determined and the minerals were identified.

PDV is specialized in produce Motorized Rotation Stage,Our products are very popular, if you are interested in our products, please contact us as soon as possible.

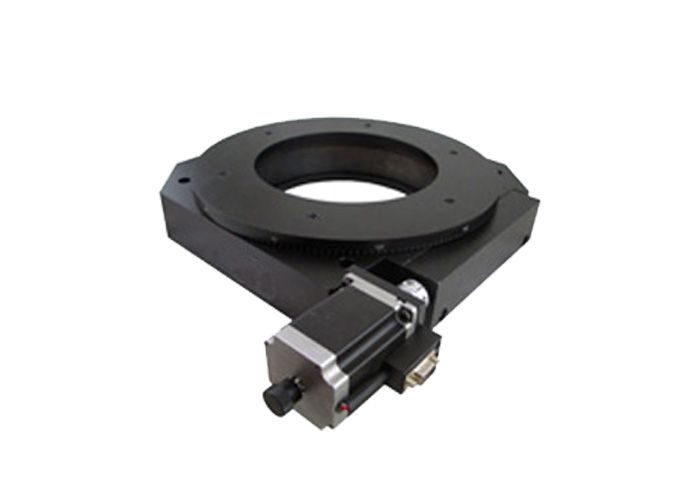

Motorized Rotation Stage
