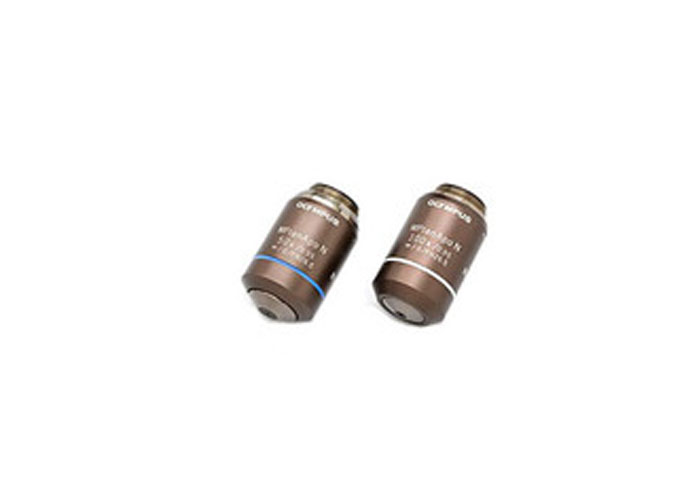

Product Name: M Plan Apochromat MPLAPON

Specification:

Product features:

Dedicated for brightfield microscopy, simple polarized light and DIC (Differential Interference Contrast).

The Plan Apochromat series provides the highest level of chromatic aberration of the Olympus objective lenses. Guaranteed optical performance (wavefront aberration) with a Strehl ratio of 95% or better.

Compatible with the Olympus autofocus unit, ideal for automating the inspection process.

Strehl ratio: Indicates as a percent, the ratio of the proportion of light that an actual optical system can concentrate with respect to the proportion of light concentrated in the image plane (central intensity) by an ideal, aberration-free optical system, with the latter serving as 100%. A higher percentage indicates a higher quality optical system.

Specifications：

Magnification [X]	50	100
Numerical aperture (NA)	0.95	0.95
Working distance (WD) [mm]	0.35	0.35
Objective Field Number	26.5	26.5
Immersion medium	Air/Dry	Air/Dry
Spring loaded	Yes	Yes
Correction collar	N/A	N/A
Correction range of correction collar	N/A	N/A
Iris	N/A	N/A
Correction level of chromatic aberration	Apochromat(APO)	Apochromat(APO)
Parfocalizing distance [mm]	45	45
Back focal plane (BFP) position	-8.0	-8.0
Type of screw thread	W20.32X0.706(RMS)	W20.32X0.706(RMS)
Brightfield(Reflected)	Excellent	Excellent
Brightfield(Transmitted)	Excellent	Excellent
Darkfield(Reflected)	N/A	N/A
Darkfield(Transmitted)	N/A	N/A
DIC(Reflected)	Good	Good
DIC(Transmitted)	N/A	N/A
Phase Contrast	N/A	N/A
Relief Contrast	N/A	N/A
Polarized Light	Limitation	Limitation
Fluorescence (B, G Excitation)	N/A	N/A
UV Fluorescence (at 365nm)	N/A	N/A
Multiphoton	N/A	N/A
TIRF	N/A	N/A
IR	N/A	N/A
WLI	N/A	N/A
Auto Focus	N/A	N/A

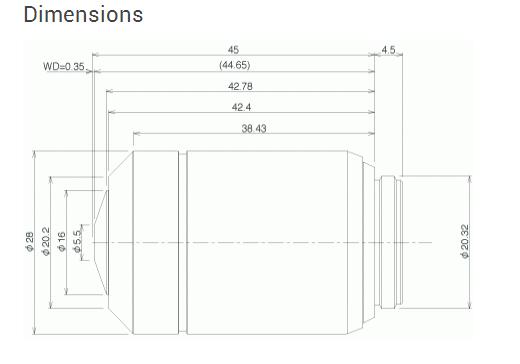

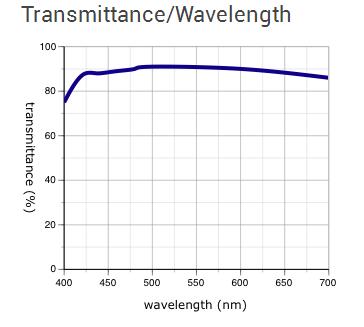

MPLAPON50X

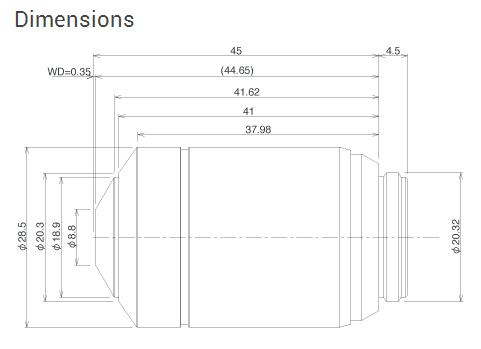

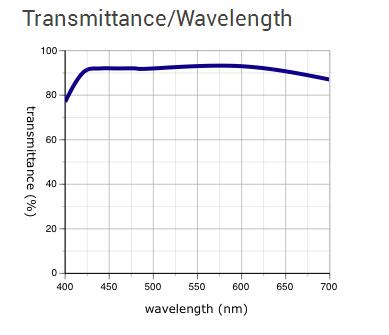

MPLAPON100X
