Attention: Excessive torque can cause the locking screw to break, with a torque of ≤ 3NF
The hand twisted knob adopts a delicate elastic knurled hexagonal M6 locking screw, which has a pre pressing force on the clamped support rod, making it easy to adjust and position;
A 5mm hex wrench can be used to reinforce the clamping. Used to clamp a 12.7mm support rod, which adopts a double line contact with the adjustment support, making the support rod more stable when locking the knob;

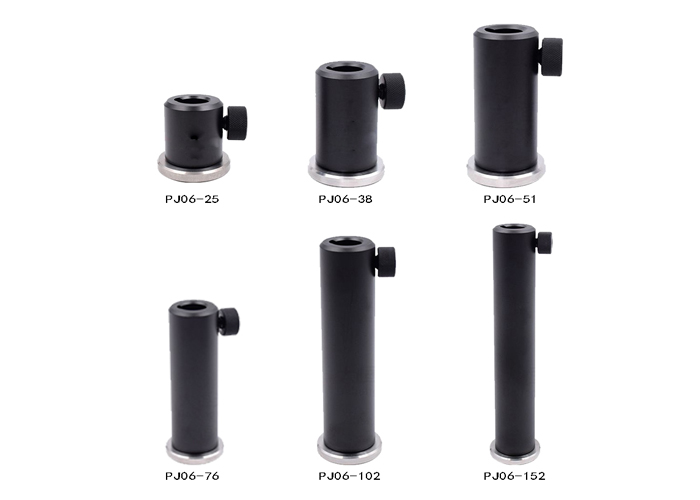

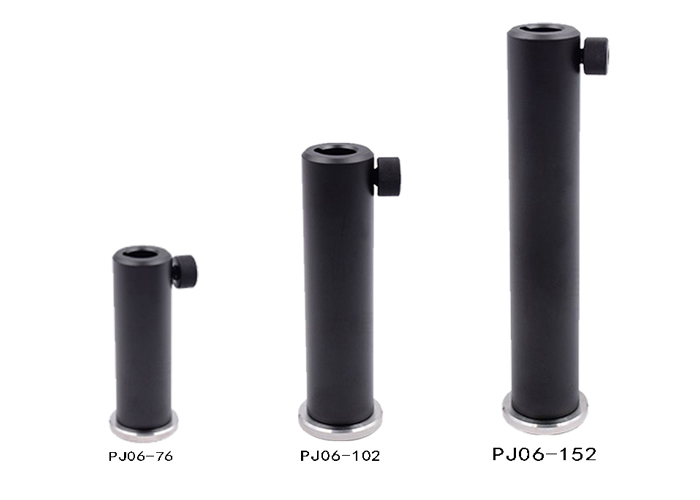

Six different length specifications are available.
Product parameters:
| Model | Height | outside diameter | Main material | inside diameter | specifications | dead-weight | Bottom thread |

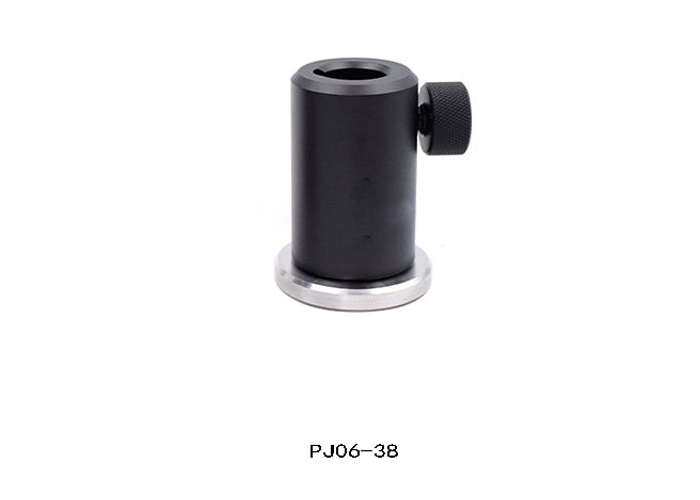

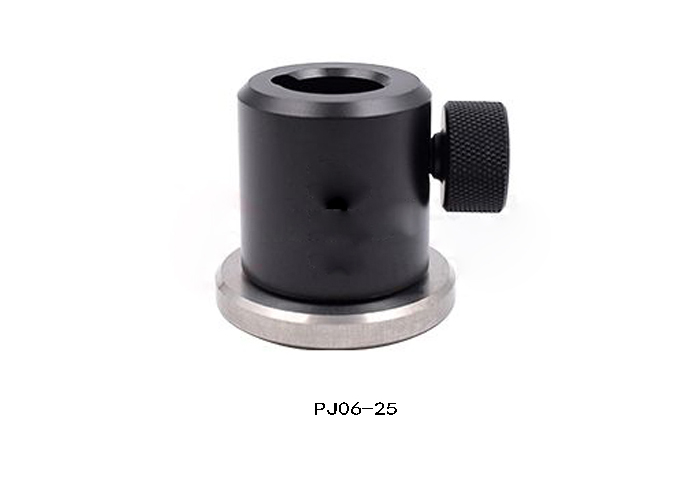

| PJ06-25 | 25mm | Φ25.4mm | aluminum alloy | Φ12.7mm | Bottom end φ 32 * 4.5 bottom bracket with magnetic disc | 53g | Φ 12.7mm through hole |
| PJ06-38 | 38mm | Φ25.4mm | aluminum alloy | Φ12.7mm | Bottom end φ 32 * 4.5 bottom bracket with magnetic disc | 65g | Φ 12.7mm through hole |

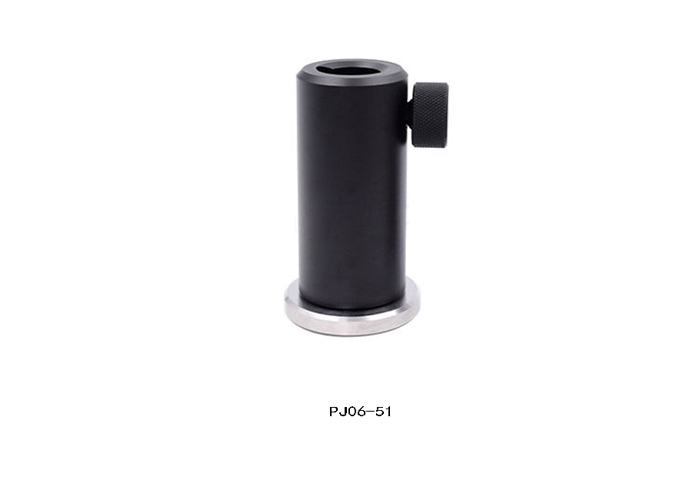

| PJ06-51 | 51mm | Φ25.4mm | aluminum alloy | Φ12.7mm | Bottom end φ 32 * 4.5 bottom bracket with magnetic disc | 77g | Φ 12.7mm through hole |
| PJ06-76 | 76mm | Φ25.4mm | aluminum alloy | Φ12.7mm | Bottom end φ 32 * 4.5 bottom bracket with magnetic disc | 101g | Φ 12.7mm through hole |
| PJ06-102 | 102mm | Φ25.4mm | aluminum alloy | Φ12.7mm | Bottom end φ 32 * 4.5 bottom bracket with magnetic disc | 126g | Φ 12.7mm through hole |
| PJ06-152 | 152mm | Φ25.4mm | aluminum alloy | Φ12.7mm | Bottom end φ 32 * 4.5 bottom bracket with magnetic disc | 175g | Φ 12.7mm through hole |

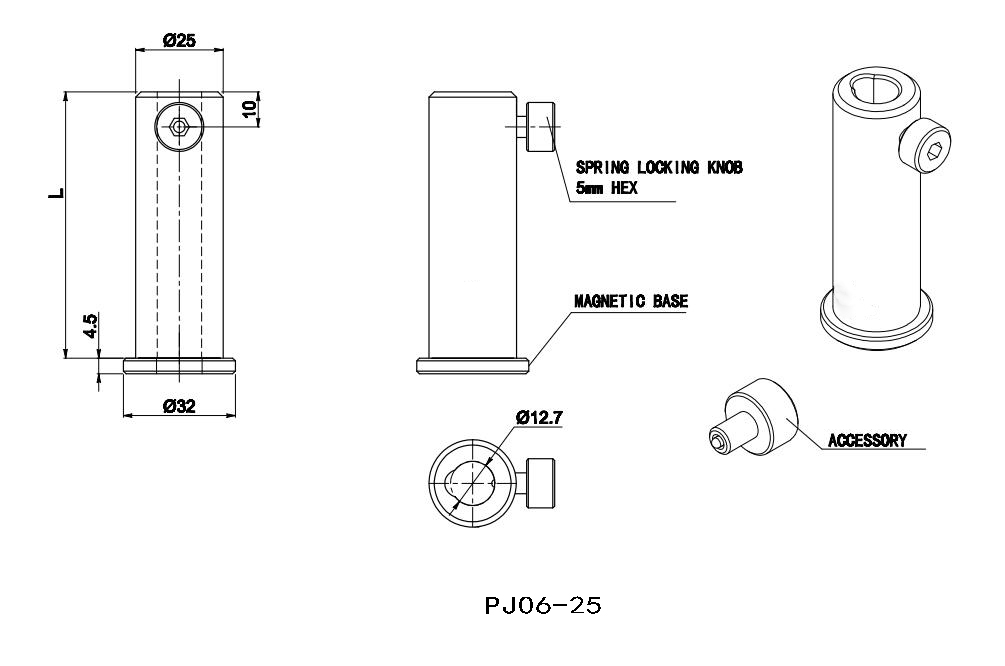

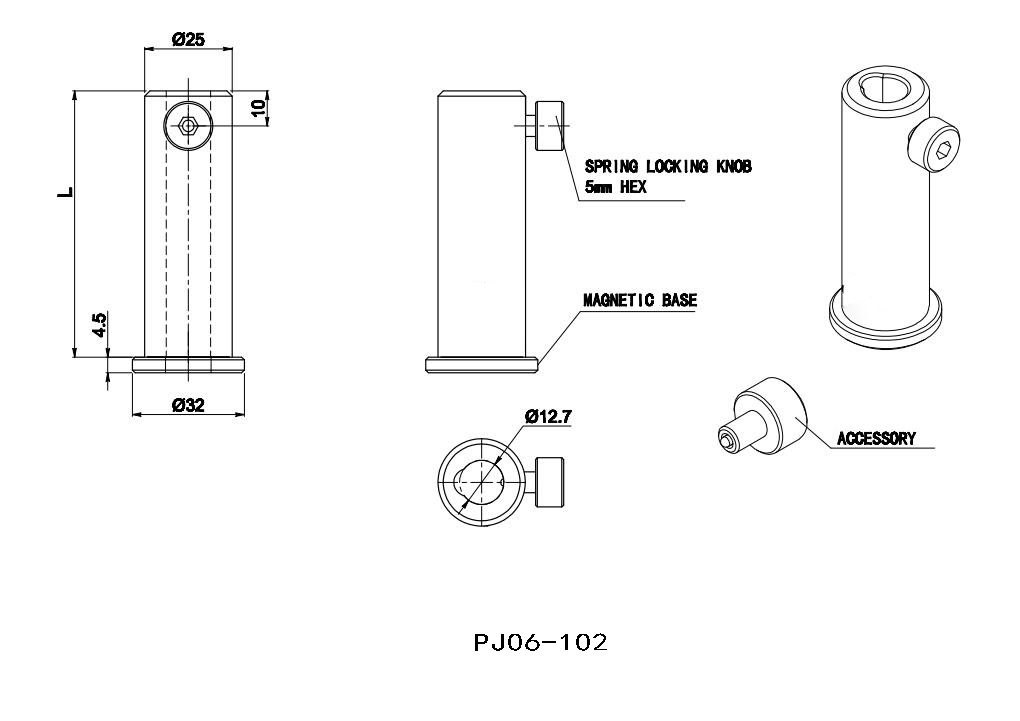

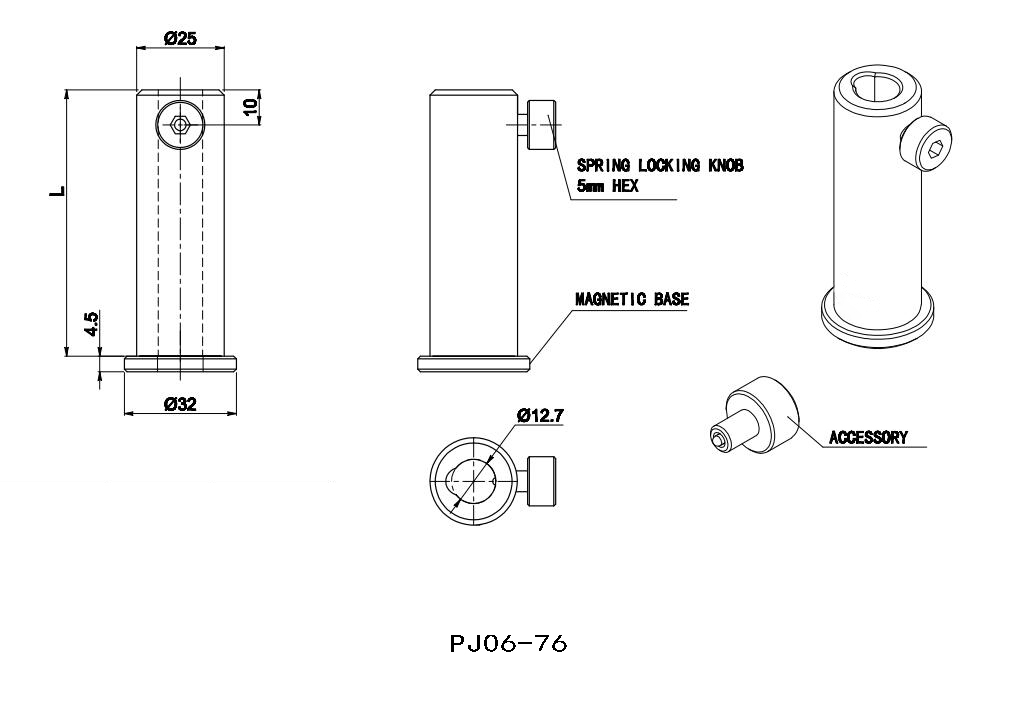

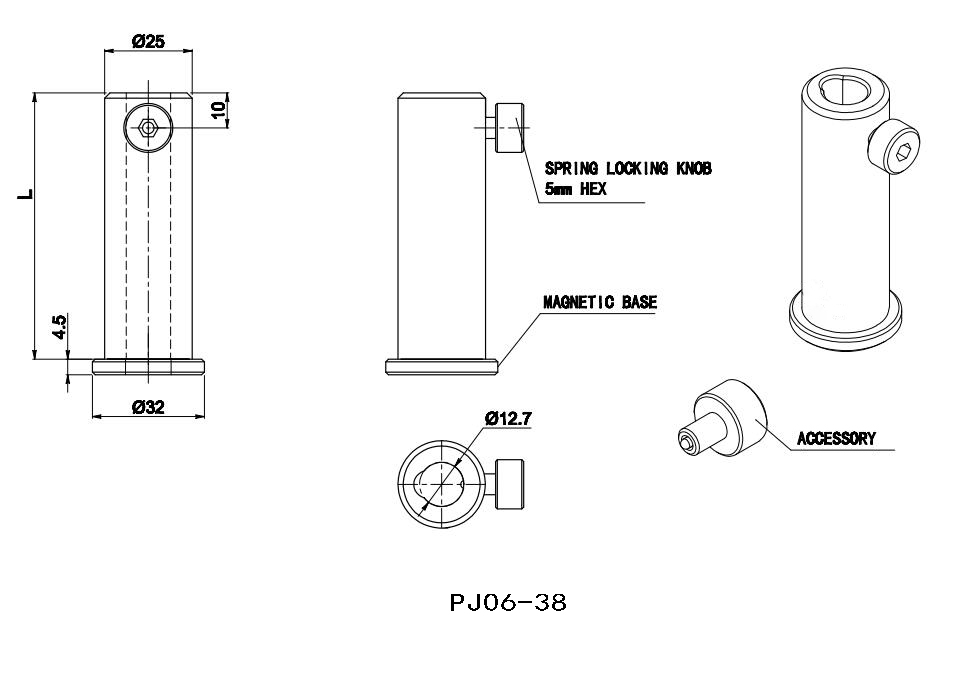

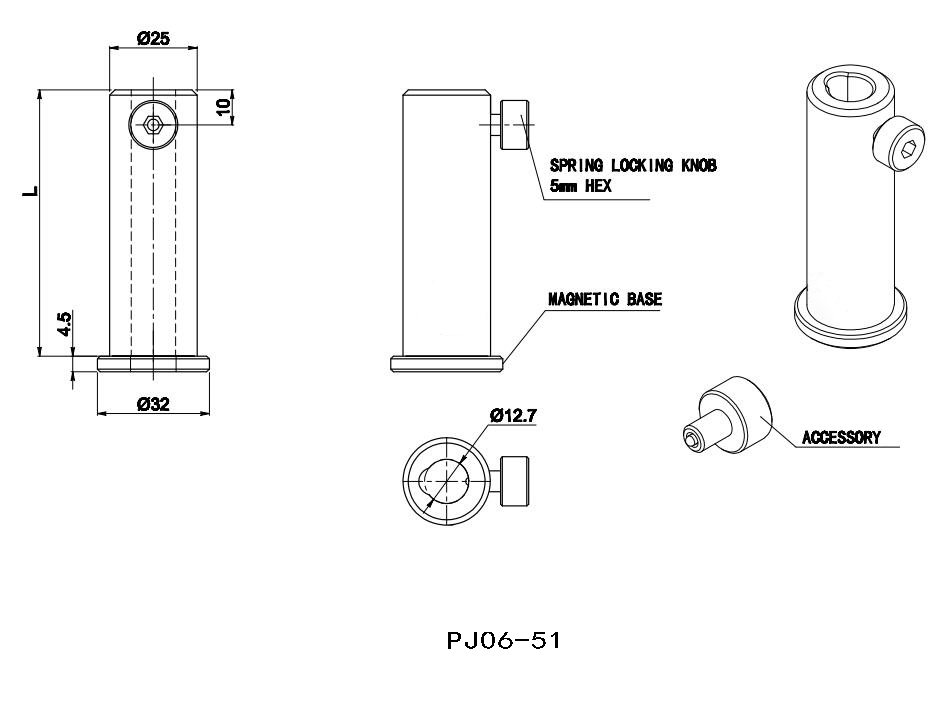

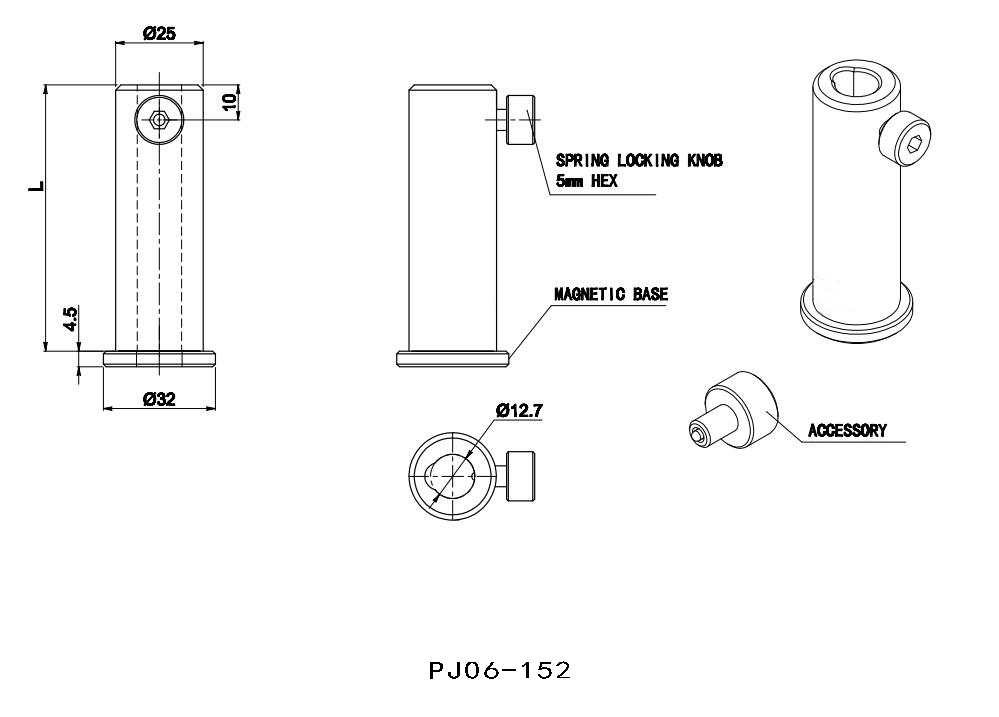

Product Size:
We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
