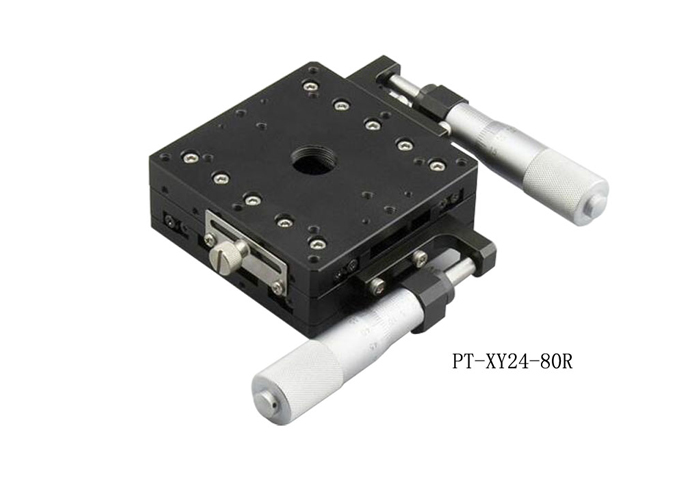

Product Name: XY AxisManual Linear Stage, Manual Displacement Station PT-XY24-80C/R/L

Share
Specification:



Model NumberPT-XY24-80CPT-XY24-80RPT-XY24-80L
Actuator TypeMicrometer Head
Operating PositionCenterRightLeft
Minimum Scale10μm/degree
Platform Size80×80mm
Travel Range±12.5mm
Travel GuideCrossed Roller Bearing
Load Capacity4kgf(29.4N)
Moving PrecisionStraightness3μm
Pitching40”
Yawing20”
Parallelism50μm
Driving Parallelism20μm
Weight1.8kg
Surface MaterialAluminum Alloy BLACK-Anodized

XY AxisManual Linear Stage, Manual Displacement Station PT-XY24-80C/R/L

XY AxisManual Linear Stage, Manual Displacement Station PT-XY24-80C/R/L

XY AxisManual Linear Stage, Manual Displacement Station PT-XY24-80C/R/L


Product details:
Advantage:


PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages High quality China Motorized Linear Stage.   They can be any combination, building block structure, can satisfy any scene usage requirement.


Service:
XY AxisManual Linear Stage, Manual Displacement Station PT-XY24-80C/R/L
  • XY AxisManual Linear Stage, Manual Displacement Station PT-XY24-80C/R/L
  • XY AxisManual Linear Stage, Manual Displacement Station PT-XY24-80C/R/L
  • XY AxisManual Linear Stage, Manual Displacement Station PT-XY24-80C/R/L
  • XY AxisManual Linear Stage, Manual Displacement Station PT-XY24-80C/R/L
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
XY AxisManual Linear Stage, Manual Displacement Station PT-XY24-80C/R/L
XY AxisManual Linear Stage, Manual Displacement Station PT-XY24-80C/R/L
FAQ:
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
