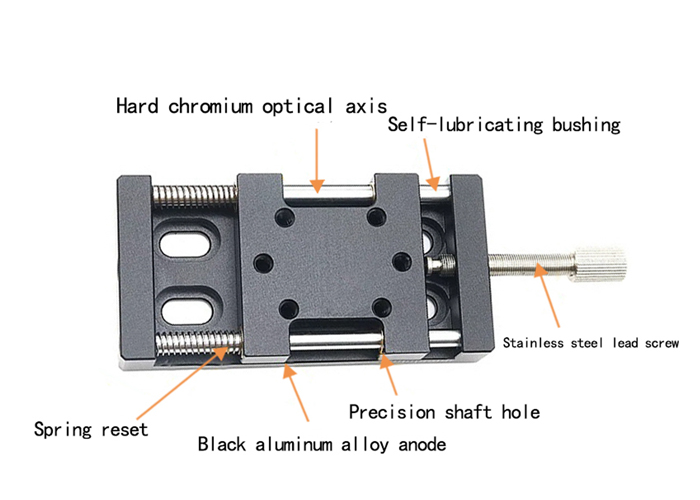

Product features;
Thin structure: Thin structure, with the slider fixed by locking screws
Stainless steel lead screw: It can achieve high-precision and smooth movement
Optical axis movement: Optical axis and bearing movement, which can be used in high-precision requirements
Product parameters
| Subject | Guide shaft | Spring | Press the lead screw tightly | ||
| Material | Surface treatment | Material | Material | Material | Surface treatment |
| Aluminum alloy | Black anodizing treatment | SUS303 | SUS304 | S45C | Nickel plating without electrolysis |
| Model | Z(mm) | Sliding countertop(mm) | Amount of movement(mm) | Load-bearing capacity(N) | Weight | |
| Leve | Vertical | |||||
| PT-SDG20 | 18 | 20×20 | ±5 | 9.8 | 2 | 0.04 |
| PT-SDG25 | 25×25 | 0.06 | ||||
| PT-SDG40 | 27 | 40×40 | ±7.5 | 14.7 | 8 | 0.10 |
| PT-SDG60 | 60×60 | 0.20 | ||||
| Minimum reading: 0.5mm The movement of the knob is 0.5mm when it is rotated By taking advantage of the tension of the spring, the vertical load will be reduced compared with the feed lead screw type. | ||||||

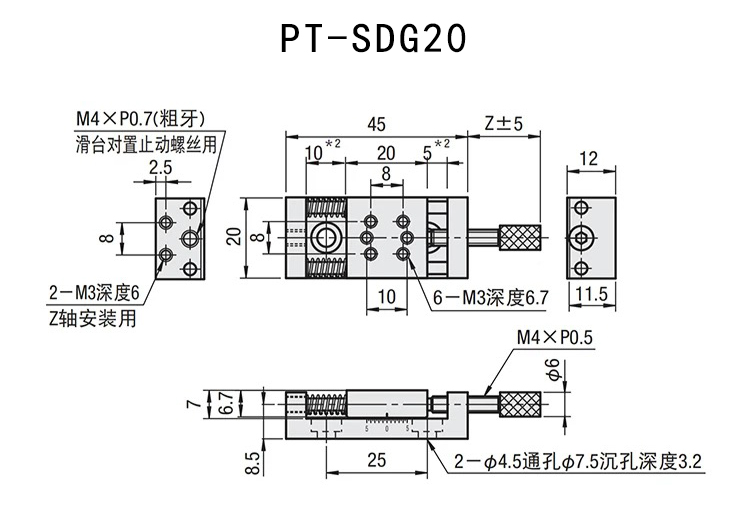

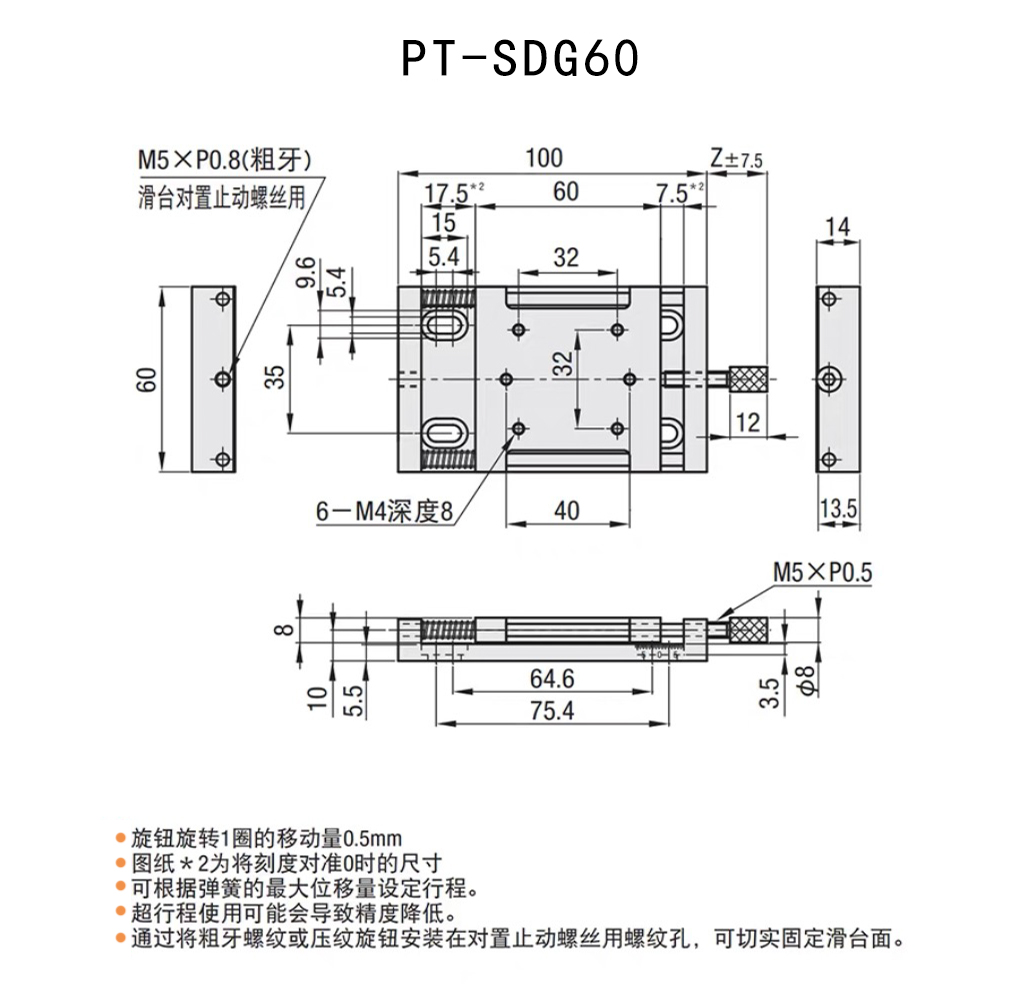

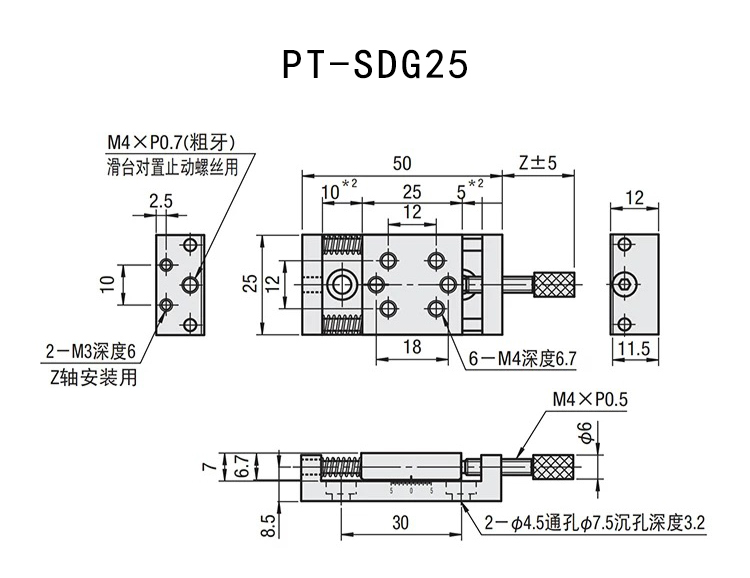

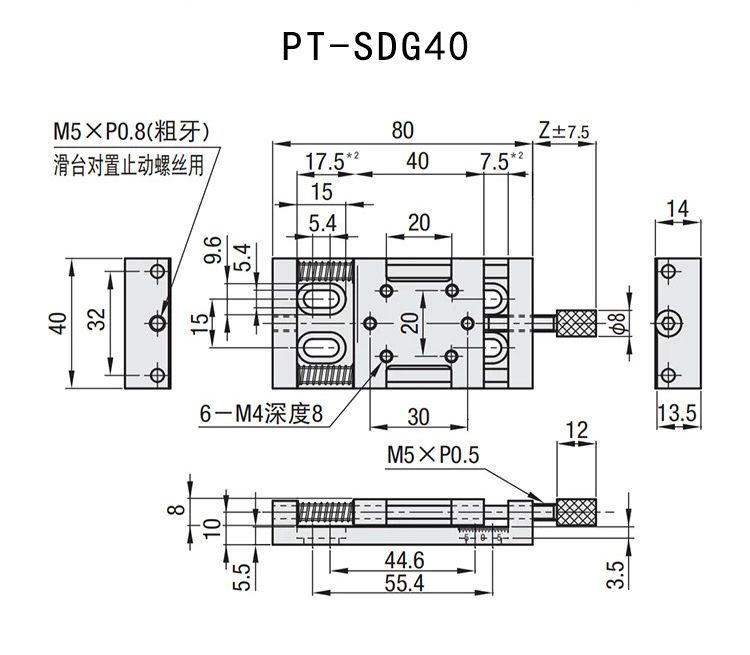

Product size
