Product Name: Precise Manual Goniometer Stage, Low Profile Goniometer Platform PT-SD308

Share
Specification:

Specifications

Model

PT-SD308

Platform Size

65mm×65mm

Angle range

±15°

Height of turning center

50 mm

Deviation of turning center

φ0.05 mm

Driving mode

Worm drive

Guide form

V-guide + ball

Driving position

Central drive

scale

reading

6′

 adjustment

(Reference) 3 / 10 subdivision

Pendulum

80″

tilt

60″

Load bearing

10kg

Dead weight

0.52kg

Material

Aluminium alloy

surface treatment

anodic oxidation

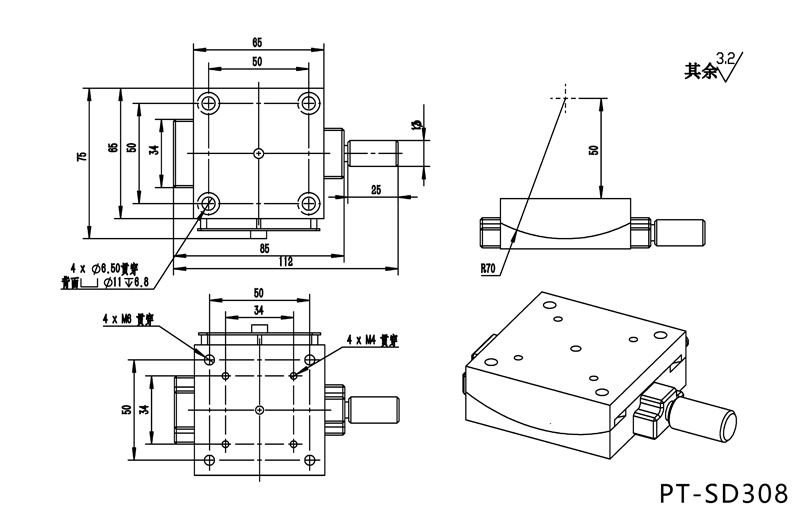

Product Size:

Precise Manual Goniometer Stage, Low Profile Goniometer Platform PT-SD308


Product details:
Advantage:

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages High quality China Motorized Linear Stage.   They can be any combination, building block structure, can satisfy any scene usage requirement.

It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.

If our standard doesn't meet your needs, you can customize it.


Service:
 Precise Manual Goniometer Stage, Low Profile Goniometer Platform PT-SD308
  •  Precise Manual Goniometer Stage, Low Profile Goniometer Platform PT-SD308
  •  Precise Manual Goniometer Stage, Low Profile Goniometer Platform PT-SD308
  •  Precise Manual Goniometer Stage, Low Profile Goniometer Platform PT-SD308
  •  Precise Manual Goniometer Stage, Low Profile Goniometer Platform PT-SD308
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
 Precise Manual Goniometer Stage, Low Profile Goniometer Platform PT-SD308
 Precise Manual Goniometer Stage, Low Profile Goniometer Platform PT-SD308
FAQ:
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
