产品参数：

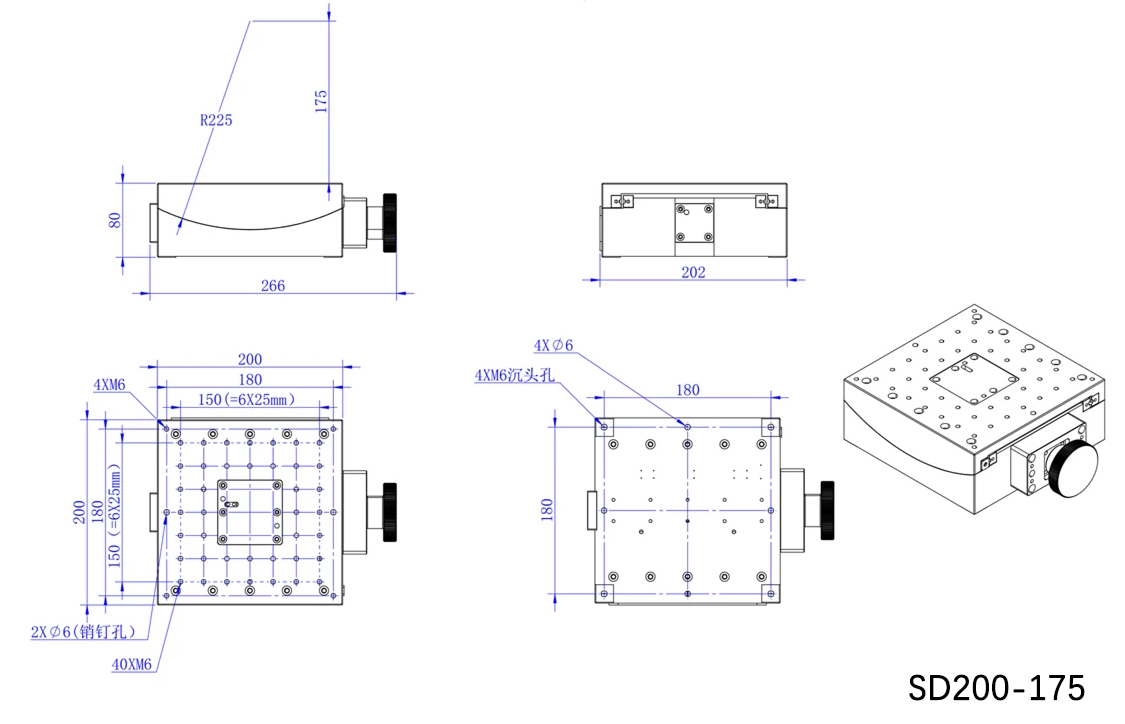

| Model number | SD200-175 |
| Main material | Aluminum alloy |
| Table surface size (mm) | 200×200 |
| Center height (distance between the center of the arc swing and the table surface) | 175 |
| Travel distance (mm) | ±5° |
| Transmission method | Screw rod |
| Reduction ratio / Angle A | A=arcsin(1/201) |
| Resolution (μm) | 0.005 |
| Repeatability positioning accuracy (mm) | 0.005 |
| Motion verticality (mm) | 0.03 |
| Motion parallelism (mm) | 0.03 |
| Horizontal load (Kg) | 40kg |
| Guide rail method | Cross guide rail |
| Self-weight (Kg) | 9.8kg |

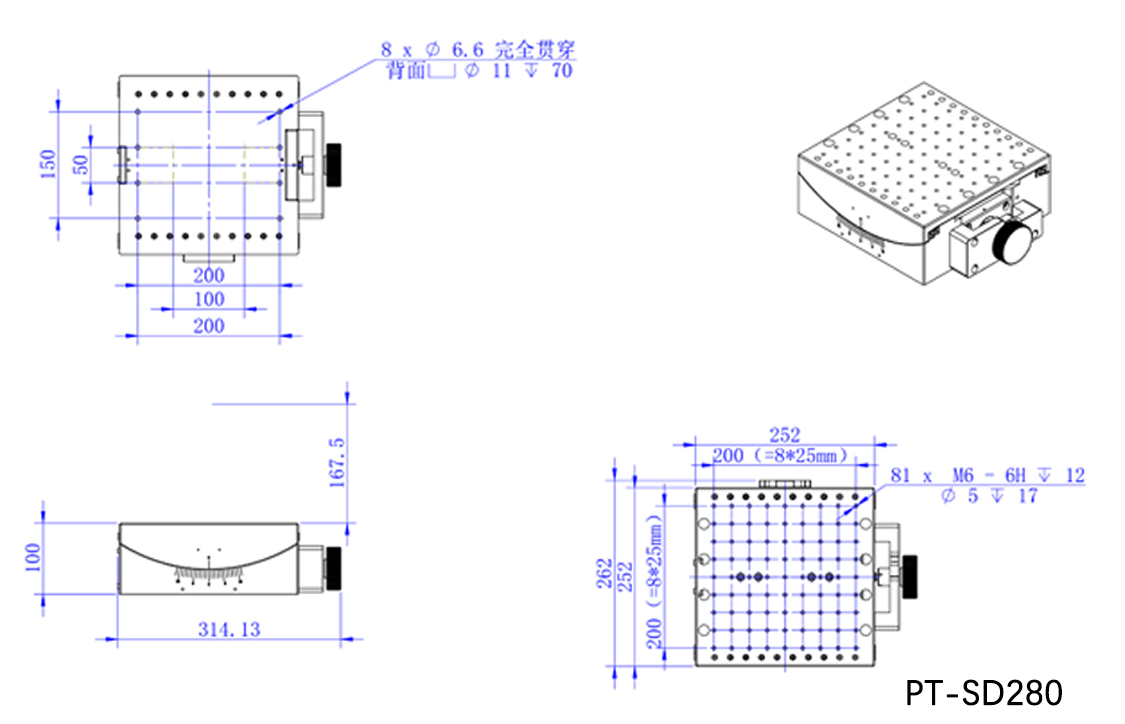

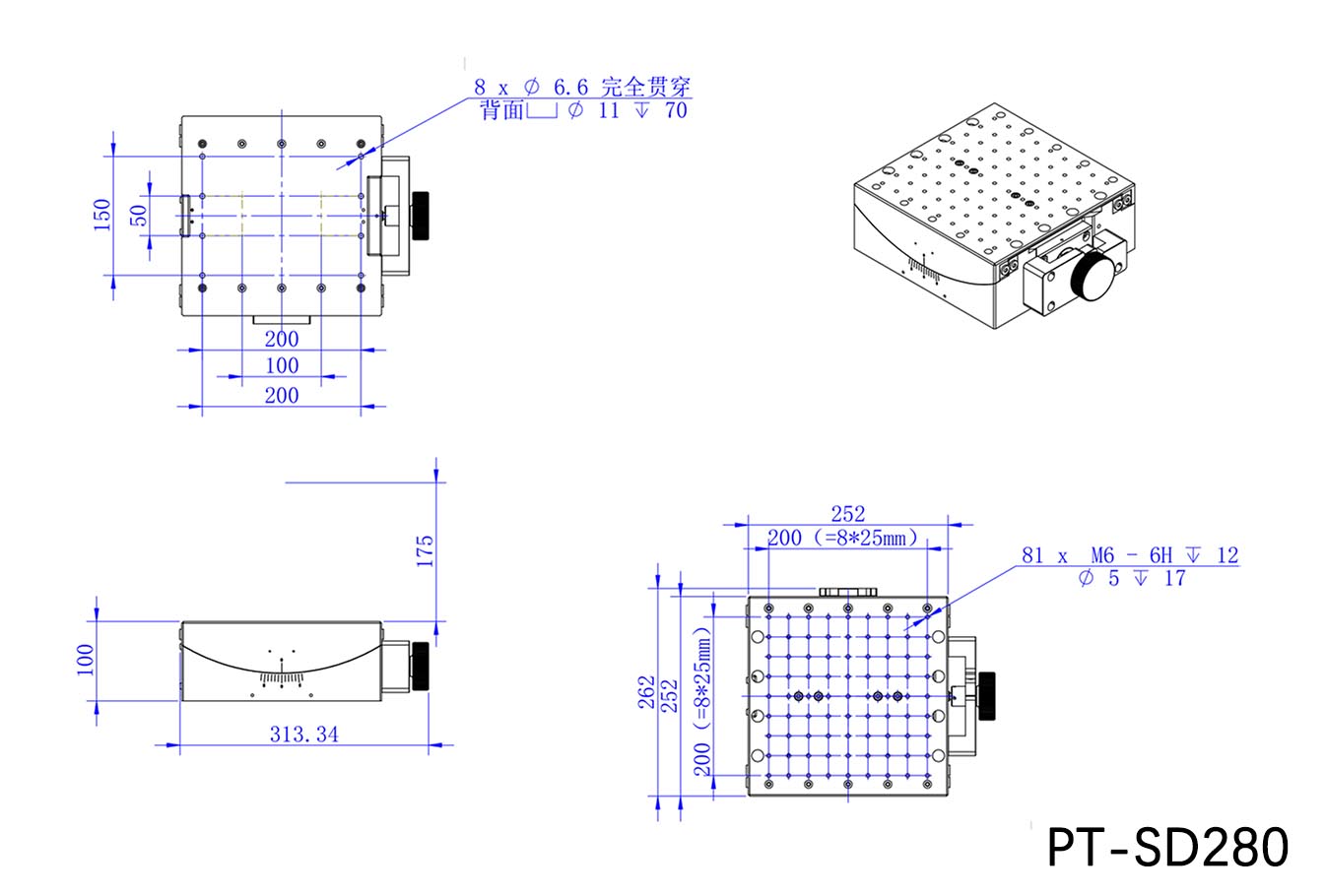

| Model number | PT-SD280 |
| Table surface size | 280×280mm |
| Swing range | ±10° |
| Transmission ratio | 1:445、1:345 |
| Aluminum alloy | Aluminum alloy |
| Guide rail form | Cross-shaped sliding guide rail |
| One-way positioning accuracy | 0.01° |
| Repetitive positioning accuracy | 0.005° |
| Swing center accuracy | 0.1mm |
| Center load-bearing | 150kg |

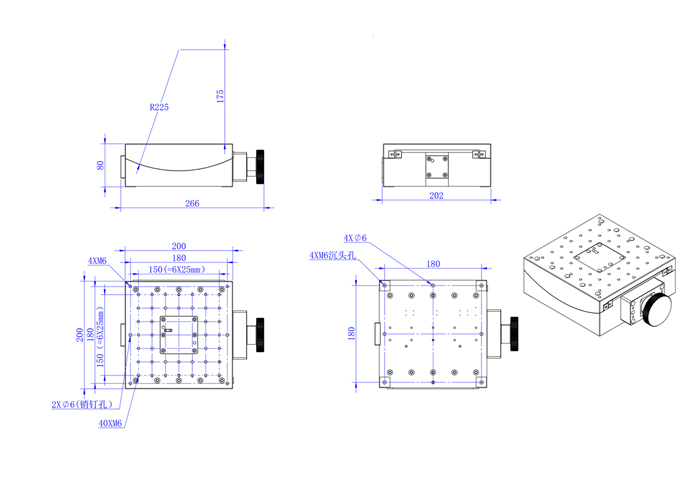

产品尺寸：
