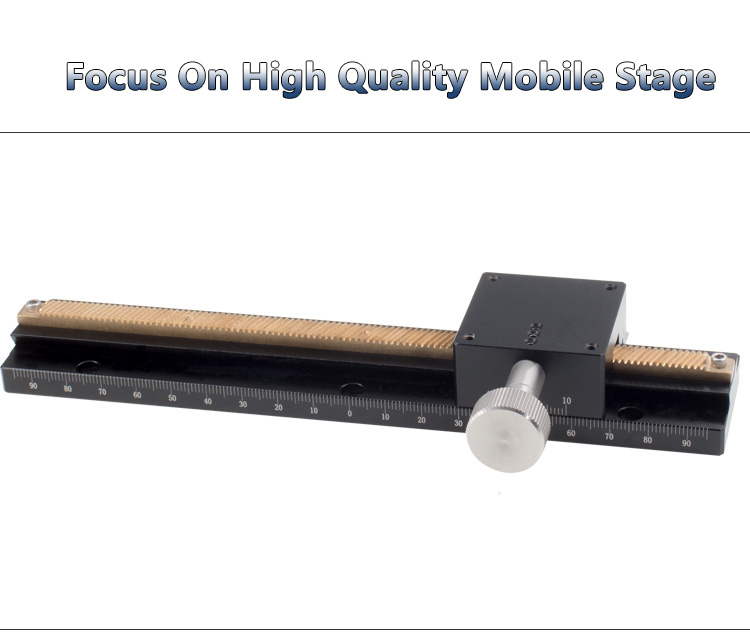

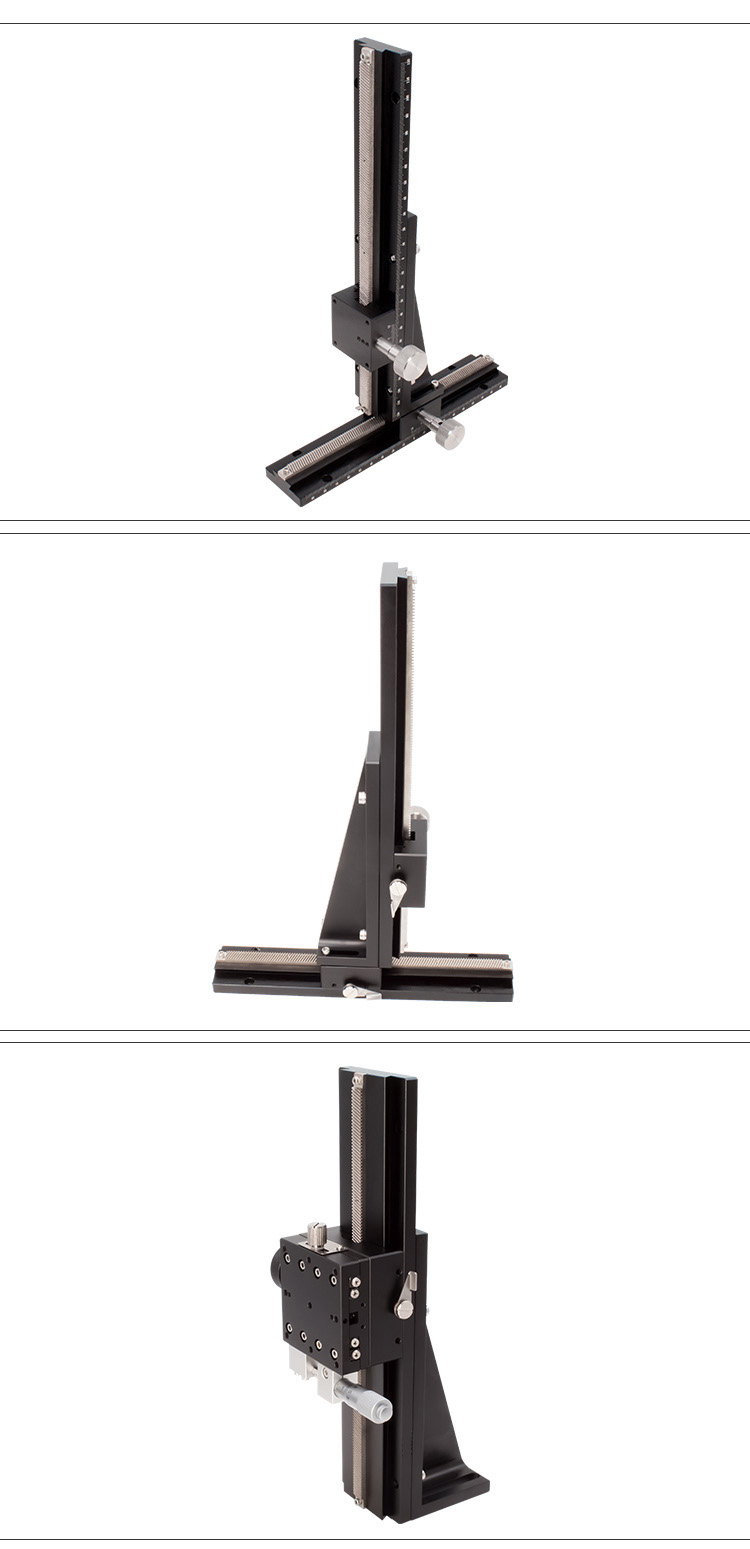

Model Number | Table Size | L | G | n*f | N | Load capacity | Parallelism | Travel | Weight |
PT-DN25-50 | 25*42 | 50 | 12.5 | 1*25 | 4 | 29.4N(3kgf) | 0.05 | 30 | 0.12kg |
PT-DN25-70 | 70 | 10 | 2*25 | 6 | 0.05 | 50 | 0.13kg | ||
PT-DN25-100 | 100 | 12.5 | 3*25 | 8 | 0.05 | 80 | 0.16kg | ||
PT-DN25-150 | 150 | 4*25 | 10 | 0.10 | 130 | 0.21kg | |||
PT-DN25-200 | 200 | 5*25 | 12 | 0.10 | 180 | 0.25kg |
Model Number | Table Size | L | G | n*f | N | Load capacity | Parallelism | Travel | Weight |
PT-DN40-100 | 40*40 | 100 | 12.5 | 1*75 | 4 | 29.4N(3kgf) | 0.05 | 60 | 0.25kg |
PT-DN40-150 | 150 | 25 | 1*100 | 0.05 | 110 | 0.33kg | |||
PT-DN40-200 | 200 | 2*75 | 6 | 0.05 | 160 | 0.39kg | |||
PT-DN40-250 | 250 | 2*100 | 0.10 | 210 | 0.46kg | ||||
PT-DN40-300 | 300 | 50 | 2*100 | 0.10 | 260 | 0.53kg | |||
PT-DN40-350 | 350 | 3*100 | 8 | 0.10 | 310 | 0.61kg | |||
PT-DN40-400 | 400 | 3*100 | 0.10 | 350 | 0.78kg |
Model Number | Table Size | L | Travel | Weight |
PT-DZ25-50 | 25*42 | 50 | 30 | 0.13kg |
PT-DZ25-70 | 70 | 50 | 0.14kg | |
PT-DZ25-100 | 100 | 80 | 0.17kg | |
PT-DZ25-150 | 150 | 130 | 0.22kg |
Model Number | Table Size | L | L1 | Travel | Weight |
PT-DZ40-100 | 40*40 | 100 | 100 | 60 | 0.46kg |
PT-DZ40-150 | 150 | 150 | 100 | 0.54kg | |
PT-DZ40-200 | 200 | 160 | 0.60kg | ||
PT-DZ40-250 | 250 | 210 | 0.67kg | ||
PT-DZ40-300 | 300 | 200 | 260 | 0.74kg |
Manual Linear Stage Installation method
1. Screw the micrometer screw rod (or other pushing device) in one direction to move it to the edge so that the mounting hole at the bottom is exposed.
2. Fix it with screws. Please make sure that the locking plate has been loosened before operation.
3. Screw the micrometer screw (or other pushing device) in the opposite direction,
Move the mobile station to the edge so that the mounting hole at the other end of the bottom is exposed.
4. Fix with screws.
Note: the bearing volume on the platform is too large, which will reduce the accuracy of the platform and even damage it. Please try to avoid it, which is not greater than 1.5 times of the table.
We are glad that you can cooperate with us. In order to save your time, when selecting products, please check the parameters or communicate with our sales team to avoid delaying your construction period due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
