Model Number | PT-SD105 |
Drive mode | Micrometer head |
Travel(mm) | 50 |
Min Scale(mm) | 0.01 |
Sensitivity(mm) | 0.002 |
Accuracy(mm) | 0.003 |
Platform Size(mm) | 110×120 |
load Bearing(kg) | 5 |
Net Wegiht(kg) | 1.25 |

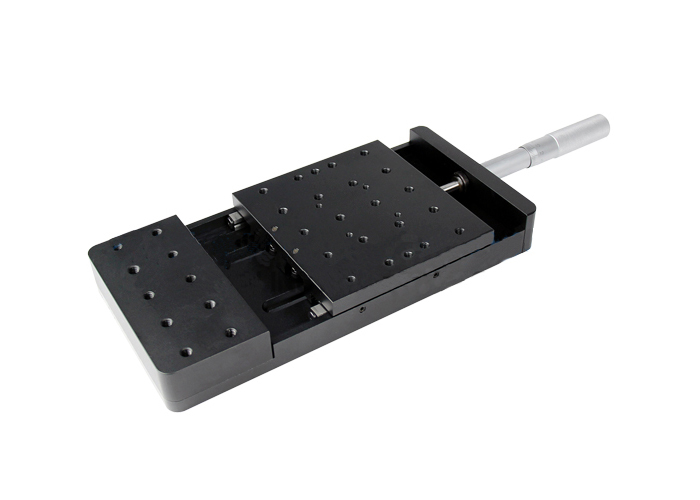

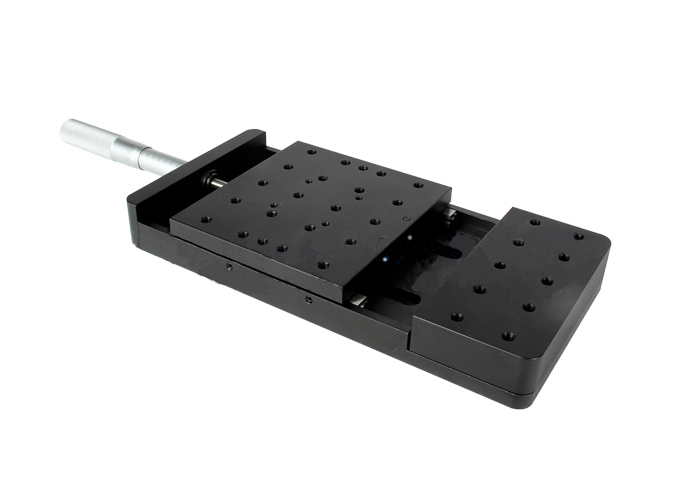

Precision Manual linear Stage PT-SD105
Product features
1. The guide rail is cross roller with V-shaped steel guide rail, with high precision, large bearing capacity and long service life;
2. The table top is made of steel, with good rigidity and corrosion resistance, suitable for industrial production;
3. Micrometer head is used for displacement adjustment;
4. The micrometer head is placed in the center of the translation table, which is convenient to operate;
5. Spring return structure is adopted to eliminate axial clearance;
6. The installation holes with standard hole spacing are distributed on the table and base to facilitate installation and combination;
7. It can form a multi-dimensional adjustment frame with other series of displacement tables.
Product dimension drawing
