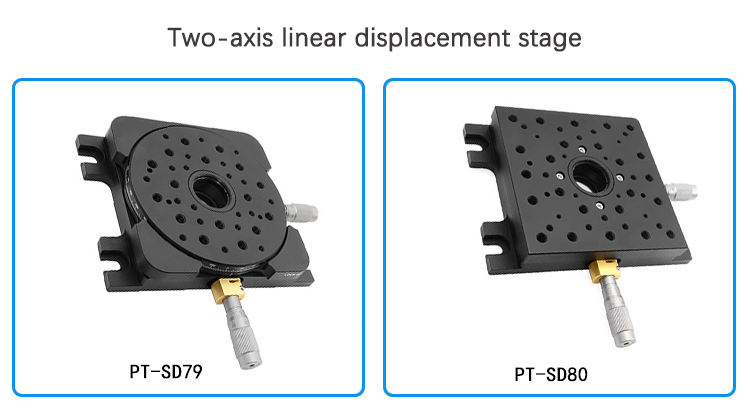

Product Name: Manual Fine Adjustment Dual Axis Linear Moving Stage PT-SD79/80

PT-SD79 two axis displacement stage

Product characteristics

1. Dual axis rotating displacement table with rotating platform and detachable perforated top plate;

2. 360 ° continuous rotation;

3. Has a linear stroke of 13mm along the X and Y axes;

4. Equipped with SM1 (1.035 "-40) threaded center hole and 2 snap rings;

5. The height from the bottom to the installation plane is 25.4mm, and the height from the perforated top plate is 32.2mm;

6. Equipped with positioning pins for aligning standard glass slides on the through-hole of the platform.

PT-SD80 two axis displacement stage

Product characteristics

1. Dual axis linear displacement table with square threaded platform;

2. Has a linear travel of 13mm along the X and Y axes;

3. Equipped with SM1 (1.035 "-40) threaded center hole and 2 snap rings;

4. The height from the bottom to the installation plane is 25.4mm;

5. Equipped with positioning pins for through holes on the platform Align the standard slide upwards.

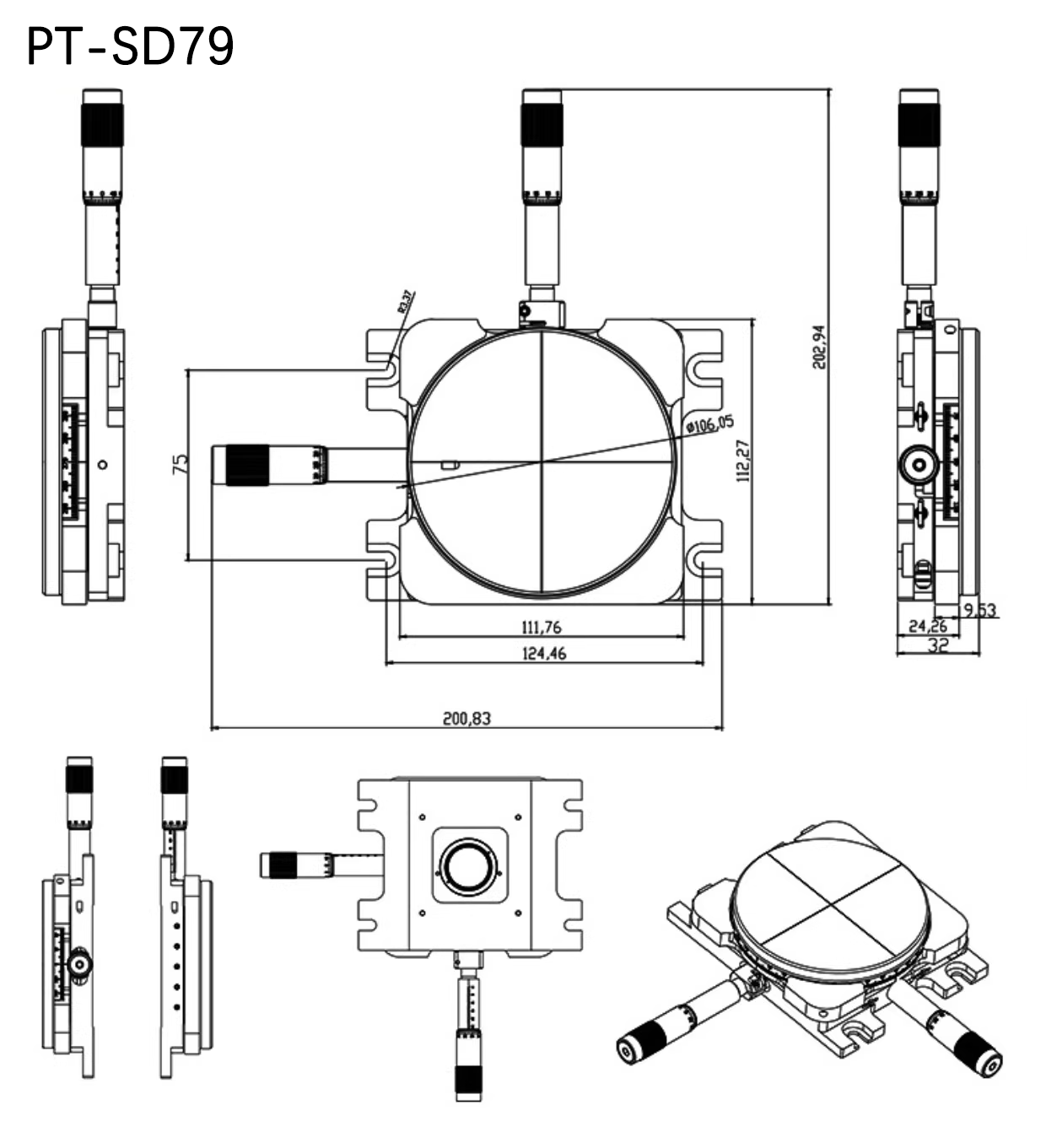

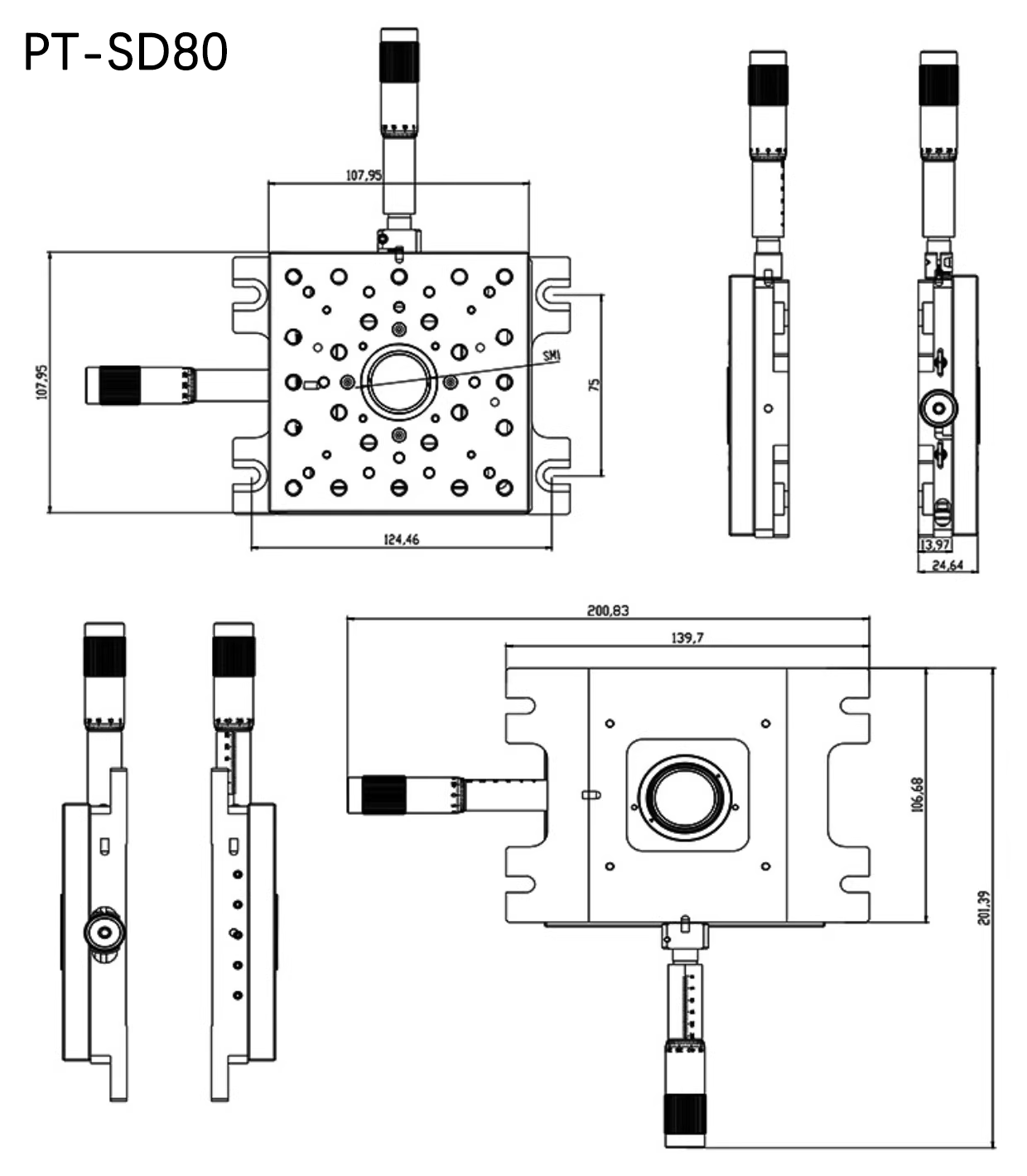

Product Dimensional Drawing:

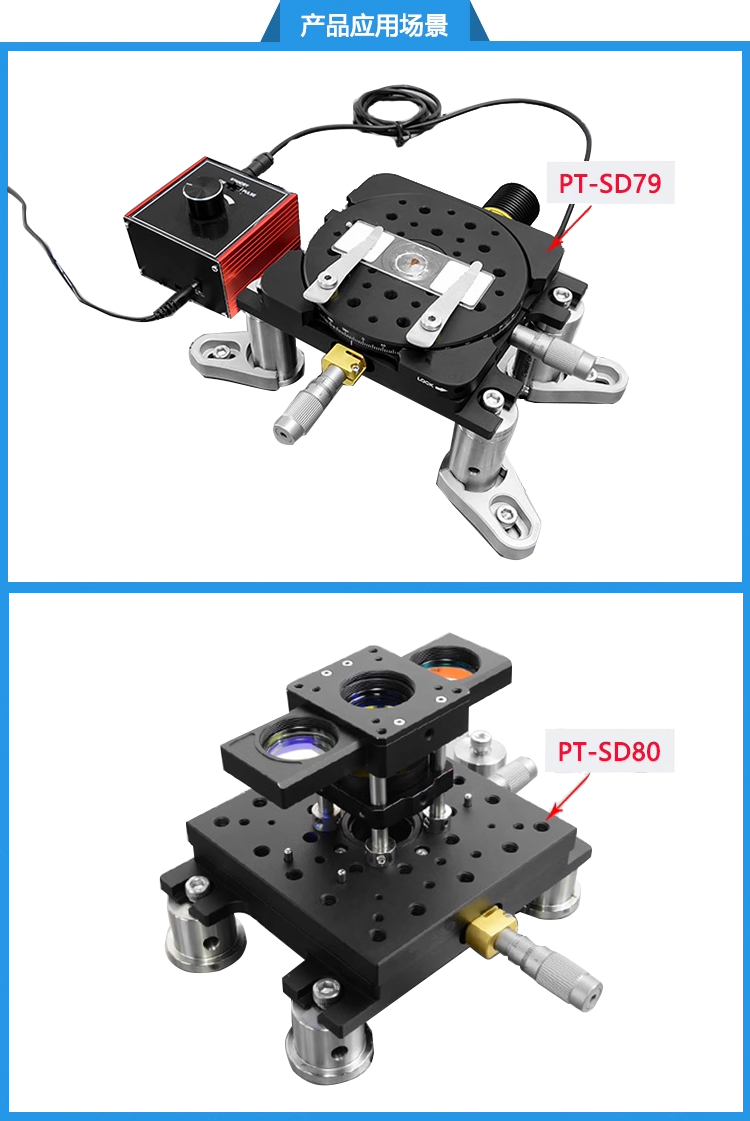

Two axis linear displacement stage provides a 13mm stroke along the X-axis and Y-axis micrometer heads, with a division of 10 μ m。 And there is an SM1 threaded hole (1.035 "-40) in the center, which is very suitable for imaging applications that require illumination from the bottom of the sample. Coupled with a microscope slide clamp, it is designed to hold various sizes of microscope slides and test targets. (With the accompanying three positioning pins, it is easy to operate or position the slide.)

The movement of the displacement table on the X and Y axes will not affect the central threaded hole. The displacement table is fixed in position by springs on the driver, so there is no need to lock screws.

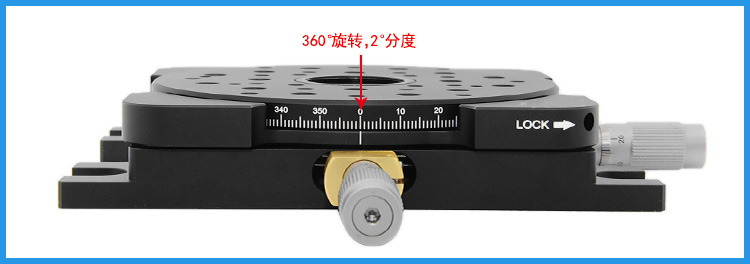

The rotating table size of the PT-SD79 displacement table is 106.1mm, and the 360 ° continuous angle scale on the outer edge is convenient for users to set the angle direction of the displacement table, with a graduation of 2 °. A 2mm hexagonal locking screw can be used to lock the rotation position at the mark "LOCK". Locking the rotation axis does not hinder translation along the X and Y axes.

There is also a series of M6 and M4 threaded hole arrays on the displacement table for installing samples and components. At the same time, a conversion board is provided to convert the surface of the threaded hole into a flat surface, making it convenient for users to convert the surface of the screw hole of the displacement table into a flat surface.

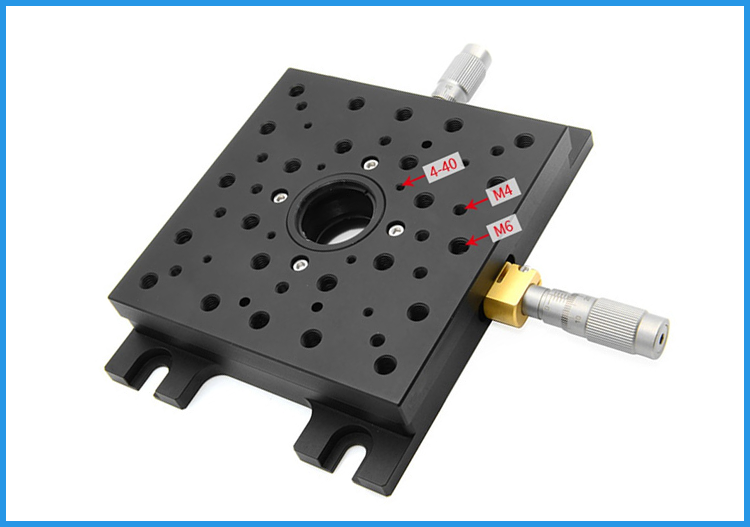

The square table size of the PT-SD80 displacement stage is 108.0 * 108.0mm. In addition to the SM1 threaded through-hole, there is also a series of M6, M4, and 4-40 threaded hole arrays on the displacement table for installing samples and components. Eight 4-40 threaded holes around the center screw hole are used for our 30mm or 60mm cage system integration.
