China PT-SD50401M Rack And Pinion Mobile Station - Manual Linear Stage, XY Axis Manual Rotating Stage, Manual Linear Stage For Sale

Specification:

PT-SD50401M It has the characteristics of long travel, fast speed, smooth movement, convenient use and so on. It is an ideal dispensing device in laboratory. And it is equipped with scale, vernier reading, minimum reading of 0.1 mm.

Product details:

PT-SD50401M齿轮齿条移动台
Model	Moving direction	Trip	Wright（g）	Reading Accuracy	Central Load
PT-SD50401M	X	X:90	355	0.1mm	3Kg

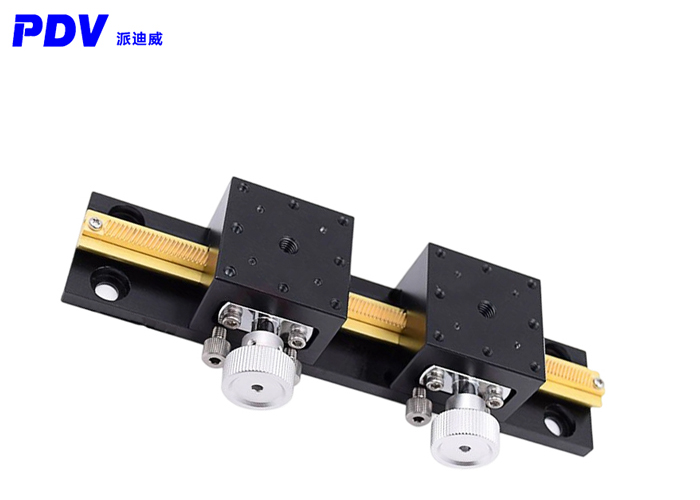

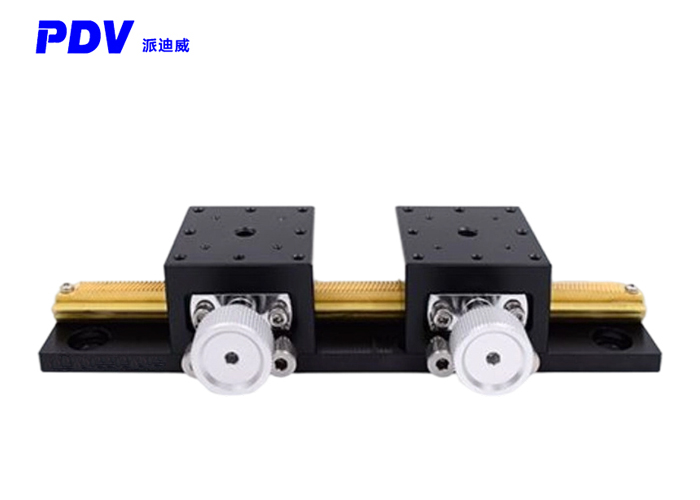

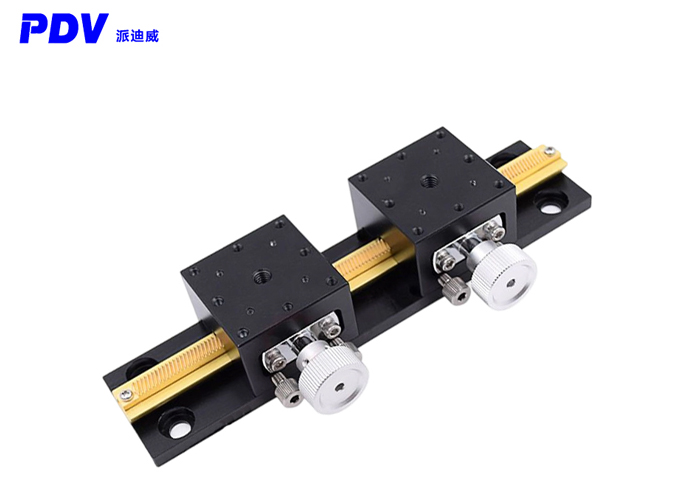

PT-SD50401M Rack And Pinion Mobile Station

Service:

PT-SD50401M Rack And Pinion Mobile Station

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

Relate products

Product Name: PT-SD50401M Rack And Pinion Mobile Station
