Product features:

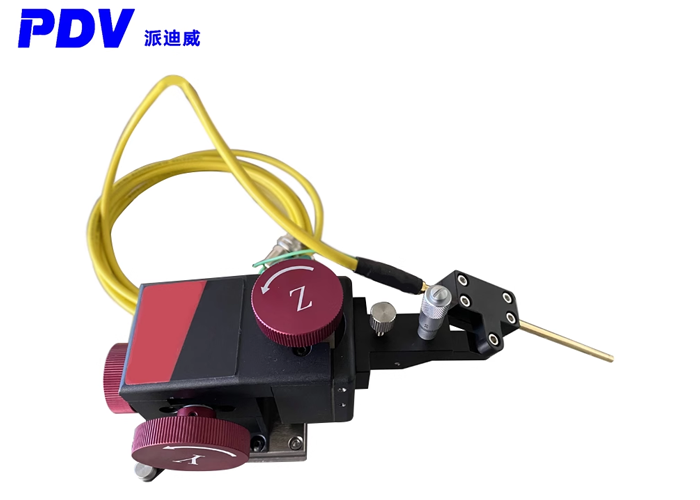

The SZ-313 series pin seat adopts a precision lead screw drive of 0.25πm/ revolution, and the three axes use spherical roller guides. It is assembled and debugged according to a specific process.
The needle seat features no backlash, no vibration pendulum, and high micro-distance controllability accuracy, ensuring that customers can obtain a stable control experience during use.
A series of fully non-magnetic needle holders are launched simultaneously. Customers can customize them according to their usage requirements.
Product parameters:
| Model | SZ-313-L | SZ-313-R | |
| Adjustable shaft | X-axis + Y-axis + Z-axis | ||
| Adjust the stroke | X13mm/Y13mm/z13mm | ||
| Adjustment method | Precision screw | ||
| Guide rail structure | Spherical roller guide rail | ||
| Screw accuracy | 0.25mm per revolution | ||
| Use accuracy | 0.7um | ||
| Working surface dimensions | 40mm * 40mm | ||
| Installation position | Horizontal | 25mm | |
| Longitudinal | 8mm-10mm-8mm | ||
| Overall dimensions | Length: 100mm * Width: 65mm* height: 86mm | ||
| Fixed method | Powerful magnetic table base/vacuum base | ||
| Net weight | 1.02kg | ||
Product size：
