Product Name: PT65series dovetail groove direct drive manual translation table, one-dimensional manual fine-tuning sliding table, large stroke precision displacement table

Share
Specification:

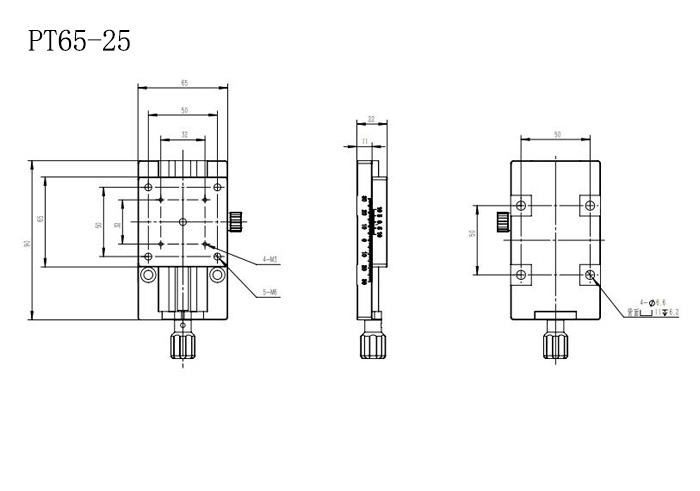

ModelPT65-25PT65-50PT65-75PT65-100
Trip(mm)255075100
Platform size(mm)65×65
Body length(mm)90115140165
Thickness(mm)20
Guide railDovetail auxiliary guide rail
Driving modeGrinding lead screw,Ø8×1
Drive positionCenter drive
Main material and surface treatmentAluminum alloy, black anodized
Weight(kg)0.30.350.40.5
Minimum reading(mm)0.1
Horizontal load(kg)10
Vertical load(kg)5
Product details:

Dovetail groove direct drive manual translation table pt65 series is a screw nut type manual translation table launched by PDV. The main material of this series of products is aluminum alloy, the surface is oxidized and blackened, and the dovetail auxiliary guide rail is used for guidance, with strong load capacity. It is driven by grinding lead screw. The grinding lead screw has small pitch, high sensitivity, scale on the side and locking function. It has complete functions and easy to use.
