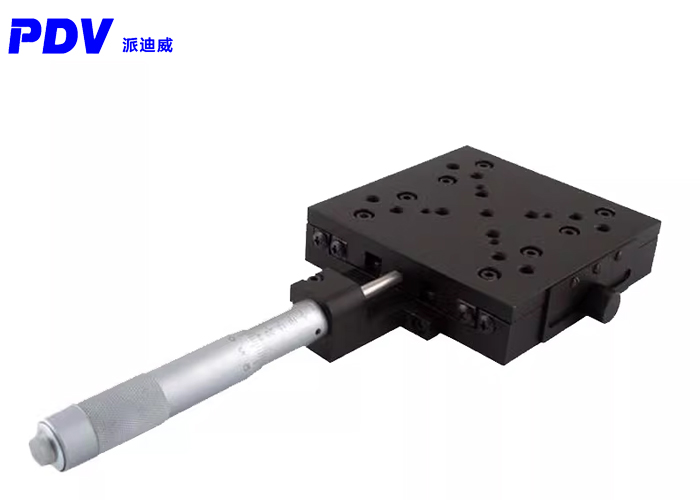

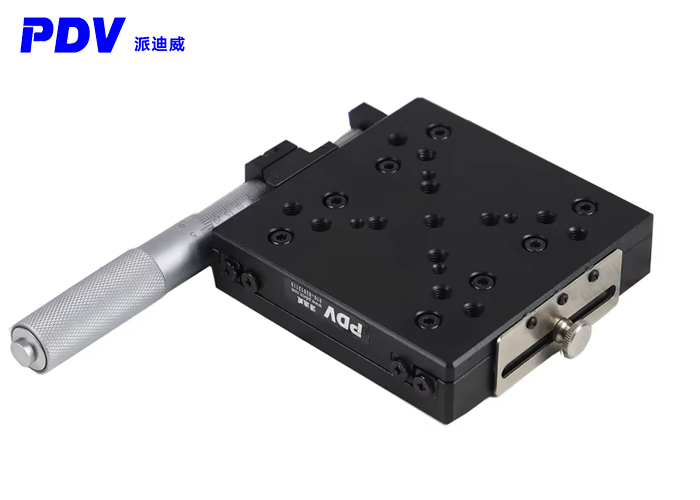

High-precision manual translation stage: PT50-100H/CH
■Features:
■Precisely machined from hard aluminum, with anodized black finish on the surface
■Equipped with high-precision cross roller guide rails, offering higher precision, greater load-bearing capacity, and longer lifespan
■High-precision base and platform ensure the straightness, deflection, pitch, and motion parallelism of the translation stage
■Displacement adjustment is driven by a micrometer head or differential micrometer head
■The high-precision small-resolution micrometer head allows for micro-displacement adjustment at the nanometer level
■The micrometer head is placed on the side of the translation stage, making the structure more compact
■Uses spring reset to eliminate axial clearance
■The platform and base have standard hole spacing for installation, facilitating installation and combination
■Can be combined with other series of translation stages to form a multi-dimensional adjustment frame
Optional option to add a grating scale for displaying the tiny displacement of movement

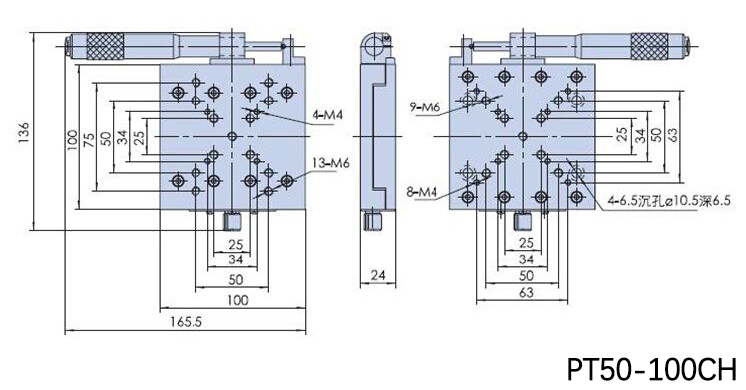

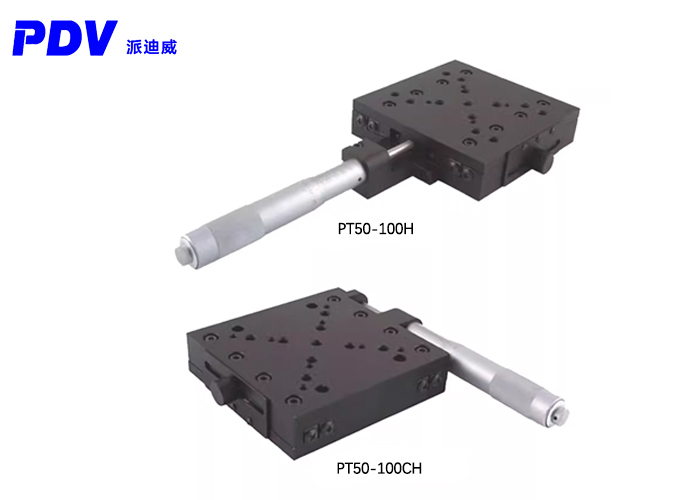

| Model number | PT50-100H | PT50-100CH |
| Table surface size | 100mm×100mm | 100mm×100mm |
| Driving method | Micrometer head | Micrometer head |
| Driving position | Central drive | Lateral drive |
| Itinerary | 50mm | 50mm |
| Scale | 0.01mm | 0.01mm |
| Adjustment amount | 0.002mm | 0.002mm |
| Guide rail form | Cross roller guide rail | Cross roller guide rail |
| Support | 40kg | 40kg |
| Straightness | 5μ | 5μ |
| Bend | 25″ | 25″ |
| Pitch | 15″ | 15″ |
| Table surface parallelism | 10μ | 10μ |
| Motion parallelism | 15μ | 15μ |
| Self-respect | 1.1kg | 1.1kg |
| Materials | Hard aluminum | Hard aluminum |
| Surface treatment | Anodizing and blackening | Anodizing and blackening |
