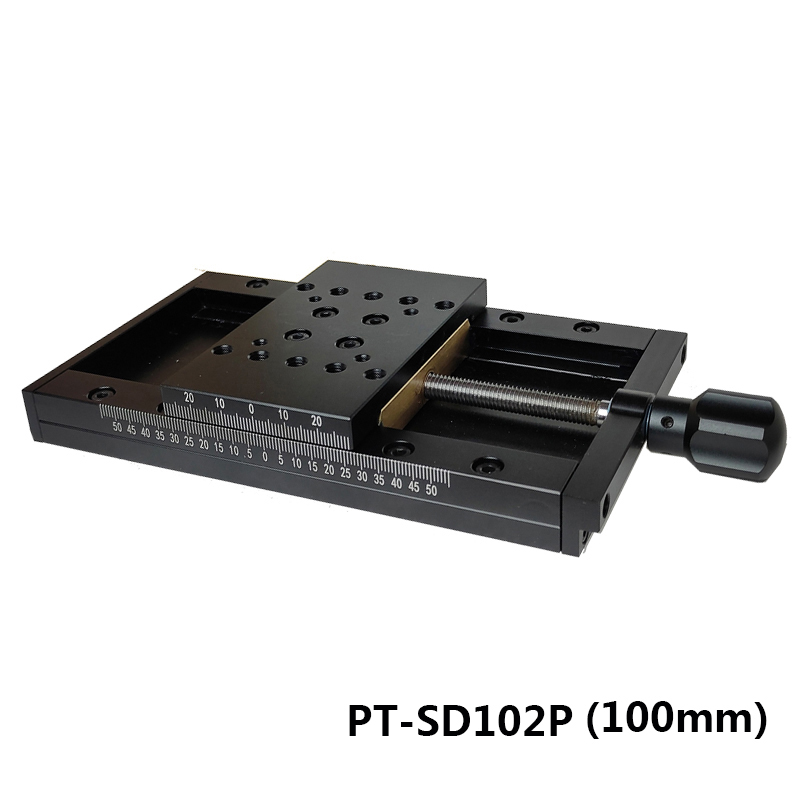

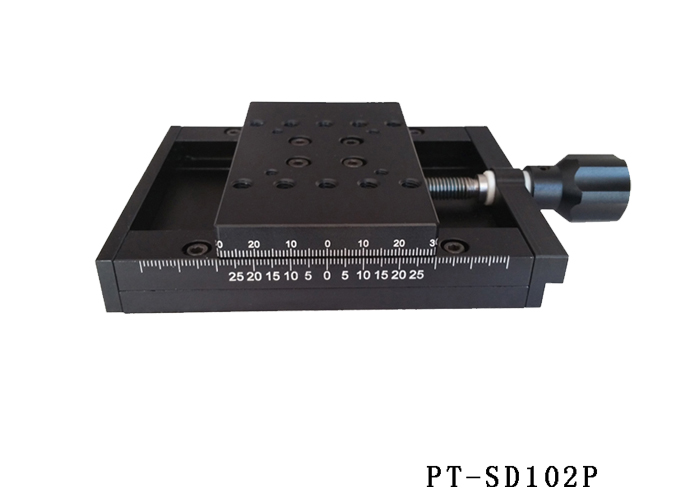

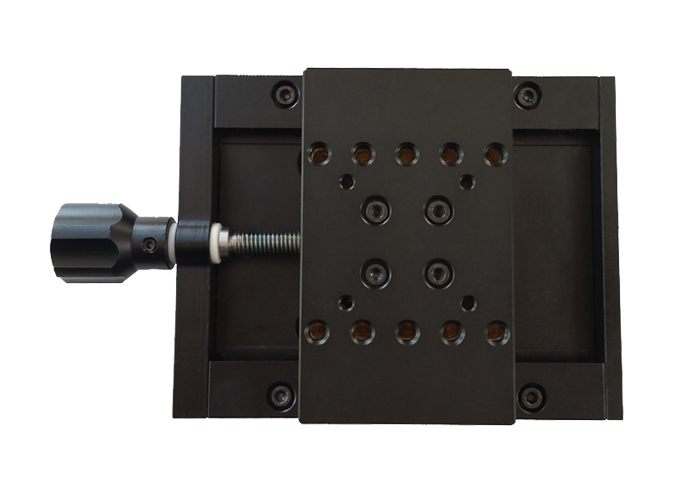

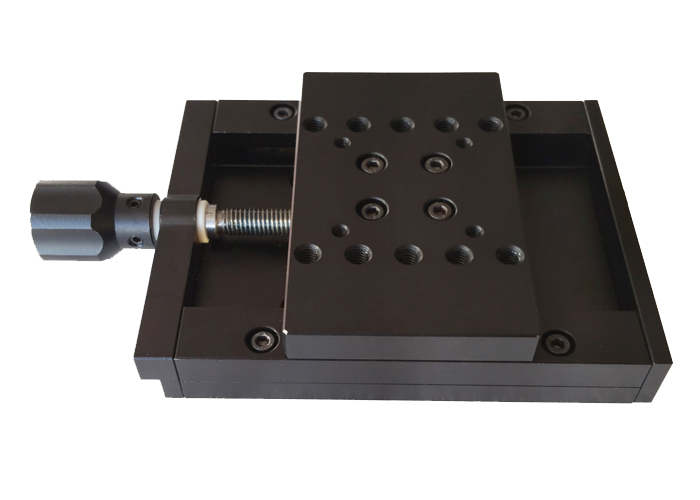

PT-SD102P

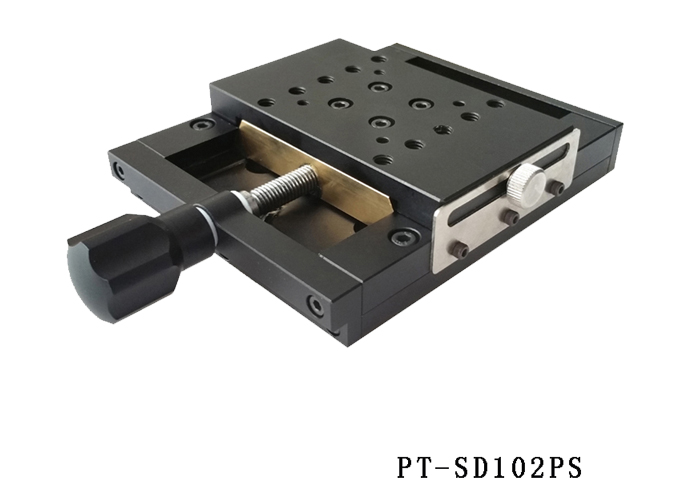

PT-SD102PS With locking function
Low-Profile Dovetail Linear Stages, 50mm Travel
Specifications
Item Number: PT-SD102P
Travel Range: 50mm
Actuator Type: Grinding Screw in Center
Travel Guide: Dovetail
Platform: 100mm × 60mm
Parallelism: 30μm
Straightness: 50μm
Driving Parallelism:40μm
Scale: 0.02mm
Adjust Distance: 5μm
Material – Finish: Aluminum Alloy - Black-Anodized
Load capacity: 12KgsWeight: 0.7kgs
