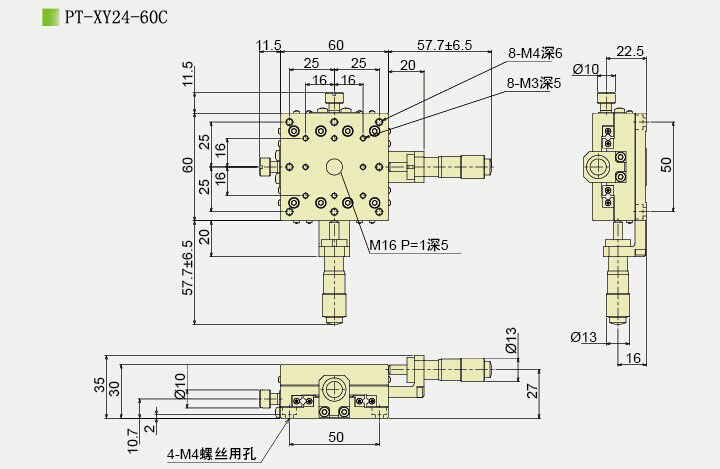

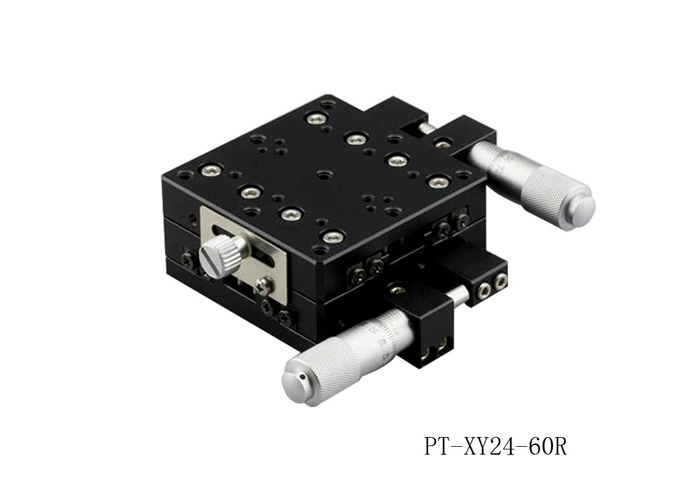

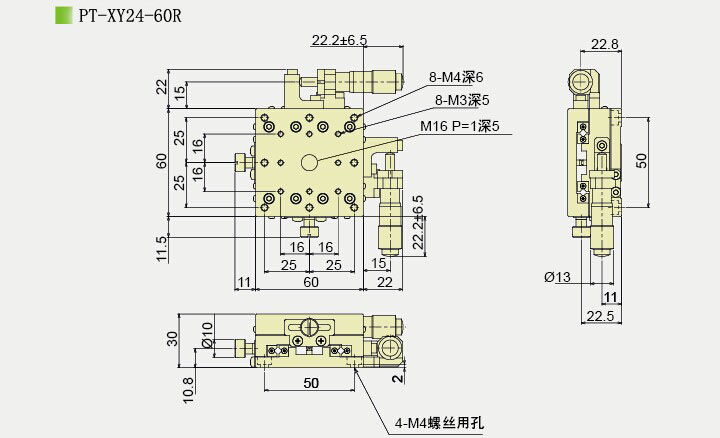

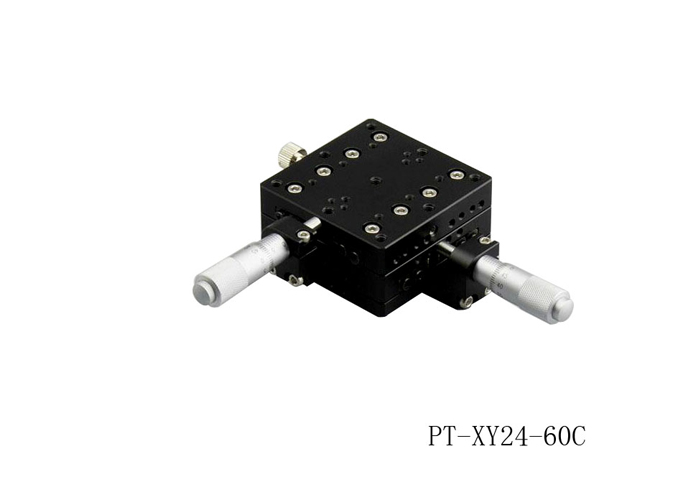

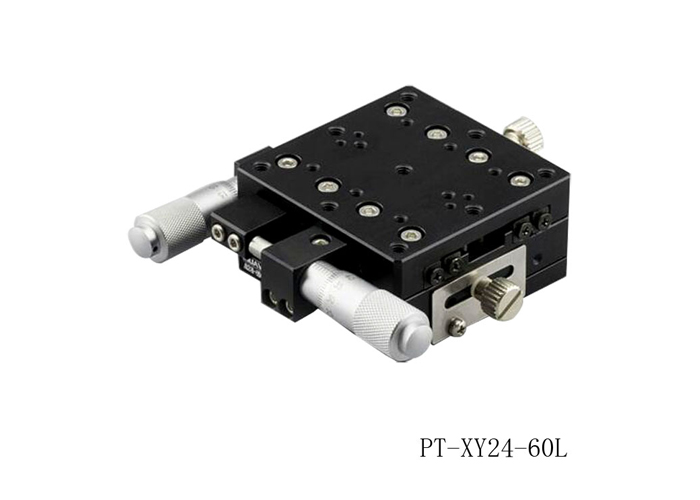

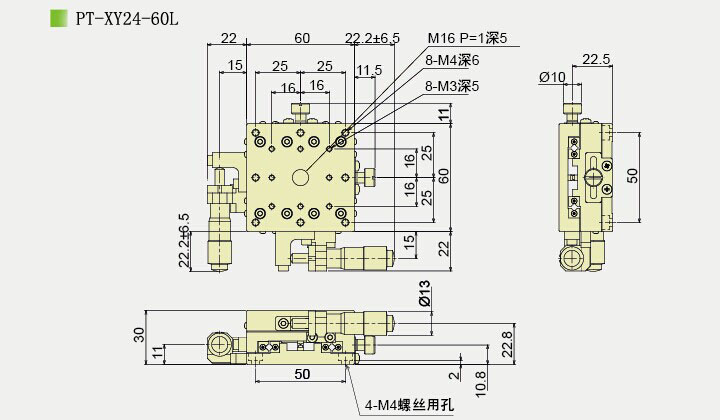

| Model Number | PT-XY24-60C | PT-XY24-60R | PT-XY24-60L | |
| Actuator Type | Micrometer Head | |||
| Operating Position | Center | Right | Left | |
| Least Count | 10μm/degree | |||
| Platform | 60×60mm | |||
| Travel Range | ±6.5mm | |||
| Travel Guide | Crossed Roller Bearing | |||
| Load Capacity | 3kgf(29.4N) | |||
| Moving Precision | Straightness | 3μm | ||
| Pitching | 40” | |||
| Yawing | 20” | |||
| Parallelism | 50μm | |||
| Driving Parallelism | 20μm | |||
| Weight | 0.4kg | |||
| Surface Material | Aluminum Alloy BLACK-Anodized | |||
PDV has many different specifications manual translation(linear) stage, including manual stage, linear stage, translation stage ,manual translation stage, Z axis lifting platform、Lab Jack、High-Load Vertical Stages, 360 degree rotation stage、Rotary Stage、Angle adjustment stage and so on .
