Product Name: PT-GD150 (50-500) Precise Electric Translating Platform

Share
Specification:

standard stepper motor and DB9 interface, choose to any controller according to requirement

The back of motorized stages has handwheel , it is for convenience for adjustment;

Standard hole is so easy for combine with other units, ensure convenience for multi-dimensional system;

Item NumberPT-GD150-50PT-GD150-100PT-GD150-150PT-GD150-200PT-GD150-300PT-GD150-400PT-GD150--500
StructureTravel Range50mm100mm150mm200mm300mm400mm500mm
Platform150mm × 150mm
Bearing ConstructionHigh Precise Recirculating Ball Screw (4mm of leading)High Precise Recirculating Ball Screw (5mm of leading)
Travel GuideHigh Precise Recirculating Ball Bearing Slides Guide
Stepper Motor (1.8°)42BYG/57BYG (Stepping Motor with 2-Phases & 1.8° of Step Angle)
MaterialAluminum Alloy - Black-Anodized
Load Capacity20kgs30Kgs50Kgs
Weight2.8kgs 3.4kgs4.5kgs5.2kgs6.3kgs7.2Kgs8.3Kgs
AccuracyDesign Resolution20μm/Pulse, Non-MS Driver                                                                                                                                         1μm/Pulse, 20MS Driver20μm Pulse, Non-MS Driver 1.25μm Pulse, 20MS Driver
Velocity40mm/sec50mm/sec
Repeatability1μm2μm
Absolute Accuracy3μm
Straightness3μm4μm5μm
Parallelization10μm15μm20μm
Pitching25"50"60"
Yawing20"25"30"
Backlash2μm
Lost Motion1μm2μm
OthersOptional AccessoriesBrake Function (-Z), Grating Scales (-G), Servo Motor (-D) and Dust-proof Cover (-F)



Product details:

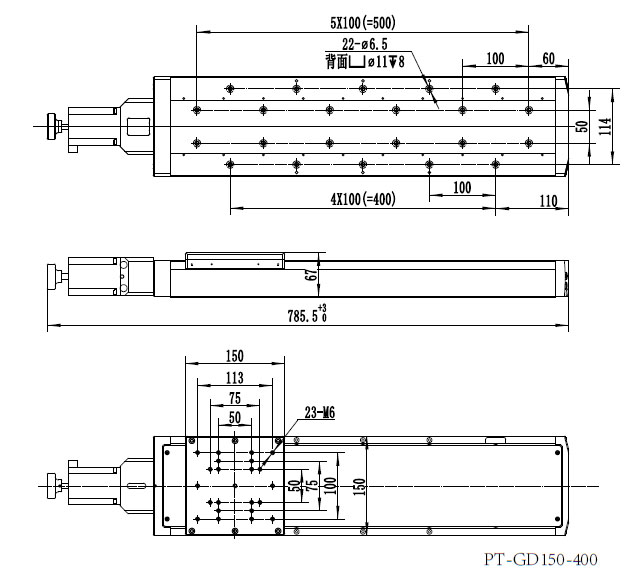

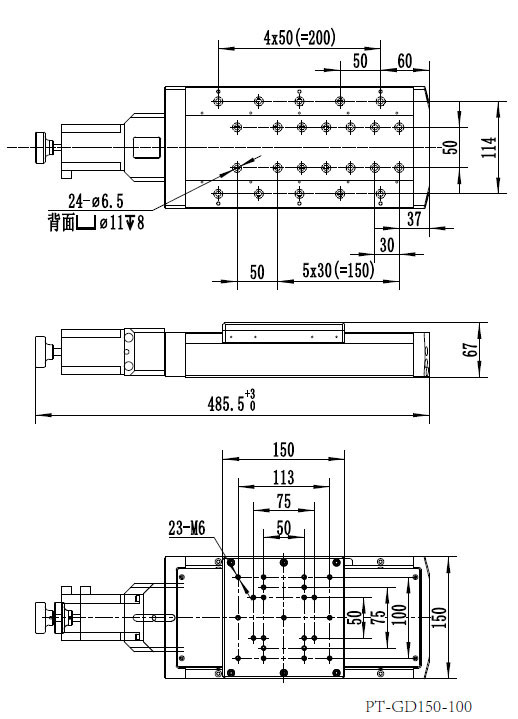

PT-GD150 (50-500) Precise Electric Translating Platform

PT-GD150 (50-500) Precise Electric Translating Platform

PT-GD150 (50-500) Precise Electric Translating Platform

PT-GD150 (50-500) Precise Electric Translating Platform

PT-GD150 (50-500) Precise Electric Translating Platform

Advantage:

We have Processing equipment: CNC 10 sets, Lathe 8 sets, milling machine 11 sets. We have a group of experienced high-level processing technicians. Our products are sent to the Metrology Institute for random inspection every year regularly and issue inspection report.

Have the industry leading level of the designer, can strictly grasp the product design and processing precision.

We have experienced and skilled assembly master.

Our products from the design concept, the processing technology, the assembly technology omni-directional control.Provide high quality products for users.

If our standard products do not meet your requirements, we can customize them according to your requirements.
