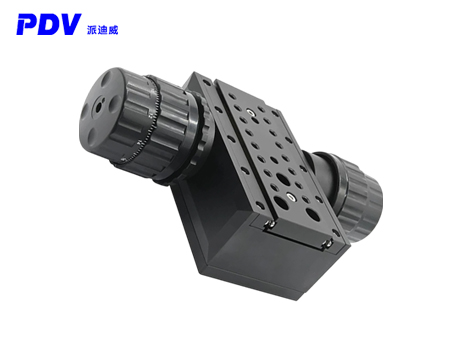

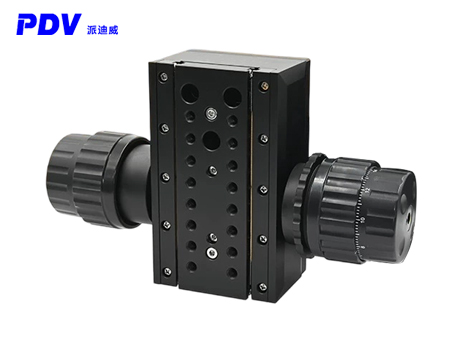

Characteristics of the focusing slide:
1. Achieve precise adjustment of the lifting and lowering of the microscopic lens;
2. The focusing handwheel has two adjustment methods: coarse focusing and fine focusing.
3. The damping gear can control and adjust the speed, which is used for fast or high-precision movement.
4. Lifting stroke: 40mm, resolution: 2μm;
5. The maximum load supported in the vertical direction is 10kg.
Do not use it horizontally in a flat position, as there may be a problem with the callback gap

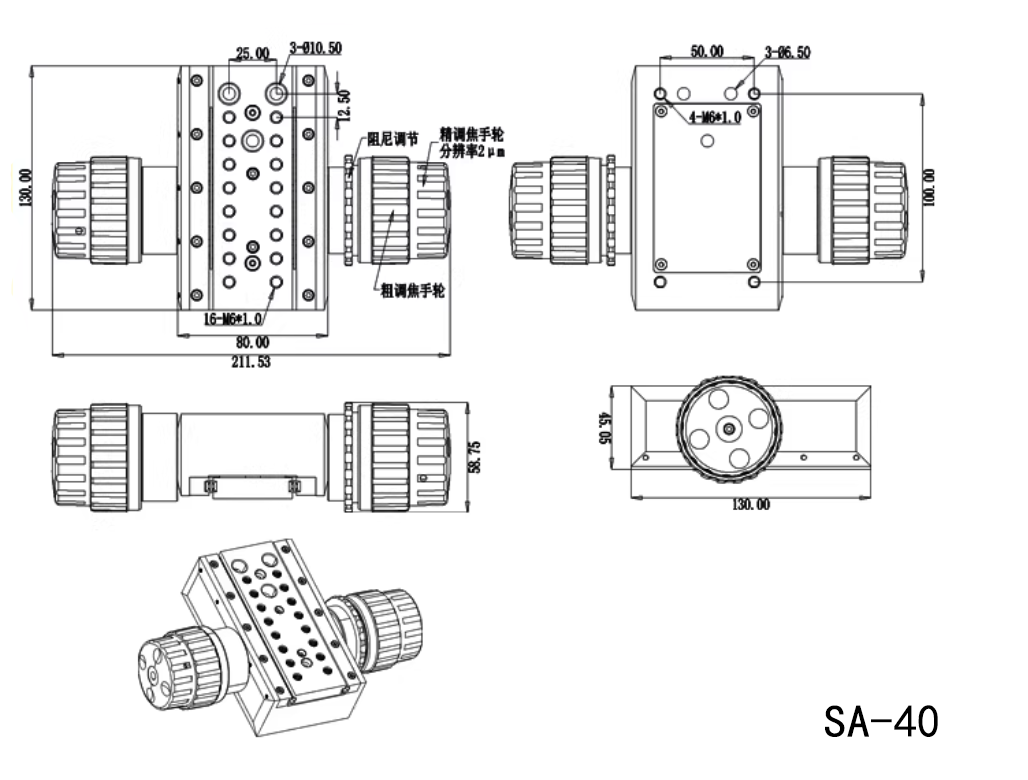

Parameters of the focusing slide:
| Model | SA-40 |
| Specification | 211.5*130*58.8mm |
| Lifting stroke | 40mm |
| Bearing capacity | 10kg |
| Thread type | Front panel: M6*16 holes and φ10.5mm*3 through holes |
| Weight | 1618.5g |
| Material | Aluminum alloy + stainless steel + plastic |

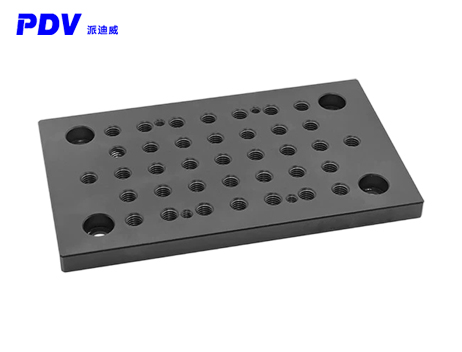

Characteristics of the adapter board:
1. Expanded the diversity of connections between the focusing handwheel and other systems;
2. It is suitable for use with 0.5-inch connecting rods and 66mm guide rail systems.
3. Multi-thread array;

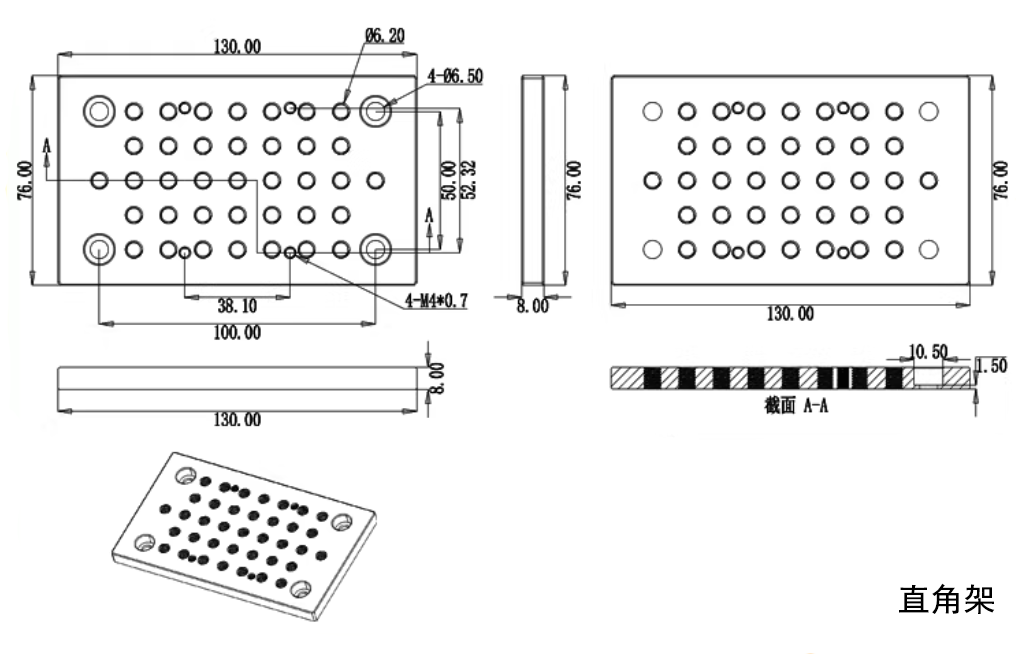

Adapter board parameters:
| Model | SA-GB40(Adapter board) |
| Specification | 130.0*76.0*8.0mm |
| Thread type | M4*4, M6*37, M6*4 (countersunk hole) |
| Weight | 185.0g |

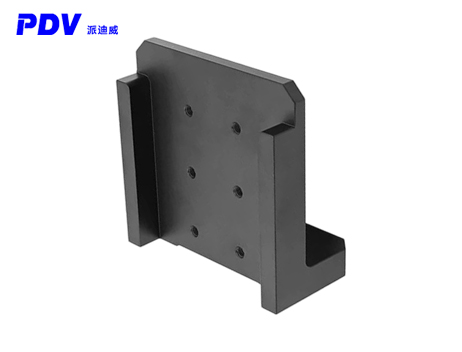

Characteristics of right-angle brackets：
1. Angle bracket;
2. Connect to the installation arm through the M4 screw hole;
3. Achieve the alignment and installation of the optical ports of the 95mm main body lifting slide.

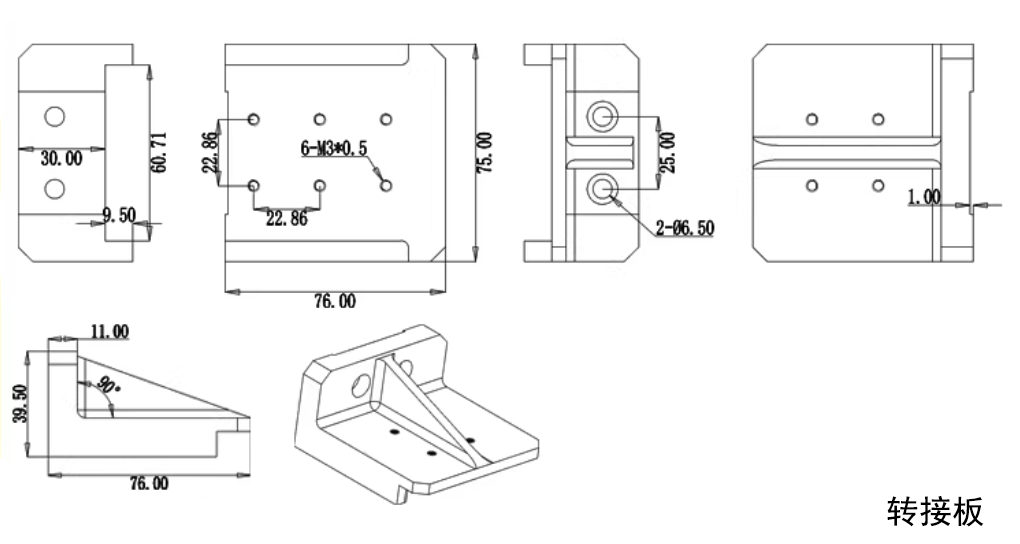

Right-angle bracket parameters：
| Model | SA-GZ40(Right-angle bracket) |
| Specification | 76.0*75.0*39.5mm |
| Thread type | M4*6 points, M6*2 points (countersunk holes) |
| Weight | 158.8g |
Product size：
