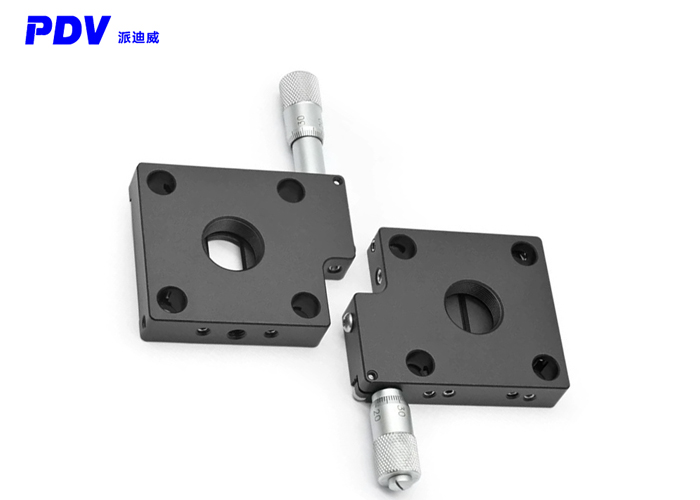

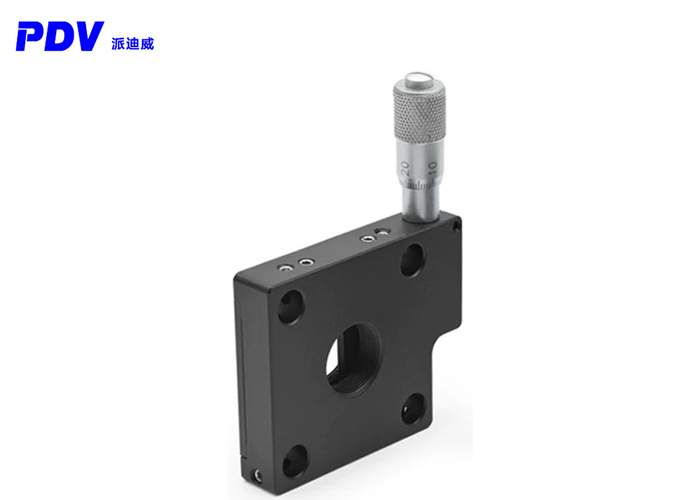

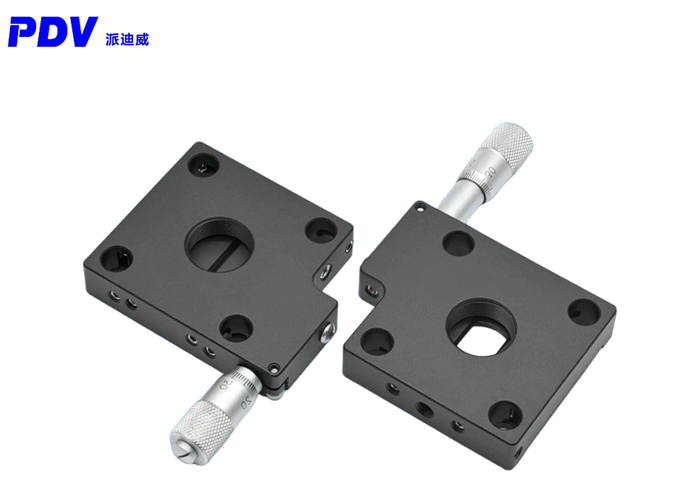

China The adjustable slit of the cage system is coaxial at 30mm, and the adjustable range of the cage is 0-6mm - ,factory,manufacturer - Fiber Alignment Stage, Fiber Fix, Fiber Coupler

Specification:

Product features：

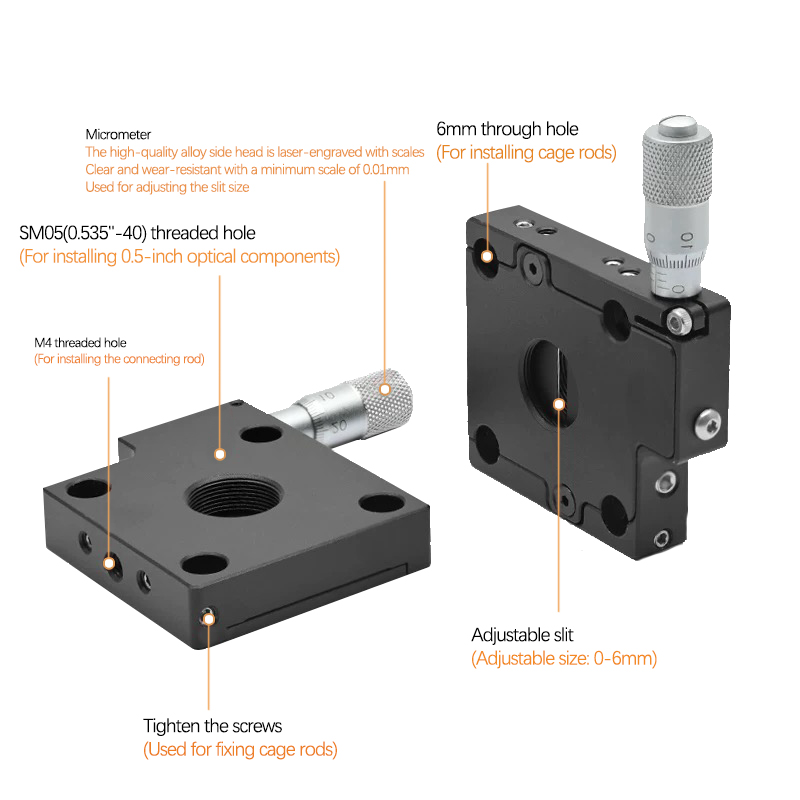

Compatible with 30mm cage systems in both vertical and horizontal directions

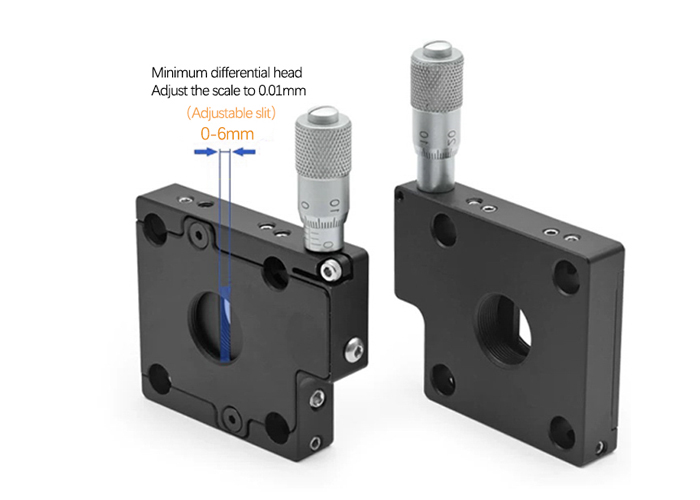

The differential head precisely adjusts the slit width

The slit is located at the center of the threaded hole of SM05

Slit width: 0 to 0.24 inches (0-6mm)

The connecting rod can be installed in the vertical direction

Cage system with variable slit 30mm cage system

Product parameters：

Model	PFT06-30
Adjustment range	0-6mm
Material	Aluminum alloy
Purpose	30mm cage system

Product details:

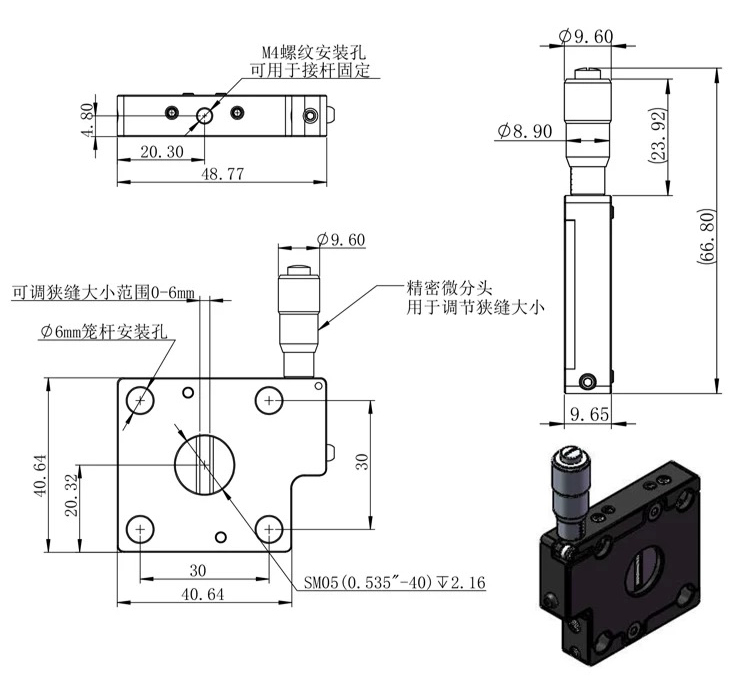

Product size：

Product details：

Service:

The adjustable slit of the cage system is coaxial at 30mm, and the adjustable range of the cage is 0-6mm

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
