Product Name: Iris Diaphragm Ring-Activated Threaded Iris Diaphragm Adjustable Optical Iris Diaphragm Lever-Actuated Iris D

Share
Specification:

Note: This diaphragm is measured manually with an error of about 0.3mm

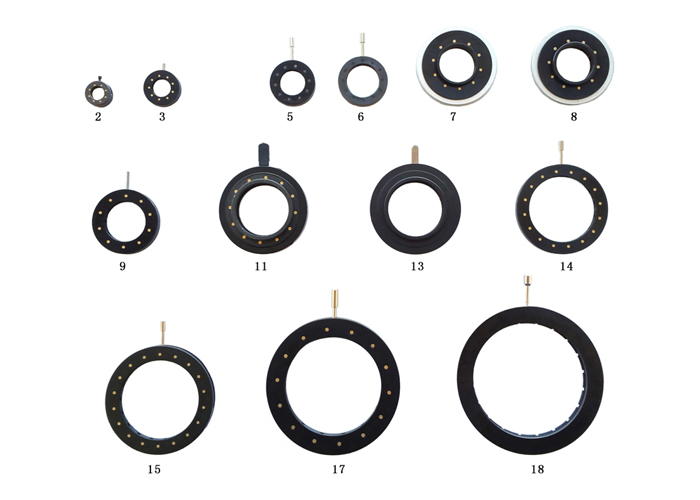

Aperture parameter summary table
Model
ApertureΦ(mm)Outside diameter(mm)Thickness(mm)BladesMaterialInstallation siteUnit price
ΦmaxΦminInnerAn outer ring (shell)
GL-16.80.922.54.56CopperCopperOuter $17.6
GL-27.50.81458CopperCopperOuter $12.8
GL-31012059AluminumAluminumOuter $12.8
GL-4121.219.8510AluminumAluminumOuter $12.8
GL-5141.225.55.510AluminumAluminumOuter $14.5
GL-6181.228512CopperCopperOuter $14.5
GL-720145610AluminumAluminumSide cone snails $16.0
GL-820145610AluminumAluminumThread Desk $28.0
GL-9221.236610AluminumAluminumOuter $23.2
GL-10282.549812SteelAluminumThread Desk $33.5
GL-1128249812SteelAluminumThread Desk $12.8
GL-12282497.512SteelAluminumOuter $11.2
GL-13301.650.5812AluminumAluminumThread Desk $12.8
GL-14361.850616AluminumAluminumOuter $12.8
GL-15422.5586.518AluminumAluminumOuter $16.0
GL-16523781314AluminumAluminumThread Desk $23.2
GL-17523738.414AluminumAluminumOuter $19.2
GL-18599781220AluminumAluminumOuter $33.5
GL-1912120510AluminumAluminumOuter $30.2
GL-20808.51051220AluminumAluminumOuter $102.5

Microscope iris diaphragm with Adjustable Aperture

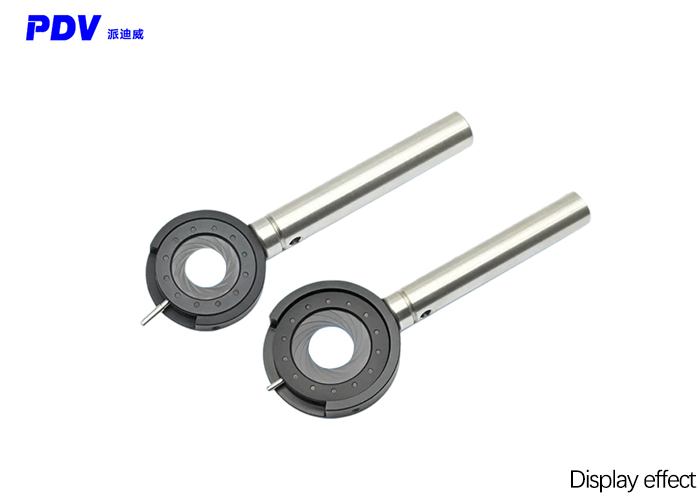

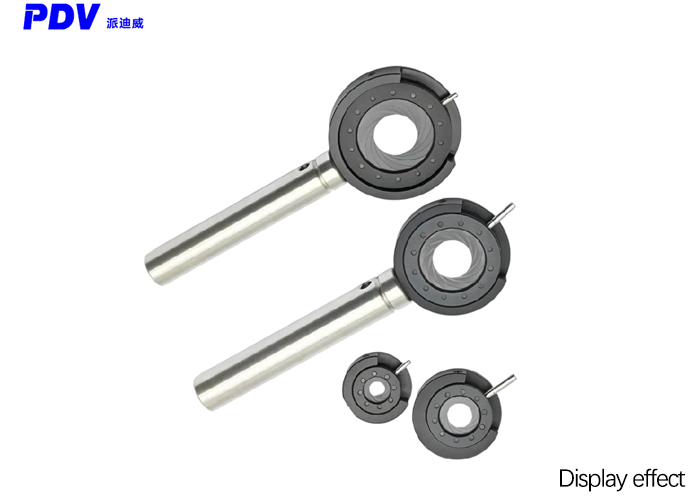

lab Adjustable Aperture optical bench iris Diaphragms

We can choose   iris diaphragms which apertures is continuous adjustable to realize. In optical experiments, we often need point light source or to control through light.

Iris Diaphragm Ring-Activated Threaded Iris Diaphragm Adjustable Optical Iris Diaphragm Lever-Actuated Iris Diaphgrams



Microscope iris diaphragm with Adjustable Aperture

lab Adjustable Aperture optical bench iris Diaphragms


Product details:
Advantage:

PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage.   They can be any combination, building block structure, can satisfy any scene usage requirement.

It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.

If our standard doesn't meet your needs, you can customize it.


Service:
Iris Diaphragm Ring-Activated Threaded Iris Diaphragm Adjustable Optical Iris Diaphragm Lever-Actuated Iris D
  • Iris Diaphragm Ring-Activated Threaded Iris Diaphragm Adjustable Optical Iris Diaphragm Lever-Actuated Iris D
  • Iris Diaphragm Ring-Activated Threaded Iris Diaphragm Adjustable Optical Iris Diaphragm Lever-Actuated Iris D
  • Iris Diaphragm Ring-Activated Threaded Iris Diaphragm Adjustable Optical Iris Diaphragm Lever-Actuated Iris D
  • Iris Diaphragm Ring-Activated Threaded Iris Diaphragm Adjustable Optical Iris Diaphragm Lever-Actuated Iris D
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Shipping:
We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.
Iris Diaphragm Ring-Activated Threaded Iris Diaphragm Adjustable Optical Iris Diaphragm Lever-Actuated Iris D
Iris Diaphragm Ring-Activated Threaded Iris Diaphragm Adjustable Optical Iris Diaphragm Lever-Actuated Iris D
FAQ:
Note:

    We are glad that you can cooperate with us.,As the journey is far away, please be sure to see the parameters or communicate with our sales when selecting the product, Avoid buying wrong products to delay your use..
