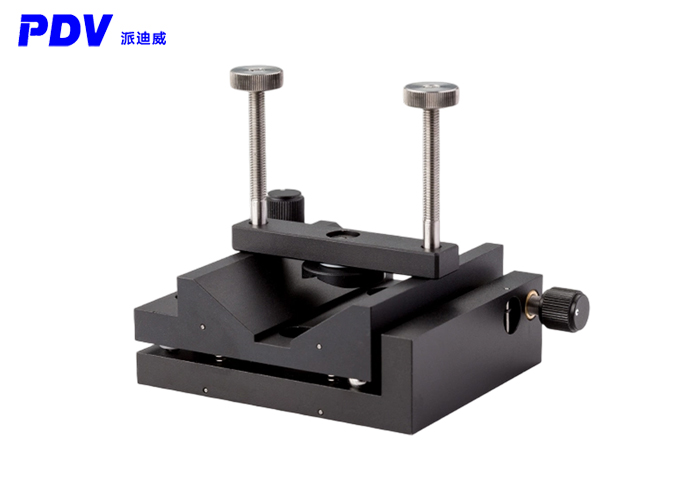

The PGG101M-2550 laser tube clamping frame can hold cylindrical lasers with diameters ranging from Φ25 to 50. The special V-shaped design at the top and bottom can firmly hold the laser and ensure that the outer surface of the laser is not damaged. The base can be adjusted for two-dimensional pitch and yaw, with an adjustment range of ±1.5°. There is an M6 threaded hole at the center of the base plate, which can be connected to the support rod. Additionally, there are two 50mm holes with a diameter of Φ6.5 countersunk holes, which can be fastened with M6 screws.
1、Adjust the pressure arm up and down by regulating the nuts on the two guide rods
2、It can hold cylindrical laser tubes with diameters ranging from Φ25 to 60mm or other components
3、It can be adjusted for pitch and yaw, with an adjustment range of ±1.5°
4、The base panel has M6 threaded holes and two Φ6.5mm countersunk holes with a hole spacing of 50mm
Product parameters：
| Model | PGG101M-2550 |
| Applicable component diameter | φ25-50mm |
| Pitch and yaw Angle | ±1.5° |
| Bottom thread | The center features M6 threaded holes and two 50mm countersunk holes with a diameter of Φ6.5 |
| Self-respect | 555g |

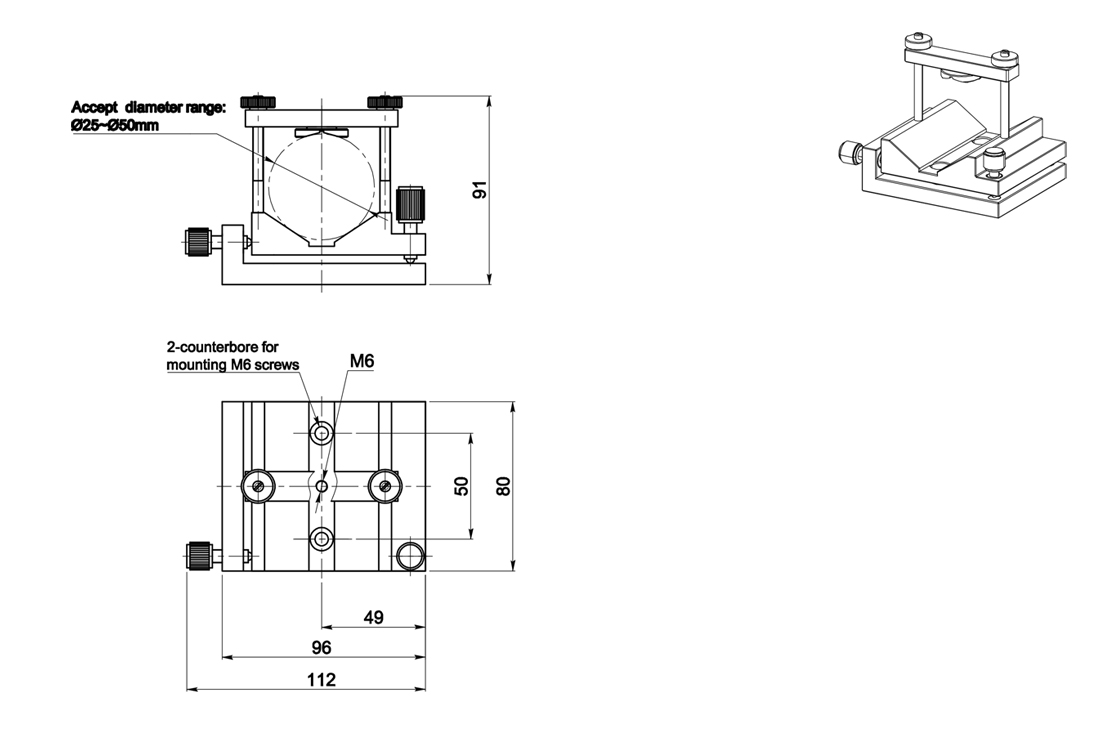

Product size：
