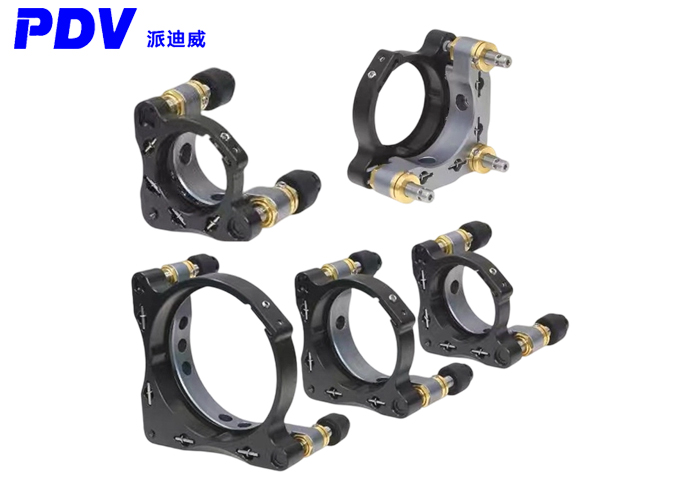

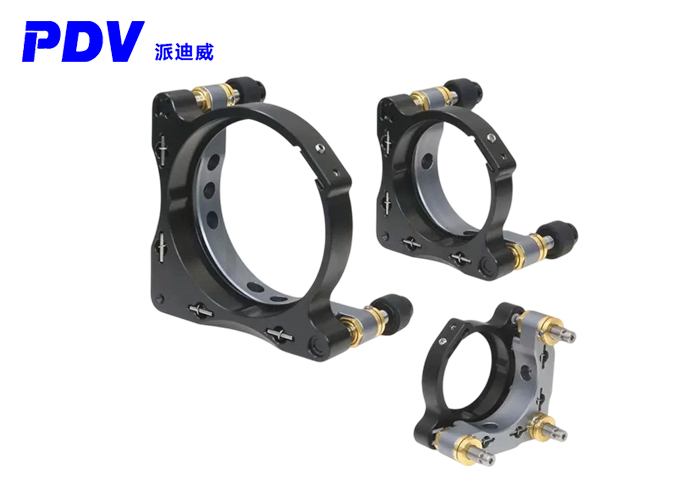

Product Features:
1- The overall body is made of aluminum alloy.
2- The surface is treated with black anodizing.
3- It has higher stability.

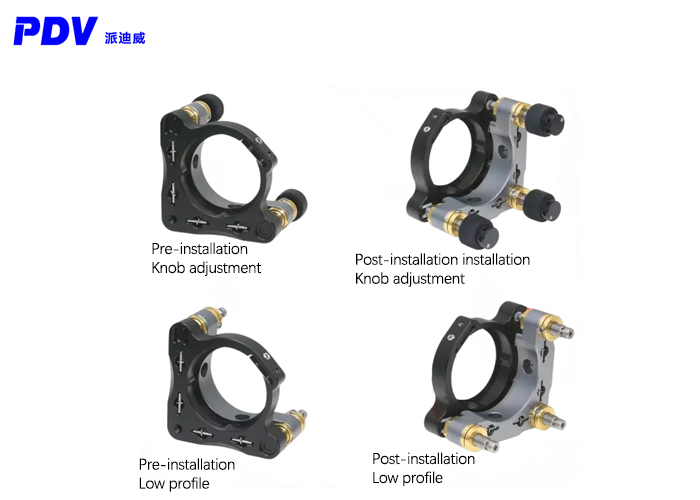

4- It offers two options for adjustment: knob adjustment and low-profile surface adjustment; the installation method can be either front-mounted or rear-mounted.

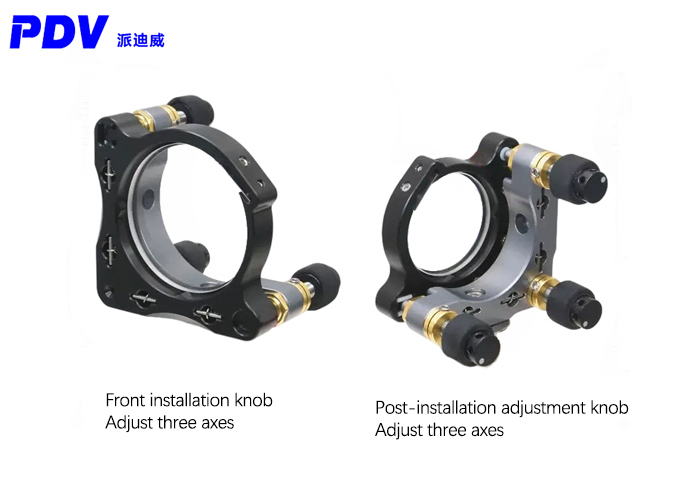

5- The adjustment axis is available in two or three axes.
6- Multiple installation diameters are available, including 12.7mm, 20mm, 1 inch, 30mm, 1.5 inches, 2 inches, 3 inches, and 4 inches for optical components.

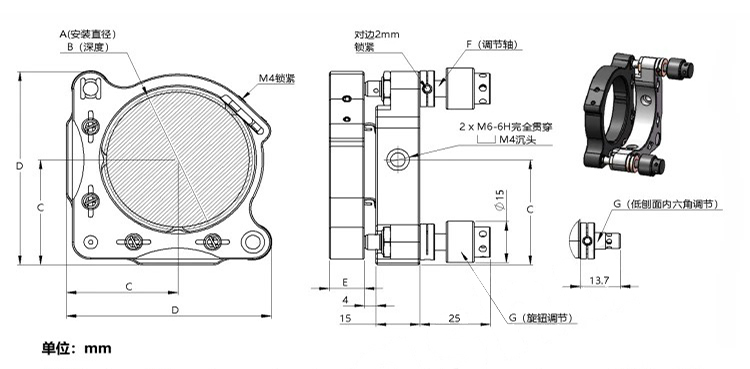

Product parameter dimensions:
| model | Installation method | A | B | C | D | E | F | G | weight(kg) |
| PGG-20-2 | Pre-installation | 20 | 6 | 25.4 | 50.8 | 8 | 2－M6X0.25 | Knob adjustment | 0.09 |
| PGG-20-3 | 3-M6X0.25 | Low profile | 0.11 | ||||||
| PGG－20-2D | 2－M6X0.25 | Knob adjustment | 0.09 | ||||||
| PGG-20-3D | 3－M6X0.25 | Low profile | 0.11 | ||||||
| PGG-20-2A | Post-installation installation | 2-M6X0.25 | Knob adjustment | 0.09 | |||||
| PGG-20－3A | 3－M6X0.25 | Low profile | 0.11 | ||||||
| PGG-20-2AD | 2－M6X0.25 | Knob adjustment | 0.09 | ||||||
| PGG-20-3AD | 3－M6X0.25 | Low profile | 0.11 | ||||||
| PGG-1-2 | Pre-installation | 25.4 | 2－M6X0.25 | Knob adjustment | 0.09 | ||||
| PGG-1-3 | 3-M6X0.25 | Low profile | 0.11 | ||||||
| PGG-1-2D | 2-M6X0.25 | Knob adjustment | 0.09 | ||||||
| PGG-1-3D | 3-M6X0.25 | Low profile | 0.11 | ||||||
| PGG－1－2A | Post-installation installation | 2－M6X0.25 | Knob adjustment | 0.09 | |||||
| PGG-1－3A | 3-M6X0.25 | Low profile | 0.11 | ||||||
| PGG-1-2AD | 2-M6X0.25 | Knob adjustment | 0.09 | ||||||
| PGG-1-3AD | 3-M6X0.25 | Low profile | 0.11 | ||||||
| PGG-30-2 | Pre-installation | 30 | 2－M6X0.25 | Knob adjustment | 0.09 | ||||
| PGG-30－3 | 3－M6X0.25 | Low profile | 0.11 | ||||||
| PGG-30-2D | 2－M6X0.25 | Knob adjustment | 0.09 | ||||||
| PGG-30-3D | 3－M6X0.25 | Low profile | 0.11 | ||||||
| PGG-30-2A | Post-installation installation | 2-M6X0.25 | Knob adjustment | 0.09 | |||||
| PGG-30－3A | 3－M6X0.25 | Low profile | 0.11 | ||||||
| PGG-30-2AD | 2－M6X0.25 | Knob adjustment | 0.09 | ||||||
| PGG-30-3AD | 3－M6X0.25 | Low profile | 0.11 | ||||||
| Knob adjustment | Pre-installation | 38.1 | 8 | 31.75 | 60 | 10 | 2-M6X0.25 | Knob adjustment | 0.12 |
| PGG-1.5-3 | 3－M6X0.25 | Low profile | 0.14 | ||||||
| PGG－1.5－2D | 2-M6X0.25 | Knob adjustment | 0.12 | ||||||
| PGG-1.5－3D | 3-M6X0.25 | Low profile | 0.14 | ||||||
| PGG-1.5-2A | Post-installation installation | 2-M6X0.25 | Knob adjustment | 0.12 | |||||
| PGG－1.5－3A | 3-M6X0.25 | Low profile | 0.14 | ||||||
| PGG-1.5-2AD | 2-M6X0.25 | Knob adjustment | 0.12 | ||||||
| PGG-1.5-3AD | 3-M6X0.25 | Low profile | 0.14 | ||||||
| PGG-2-2 | Pre-installation | 50.8 | 10 | 38.1 | 70 | 12 | 2－M6X0.25 | Knob adjustment | 0.14 |
| PGG-2-3 | 3－M6X0.25 | Low profile | 0.16 | ||||||
| PGG-2-2D | 2-M6X0.25 | Knob adjustment | 0.14 | ||||||
| PGG-2－3D | 3－M6X0.25 | Low profile | 0.16 | ||||||
| PGG-2-2A | Post-installation installation | 2-M6X0.25 | Knob adjustment | 0.14 | |||||
| PGG-2-3A | 3-M6X0.25 | Low profile | 0.16 | ||||||
| PGG-2-2AD | 2－M6X0.25 | Knob adjustment | 0.14 | ||||||
| PGG-2-3AD | 3-M6X0.25 | Low profile | 0.16 |

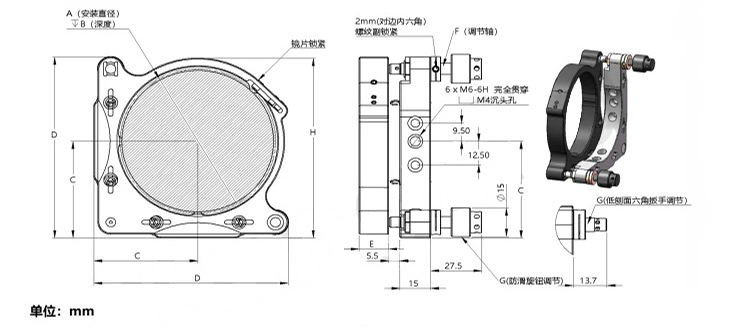

| model | Installation method | A | B | C | D | E | F | G | H | weight(kg) |
| PGG－3-2 | Pre-installation | 76.2 | 12.5 | 50.8 | 95 | 14.5 | 2-M6X0.25 | Knob adjustment | 94.4 | 0.22 |
| PGG－3－3 | 3-M6X0.25 | Low profile | 0.25 | |||||||
| PGG-3-2D | 2-M6X0.25 | Knob adjustment | 0.22 | |||||||
| PGG-3-3D | 3-M6X0.25 | Low profile | 0.25 | |||||||
| PGG-3-2A | Post-installation installation | 2-M6X0.25 | Knob adjustment | 0.22 | ||||||
| PGG-3-3A | 3-M6X0.25 | Low profile | 0.25 | |||||||
| PGG-3-2AD | 2-M6X0.25 | Knob adjustment | 0.22 | |||||||
| PGG-3-3AD | 3-M6X0.25 | Low profile | 0.25 | |||||||
| PGG-4-2 | Pre-installation | 101.6 | 16 | 63.5 | 110 | 18 | 2-M6X0.25 | Knob adjustment | 120.3 | 0.32 |
| PGG-4-3 | 3-M6X0.25 | Low profile | 0.35 | |||||||
| PGG-4-2D | 2-M6X0.25 | Knob adjustment | 0.32 | |||||||
| PGG-4-3D | 3-M6X0.25 | Low profile | 0.35 | |||||||
| PGG-4-2A | Post-installation installation | 2－M6X0.25 | Knob adjustment | 0.32 | ||||||
| PGG-4－3A | 3-M6X0.25 | Low profile | 0.35 | |||||||
| PGG-4－2AD | 2-M6X0.25 | Knob adjustment | 0.32 | |||||||
| PGG-4-3AD | 3-M6X0.25 | Low profile | 0.35 |
