Manual camber tilt table camera adjustment rack Large Angle ±45° Size 60×60 Supplier - Manual Goniometer Stage, Low Profile Goniometer Platfor, Manual Goniometer Stage Export

Specification:

Product parameters:

Model	PT-SD345	PT-SD330
Countertop size	60×60mm	40×40mm
Central height	15	15
Load	29.4N(3kgf)	29.4N(3kgf)
Maximum adjustable	±45°	±30°
Rotate once	≈2.37°	≈3.11°
Thickness	30mm	20mm
Weight	0.29kg	0.12kg
Material	Aluminum alloy	Aluminum alloy

Product details:

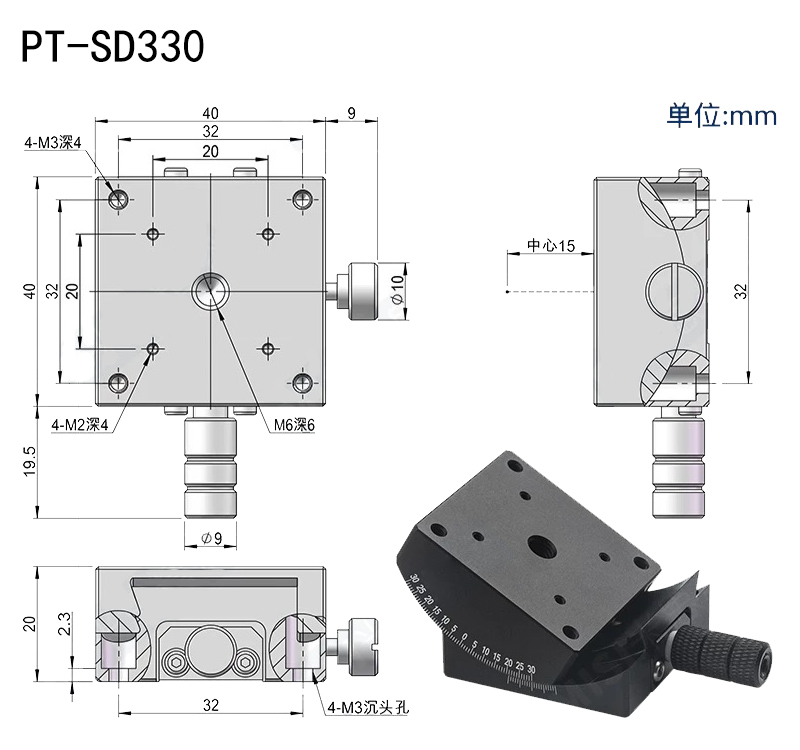

Product size:

Manual camber tilt table camera adjustment rack Large Angle ±45° Size 60×60

Service:

Manual camber tilt table camera adjustment rack Large Angle ±45° Size 60×60

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We are glad that you can cooperate with us. In order to save your time, when selecting products, please check the parameters or communicate with our sales team to avoid delaying your construction period due to the inconsistency between the parameters and your use requirements. We thank you again for your support.
