Specification:

Product parameters：

Model	PT-SD3166
Countertop size	160×160mm
Central height	97.5mm
Load	245N(25kgf)
Maximum adjustable	±20°
Rotate once	≈0.66°
Thickness	50mm
Weight	3.15kg
Material	Aluminum alloy

Product details:

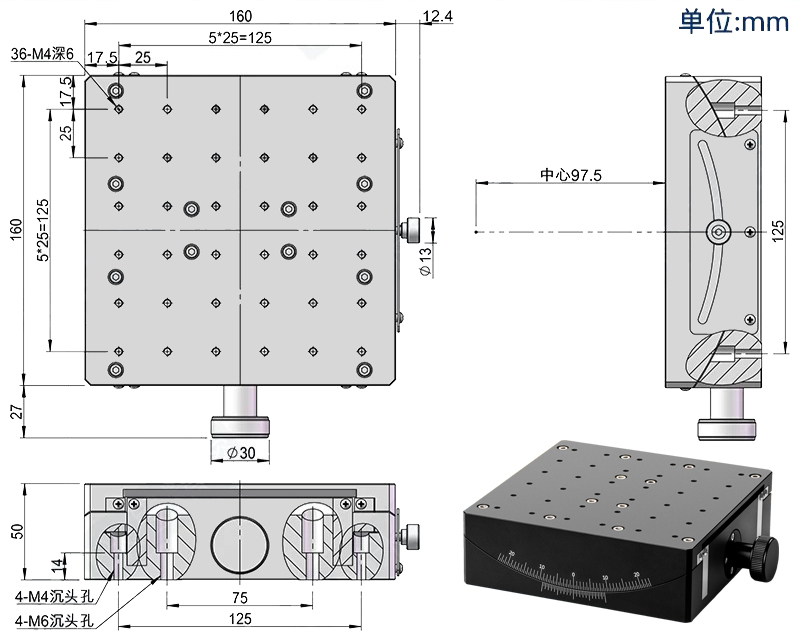

Product size：

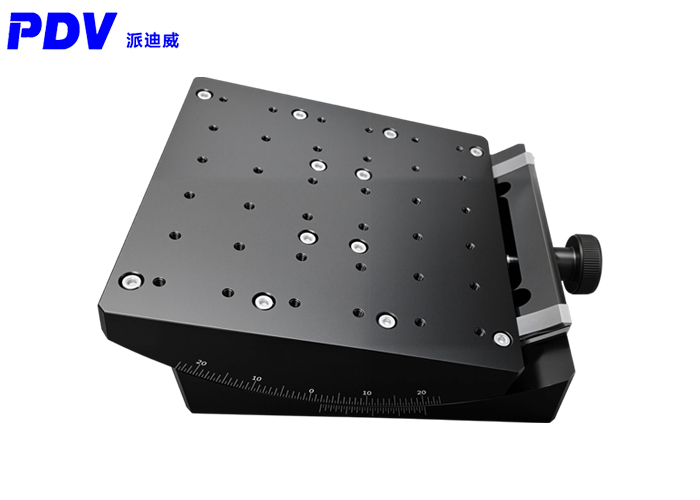

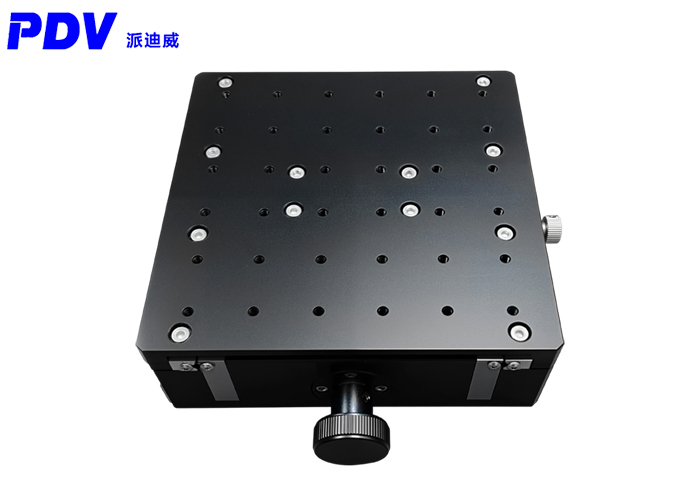

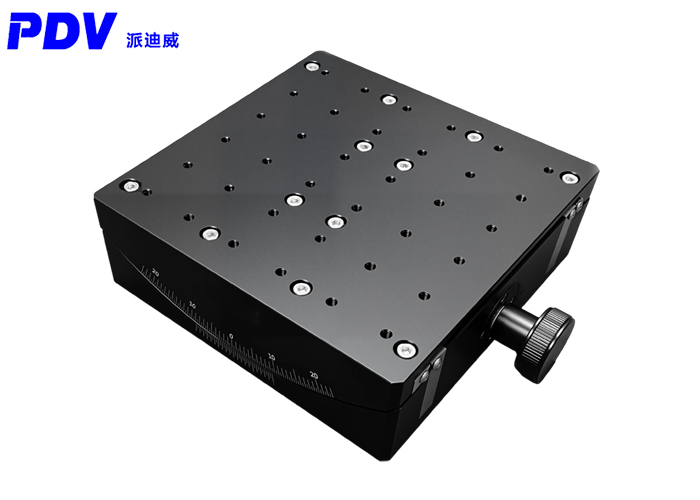

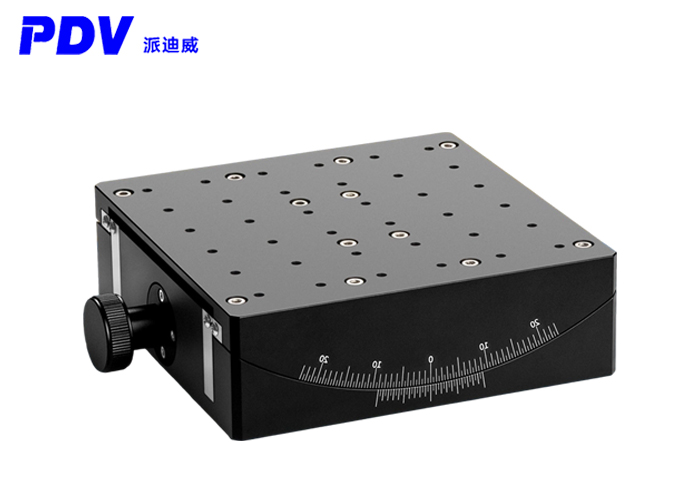

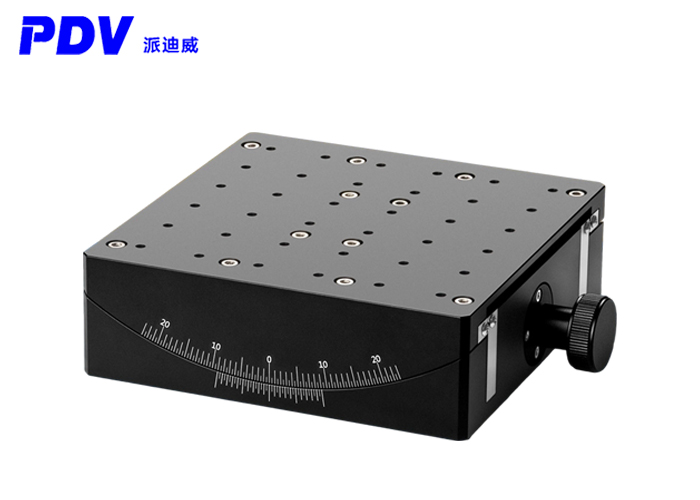

Manual corner position table, pitch table, positive and negative adjustment platform surface 160×160, Angle ±20 degrees

Service:

Manual corner position table, pitch table, positive and negative adjustment platform surface 160×160, Angle ±20 degrees

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

Shipping:

We can ship to you by UPS,FEDEX,DHL,TNT,EMS,other shipping terms can also be arranged according to specific requirements.

FAQ:

1 Q: Rotary table transmission ratio .180:1or 90:1 or 45:1

2 Q: The displacement table has a remote and proximal limit switch.

3 Q: If you need to add zero to the electric rotary table, please tell us that the standard product is not zero.

4 Q: Motor type: stepper motor. Step motor drive card is purchased separately.

stepper motor. Step motor drive card is purchased separately.

Note:

We'd be happy to have you working with us. In order to save your time, when choosing products, please check the parameters or communicate with our sales, to avoid the product you buy, because the parameters are not consistent with your use requirements, delay your construction schedule. We thank you again for your support.
